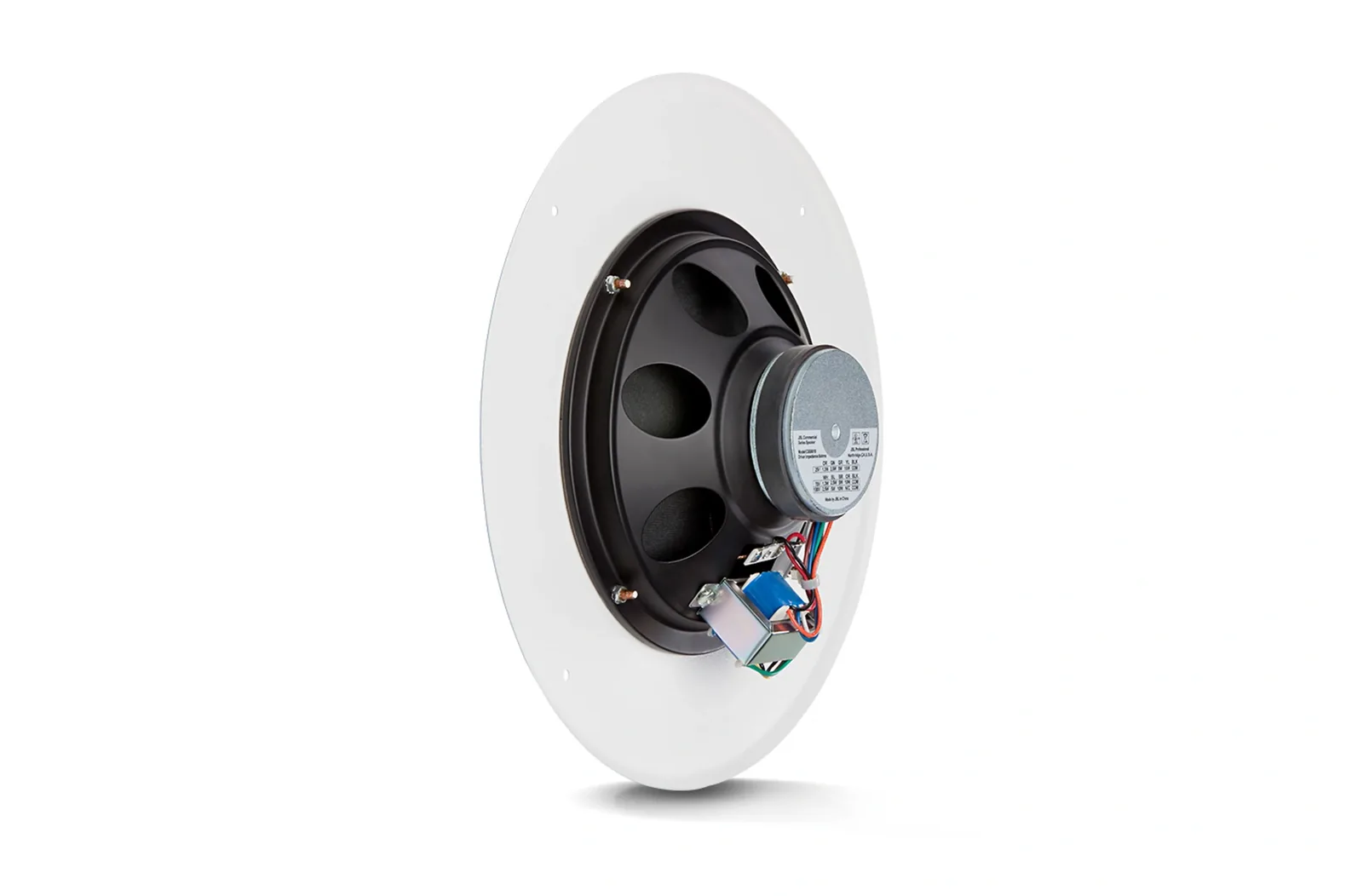

JBL CSS8018 200 mm (8 in) Commercial Series Ceiling Speakers

The CSS8018 are 200 mm (8 in) commercial series ceiling speakers, from JBL's Commercial Series installed range. Transducers are 200 mm (8 in) Full-Range. Nominal coverage is 110 degrees conical. JBL rates it at See transformer taps. Maximum SPL at 1 m is 103 dB (top 25V/70V/100V tap). Sensitivity is 97 dB (2k - 6k Hz).

Transformer taps are 100V Taps - 10W, 5W, 2.5W 70V Taps - 10W, 5W, 2.5W, 1.3W 25V Taps - 10W, 5W, 2.5W, 1.3W. Connections are Bare wire. Net weight is 1.58 kg (3.5 lb). In the box: 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
