JBL Professional JBL EON710 10-inch powered two-way loudspeaker

The EON710 is the 10-inch box in JBL's EON700 line: a 710G ferrite woofer and a 2414H compression driver on a redesigned horn, driven by 1,300 W peak of Class D amplification. Dispersion is 110 degrees horizontal by 60 degrees vertical, which is the widest pattern in the series and the reason this is the one people reach for when the room is short and wide.

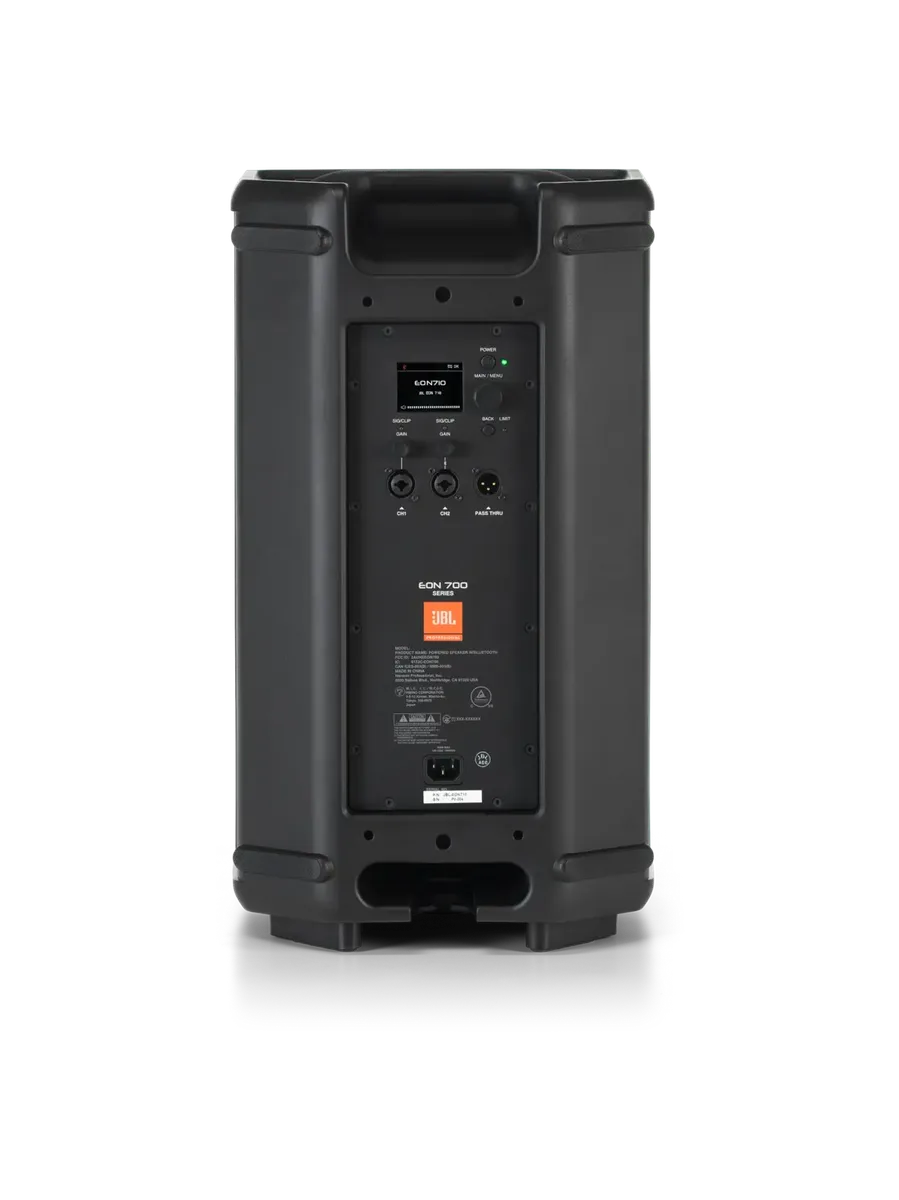

Everything is set from a backlit colour LCD on the rear panel or from the JBL Pro Connect app over Bluetooth: a 3-channel digital mixer, dbx DSP with Automatic Feedback Suppression, ducking, parametric EQ and up to 100 ms of speaker delay. The cabinet is talc-reinforced polypropylene with a steel grille, four M10 flying points, a 36 mm pole socket and yoke-bracket holes, and it weighs 26.5 lb.

Type	10-inch powered two-way loudspeaker
Amplifier power	1300 W peak / 650 W RMS
Maximum SPL	125 dB @ 1 m / 4 Pi
Frequency range (-10 dB)	52 Hz - 20 kHz
Frequency range (-3 dB)	65 Hz - 20 kHz
Coverage (H x V)	110 x 60 degrees
Transducers	710G 10-inch ferrite woofer; 2414H 1-inch compression driver
Crossover frequency	2 kHz
Inputs / outputs	2 XLR combo jacks, Bluetooth, 1 XLR-M thru
Cabinet	Polypropylene with 10% talc; 16-gauge perforated steel grille
Mounting	4 M10 suspension points, 36 mm pole socket, universal yoke bracket holes
Dimensions (H x W x D)	587 x 332 x 305 mm (23.11 x 13.07 x 12 in)
Net weight	12 kg (26.46 lb)
