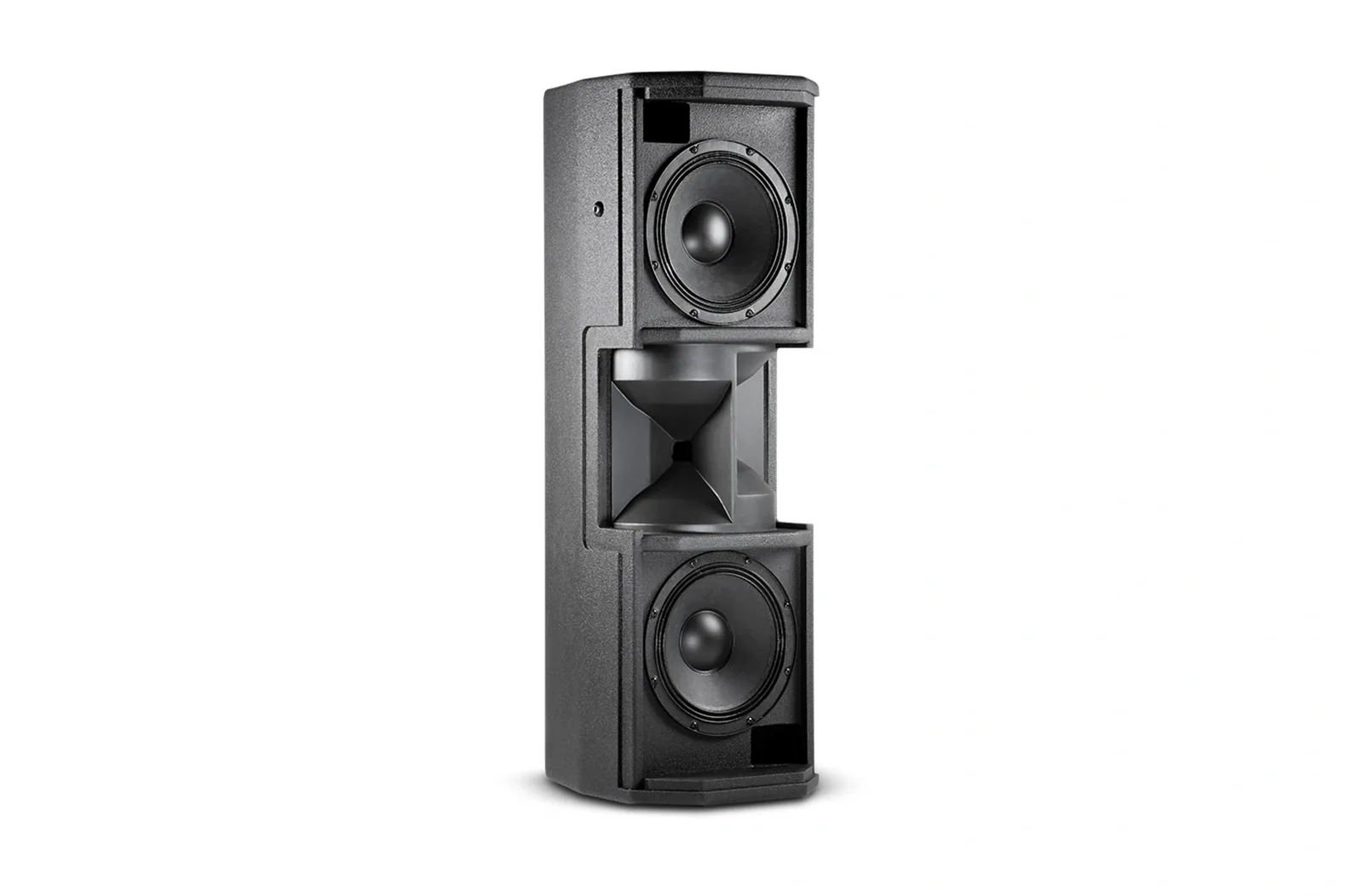

JBL CWT128 Dual 8" 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology

The CWT128 is a dual 8" 2-Way loudspeaker system featuring CWT crossfired waveguide technology. The low-frequency section uses 2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil. High frequencies come from 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil. Nominal coverage is 160 degrees x 60 degrees. Frequency range is 71 Hz - 20 kHz. JBL rates it at 850W/1700W/3400W Continuous/Program/Peak.

The enclosure is 12 mm and 15 mm exterior grade multi-ply hardwood plywood. Finish is Black DuraFlex finish. White (-WH) available upon request. Transformer taps are 70V: 110W, 55W, *28W 100V: 110W & 55W. Crossover: Passive. Rigging: 4 x M10 (1 x M10 points, one top, one bottom, plus 1 x M10 point on each side panel.) 4 x M8 rear for MultiMount MM-120-BT. Environmental rating: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
