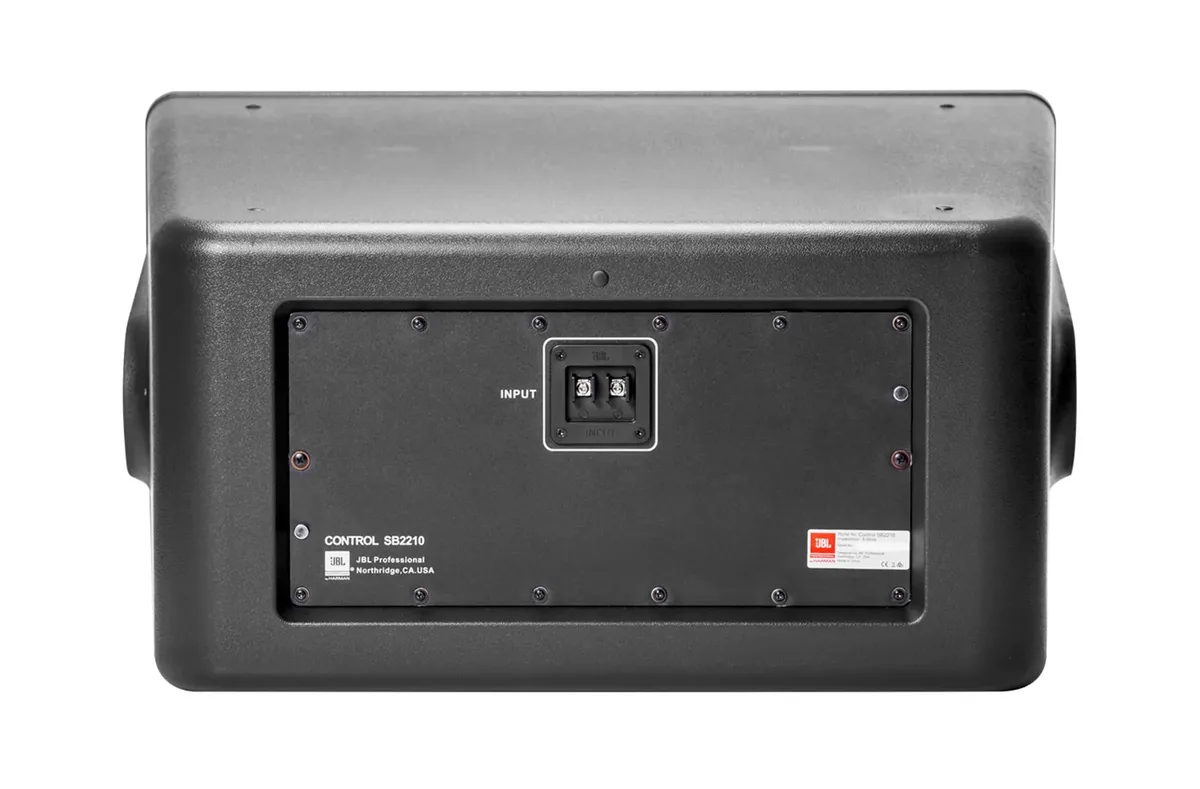

JBL Control SB2210 Dual 10" Compact Subwoofer
The Control SB2210 is a dual 10" compact subwoofer, from the Control Contractor installed range. Nominal coverage is Omnidirectional. Frequency range is 38 Hz - 500 Hz. JBL rates it at 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs). Maximum SPL at 1 m is 122 dB in half-space (2 loading). Nominal impedance is 8.
The enclosure is High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance. The grille is Thermoset composite coated steel, zinc-plated, 3-layer foam backing. It measures 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.). Net weight is 23.31 kg (51.4 lb). In the box: 1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers. Ordering covers Black and White; pick the one you need above and the SKU and price follow your choice.
| Type | Dual 10" Compact Subwoofer |
|---|---|
| Frequency Range (-10dB) | 38 Hz - 500 Hz |
| Frequency Response (-3 dB) | 48 Hz - 95 Hz |
| Power Rating | 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs) |
| Maximum Input Voltage | 60.0VRMS (2 hrs), 120V peak |
| Sensitivity | 95 dB, 1W @ 1m in half-space (2 loading, average 50 - 90 Hz) |
| Maximum SPL (1m) | 122 dB in half-space (2 loading) |
| Impedance | 8 |
| Minimum Impedance | 7.2 at 160 Hz |
