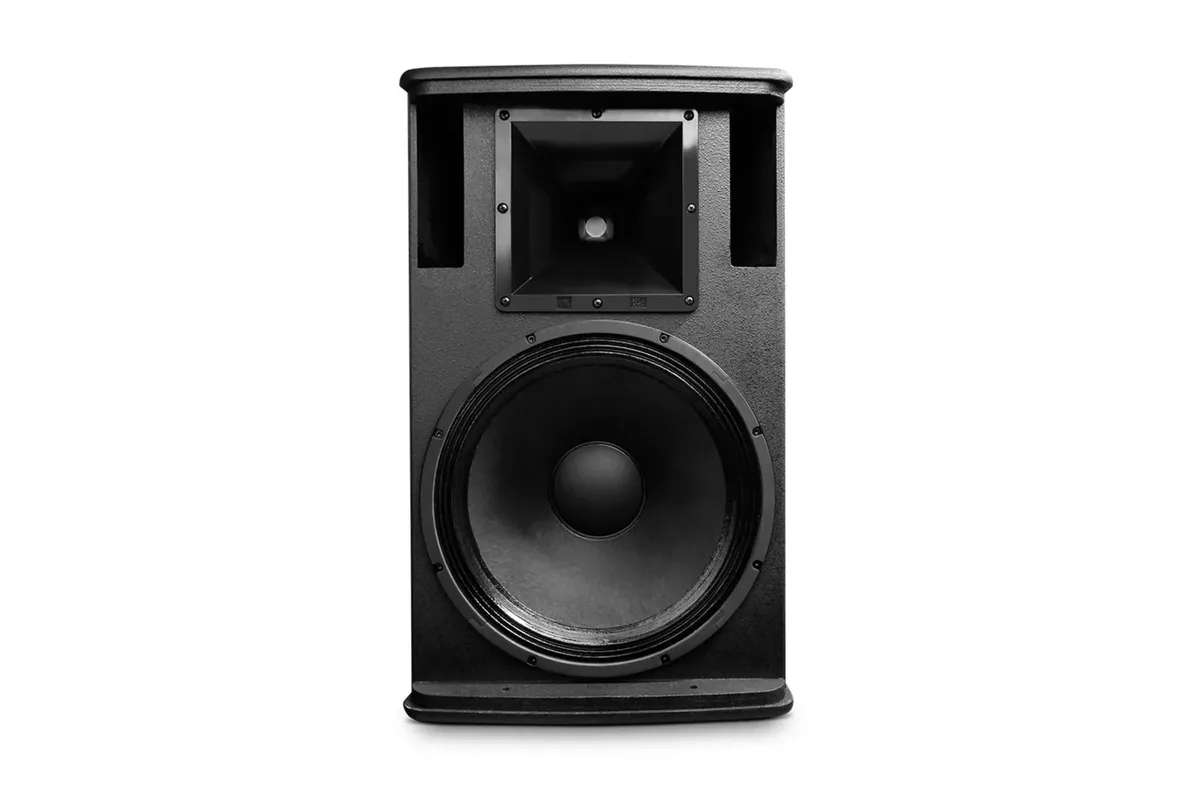

JBL AC566 15-inch 2-Way Speaker with 60 degrees x 60 degrees Horn

The AC566 is a 15-inch 2-Way speaker with 60 degrees x 60 degrees horn, part of JBL's AE Series installed range. The low-frequency section uses 1 x 15" woofer (P/N: 5053935), 384 mm (15 in) driver with 66 mm (2.5 in) voice-coil. High frequencies come from 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil. Nominal coverage is 60 degrees x 60 degrees (H x V). Frequency range is 60 Hz - 20 kHz. JBL rates it at 350W (1400W peak), 2 hrs (AES rated) 250W/500W/1000W (Continuous/Program/Peak) (IEC rated).

The enclosure is 15 mm multi-ply hardwood plywood. The grille is Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing. Finish is Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. Crossover: Passive. Connections are Dual Neutrik NL4MP connectors plus covered barrier trip terminals. Rigging: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket.
