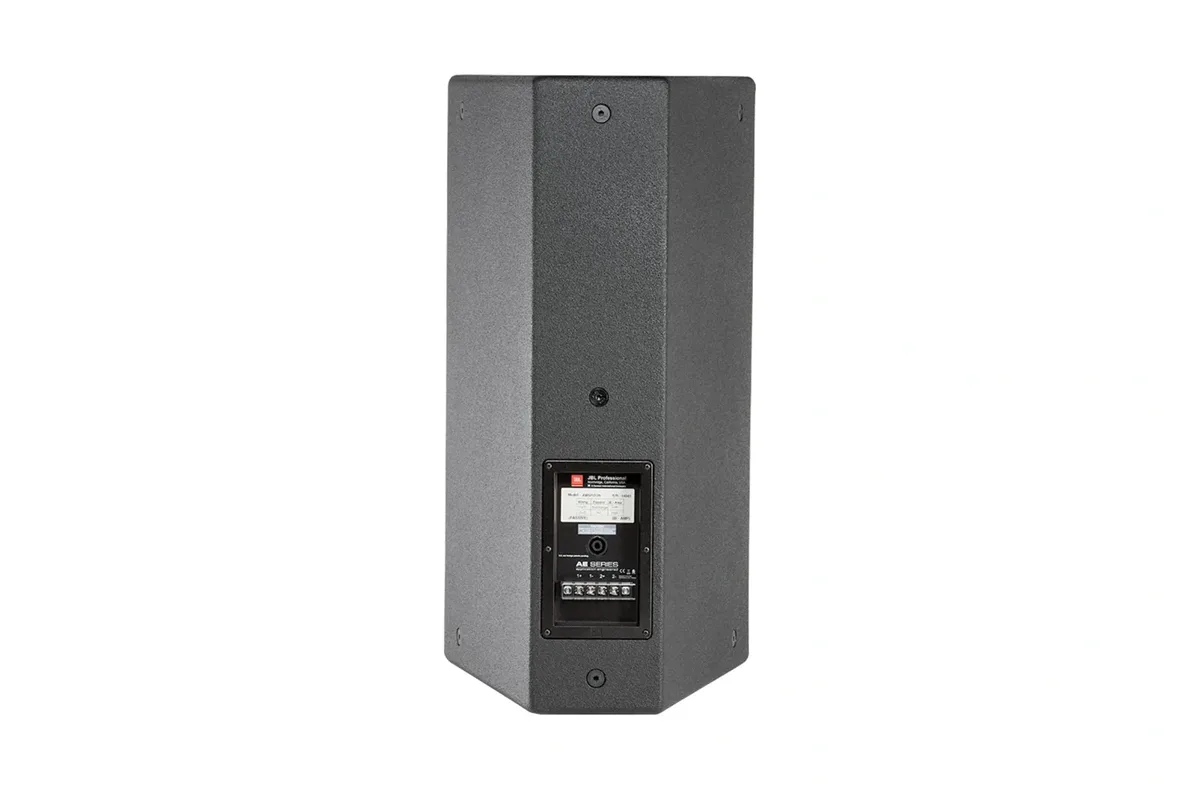

JBL AM5212/00 12-inch 2-Way Loudspeaker with 100 degrees x 100 degrees Horn

The AM5212/00 is a 12-inch 2-Way loudspeaker with 100 degrees x 100 degrees horn, part of JBL's AE Series installed range. The low-frequency section uses 1 x JBL 262H-1 300 mm (12 in ) driver with 50.8 mm (2 in) dual voice coil. High frequencies come from JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil. Nominal coverage is /64: 60 degrees x 40 degrees /66: 60 degrees x 60 degrees /95: 90 degrees x 50 degrees /00: 100 degrees x 100 degrees /26: 120 degrees x 60 degrees. Frequency range is 37 Hz - 20 kHz. JBL rates it at Passive mode: 300 W (1200 W peak), 100 hrs (IEC rated).

The enclosure is Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood. The grille is Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. Finish is Black DuraFlex finish. White available upon request. Crossover: Bi-amp/Passive switchable. Rigging: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware. Environmental rating: Mil-Std 810; IP-x3 per IEC529.
