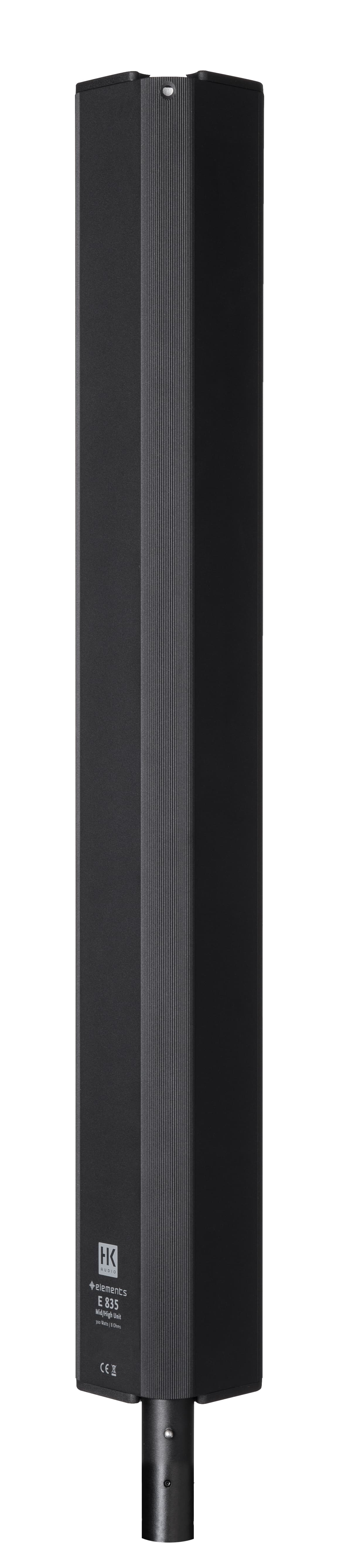

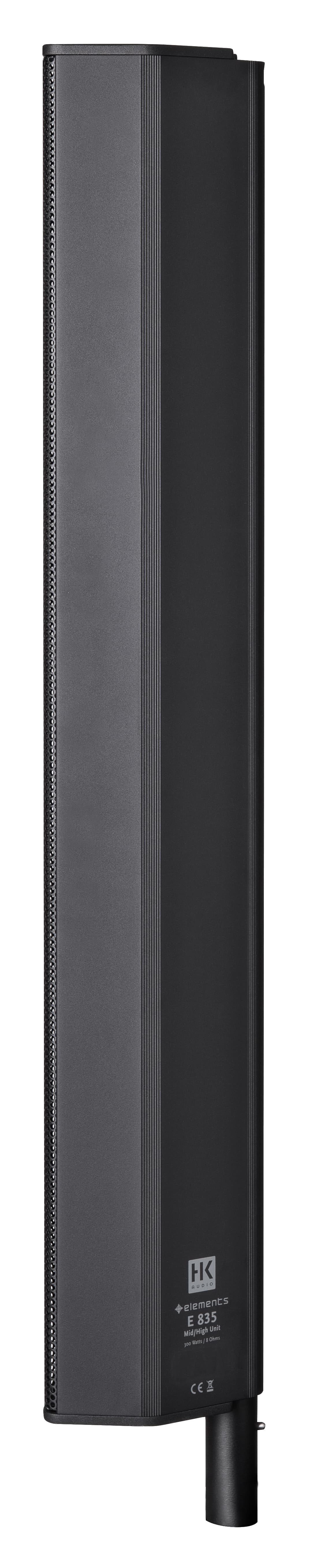

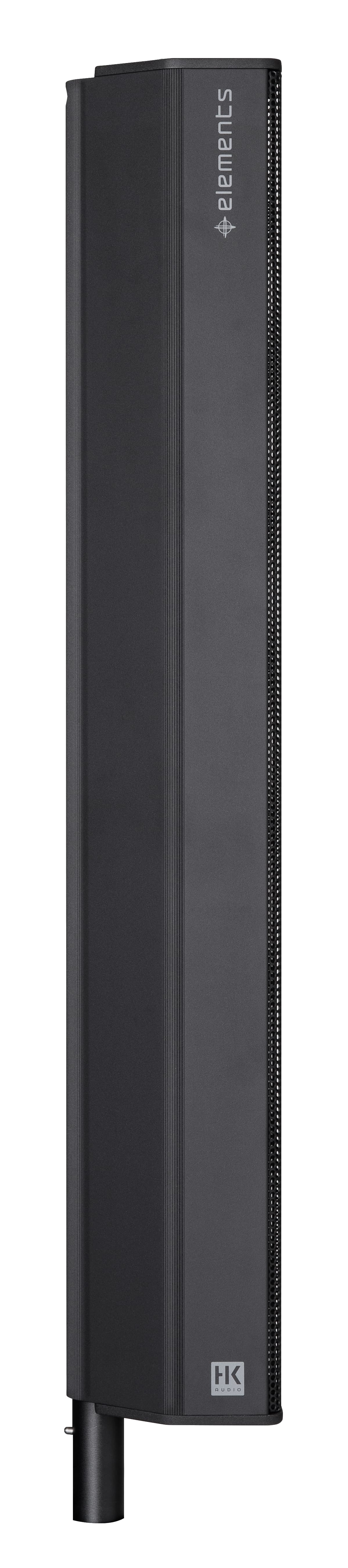

HK Audio ELEMENTS E835 Passive Column Loudspeaker
The ELEMENTS E835 is a passive broadband column loudspeaker built as a mid/high frequency unit for larger PA systems, using line-source technology for homogeneous directivity across a room. Eight 3.5-inch cone drivers handle 300 W RMS at 18 ohms with 100 dB sensitivity, reaching down to 140 Hz with a 70 degree horizontal pattern.
The cabinet is machined aluminum, finished in jet black, weighing just 9.9 pounds, and connects through HK Audio's E-Connect system with a parallel output for chaining additional Elements modules. It is designed to expand into wider line-source arrays for installations that need broad, even coverage without heavy mechanical rigging.
| Power Handling | 300 W RMS |
|---|---|
| Impedance | 18 ohms |
| Sensitivity | 100 dB (1W/1m) |
| Frequency Range | 140 Hz - 20 kHz (-10 dB) |
| Dispersion | 70 degrees horizontal (-6 dB) |
| Drivers | 8 x 3.5 inch cone speakers |
| Cabinet | Machined aluminum, jet black (RAL 9005) |
| Connections / Weight | E-Connect in/parallel out / 4.5 kg (9.9 lb) |
| Order Code | ELEM-E835-U |
