HK Audio FINEO FO 10 Passive 10 inch Install Speaker

The FINEO FO 10 puts a 10-inch Sica woofer on a 2-inch voice coil under the same rotatable constant directivity horn used across the range, loaded with a 1-inch Sica compression driver. The result is an 80 by 60 degree full-range box that holds pattern control down to the crossover at 2.9 kHz, so speech stays intelligible in rooms where a wider cabinet would light up the reflections.

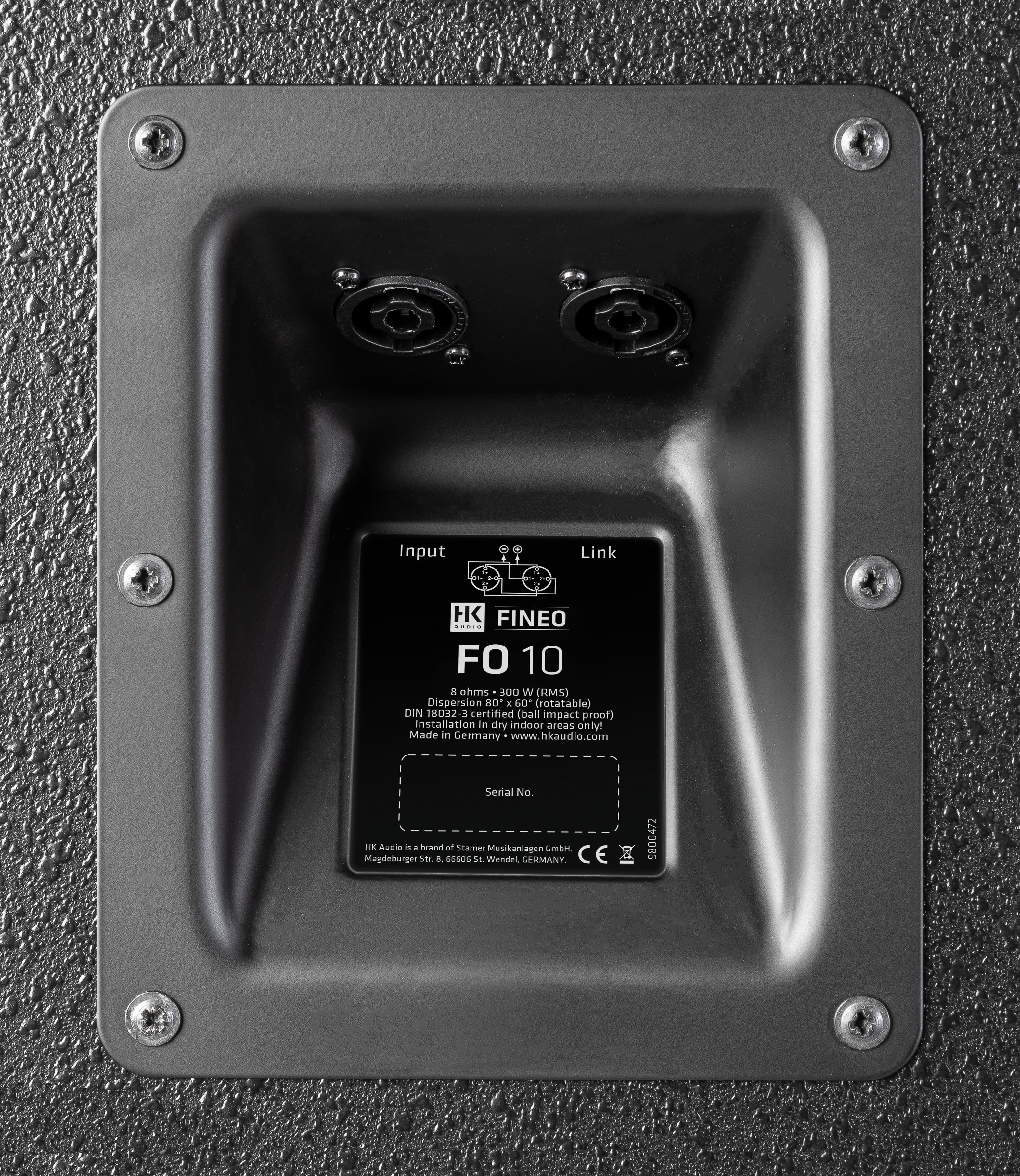

It takes 300 W RMS at 8 ohms and produces 123 dB peak with response from 71 Hz, which covers most background music and paging work without a subwoofer. NL4 Speakon in and parallel out are pinned 1+/- with 2+/- looped through for daisy chains. Rigging is 2 x M8 on the side, 2 x M8 top and bottom, 1 x M8 on the back and a VESA MIS-D 100 x 100 mm pattern. The MDF cabinet is finished in acrylic enamel with a coated steel grille and weighs 33.5 pounds.
