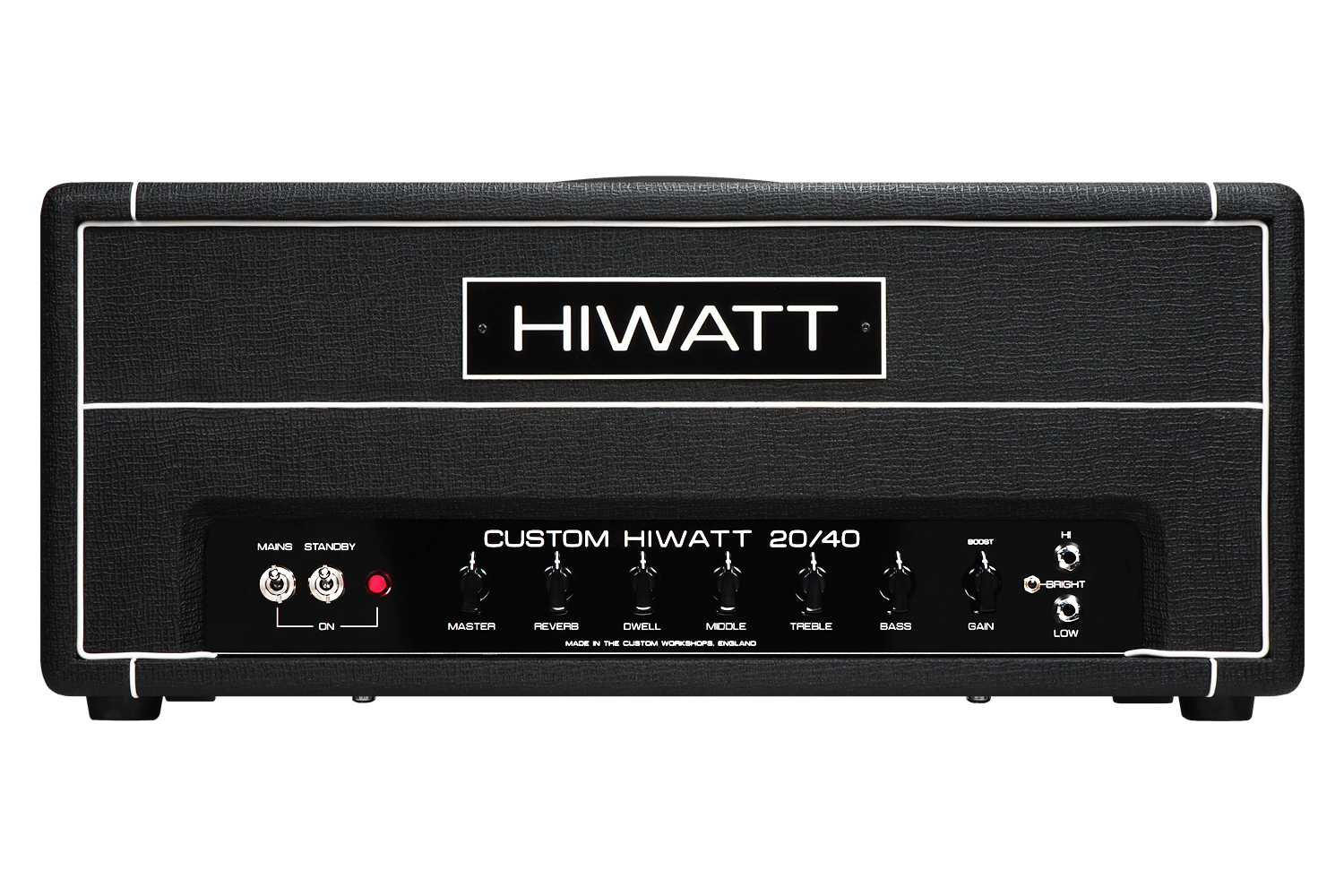

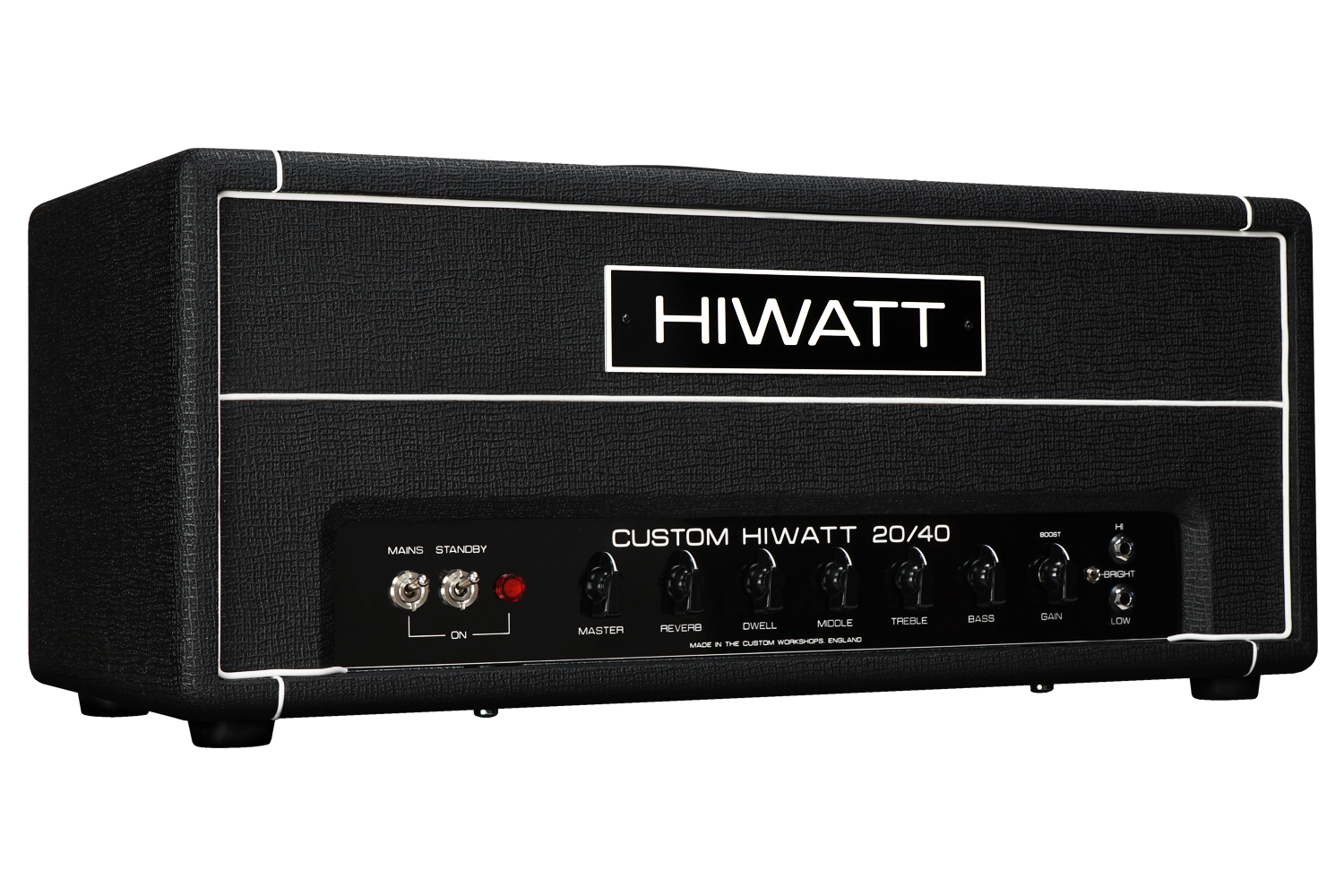

Hiwatt Studio/Stage Head

The Studio/Stage head is the SS20/40 without a cabinet: a quartet of EL84s making 40 watts in Stage mode and just over 20 in Studio mode through smart power scaling, aimed at session players who want range without a page of options.

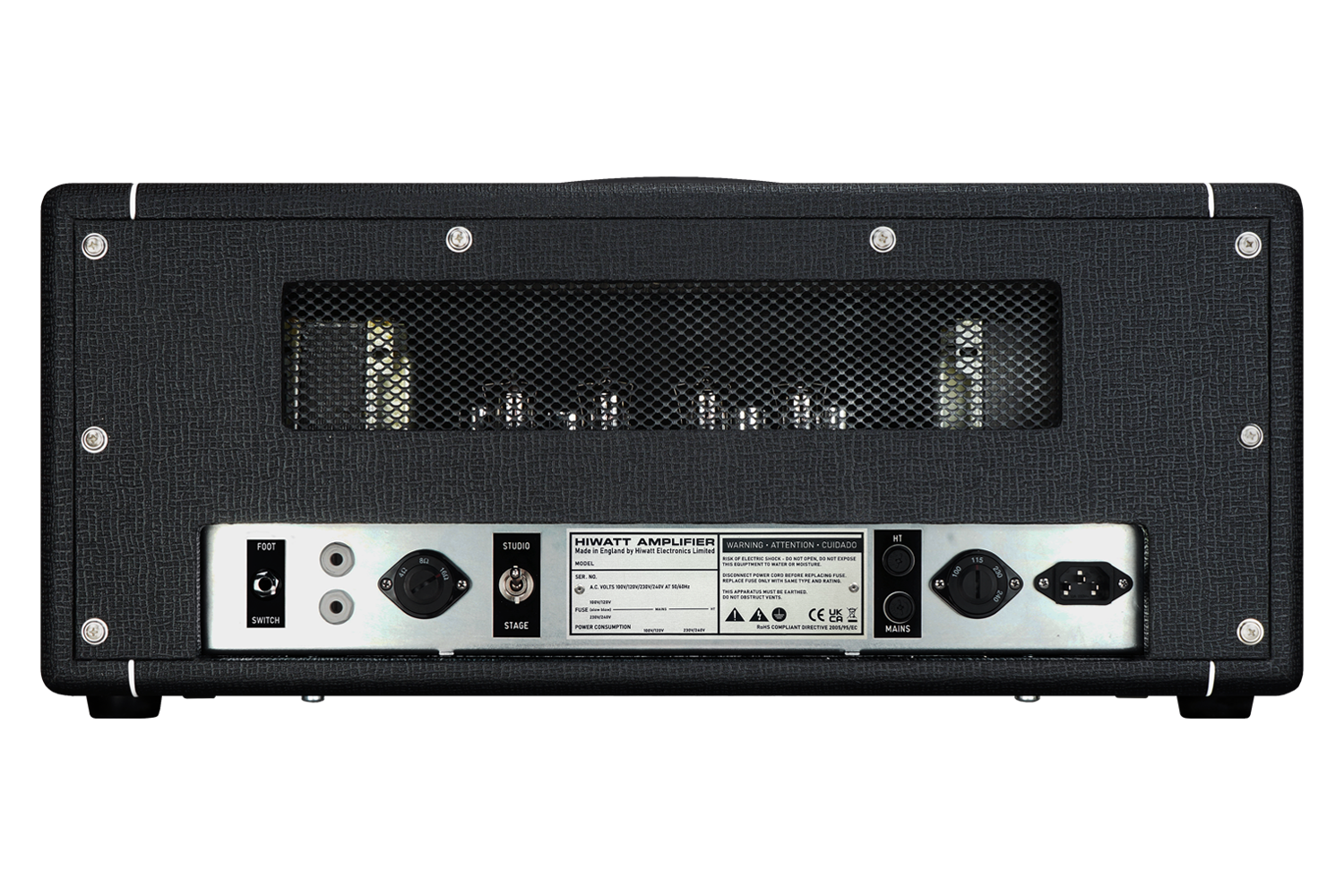

High and low impedance inputs set the gain response, with low suiting high-output pickups or anyone wanting less preamp compression. A Bright switch works across both inputs and the Boost, on a push-pull gain pot, is footswitchable. The spring reverb tank has its own Dwell and Level controls, and the rear panel selects 4, 8 or 16 ohms.

Wattage	Switchable - 40W or 20W
Inputs	Hi; Low
Output	2 x 1/4" Speaker Out
Preamp Valves	3 x ECC83 (12AX7), 1 x ECC81 (12AT7)
Output Valves	4 x EL84
Controls	Master Volume; Reverb Level; Reverb Dwell; 3-Band EQ - Bass, Treble, Middle; Gain (Pull Potentiometer for Boost); Bright Switch; Standby - On/Off; Mains - On/Off
Impedance	Switchable using Impedance Selector on the rear panel - 4 Ω, 8 Ω, or 16 Ω
Reverb	Onboard spring tank with Dwell and Level controls
