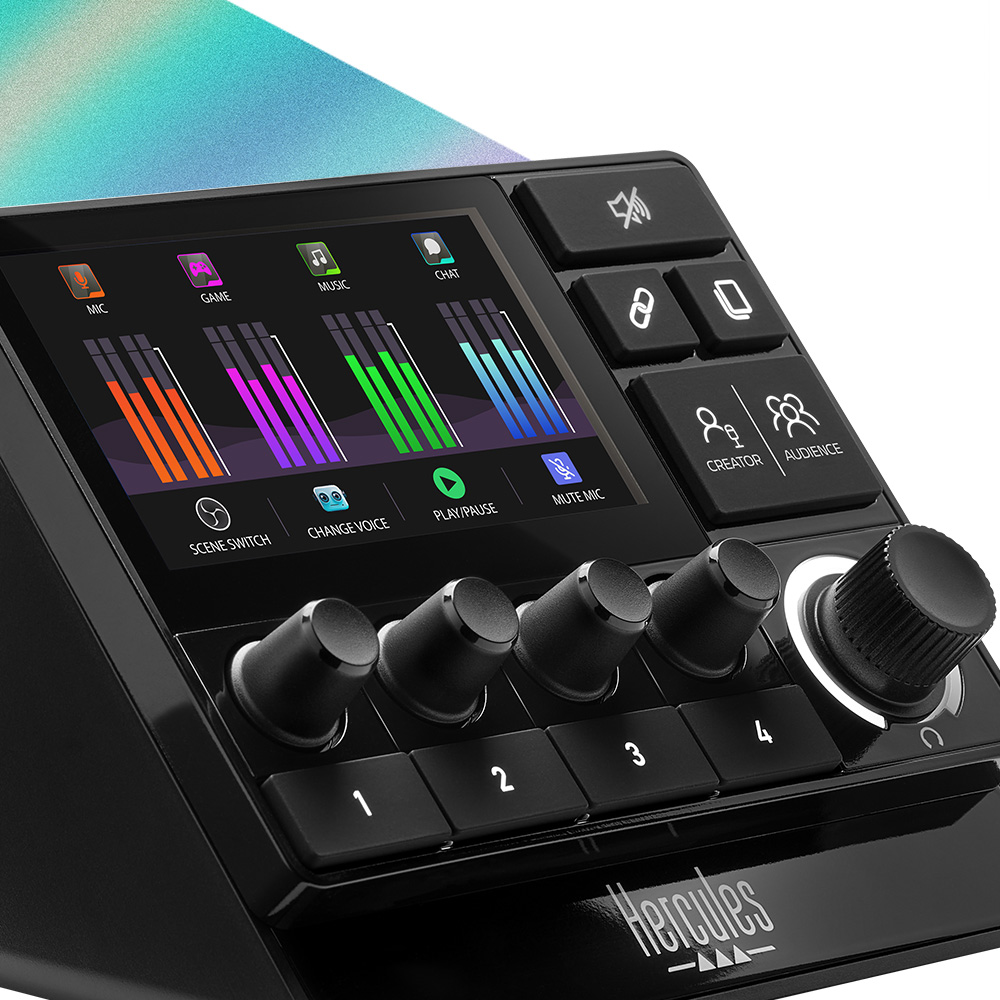

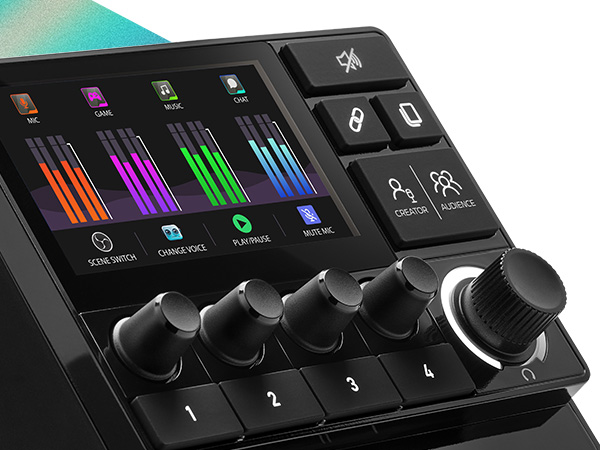

Hercules Stream 200 XLR Audio Controller with Sound Card

The Stream 200 XLR adds a sound card to the Stream 100 idea, and the reason to want one is the Creator/Audience split: what the streamer hears and what the stream carries are two independent mixes, switched by a single button on the panel. Levels for up to 32 tracks are metered on screen for both mixes at once.

Connectivity covers the sources a live setup actually has: an XLR microphone input with 48 V phantom power, an optical connector, line in and line out, a console or a second computer, and a headset output with its own encoder. Microphone processing, including compressor and limiter, is configured in the Hercules Stream Control app, which also drives the four action buttons and their 32 assignable actions.

Type	Audio controller with built-in sound card
Volume Controls	4 rotary encoders with mute support
Tracks	Up to 32, in 8 pages of 4, with 2 x 2 stereo VU meters per track
Microphone Input	1 x XLR with 48 V phantom power
Digital I/O	1 optical connector
Analog I/O	1 line-in and 1 line-out
Headset	1 headset output with volume encoder
Mix Control	Creator/Audience mix switching button, volume link button, mute all button
App Included	Hercules Stream Control
