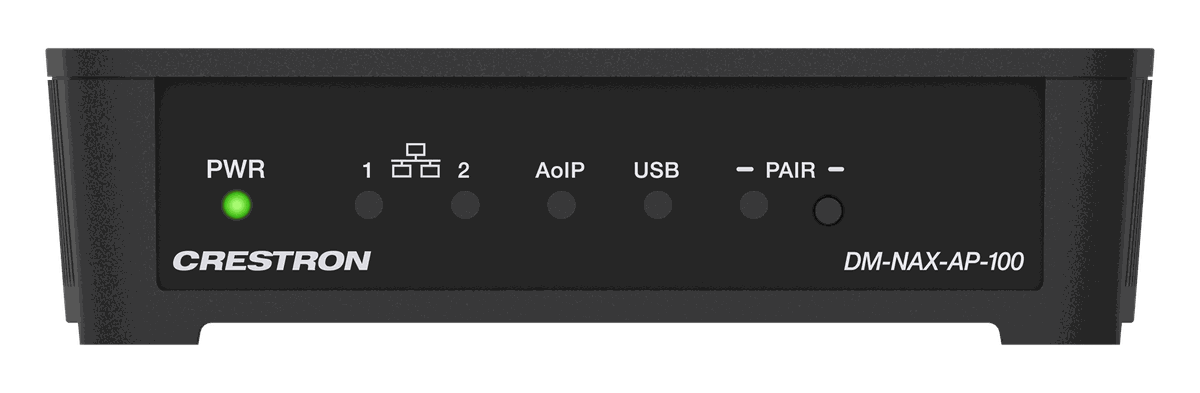

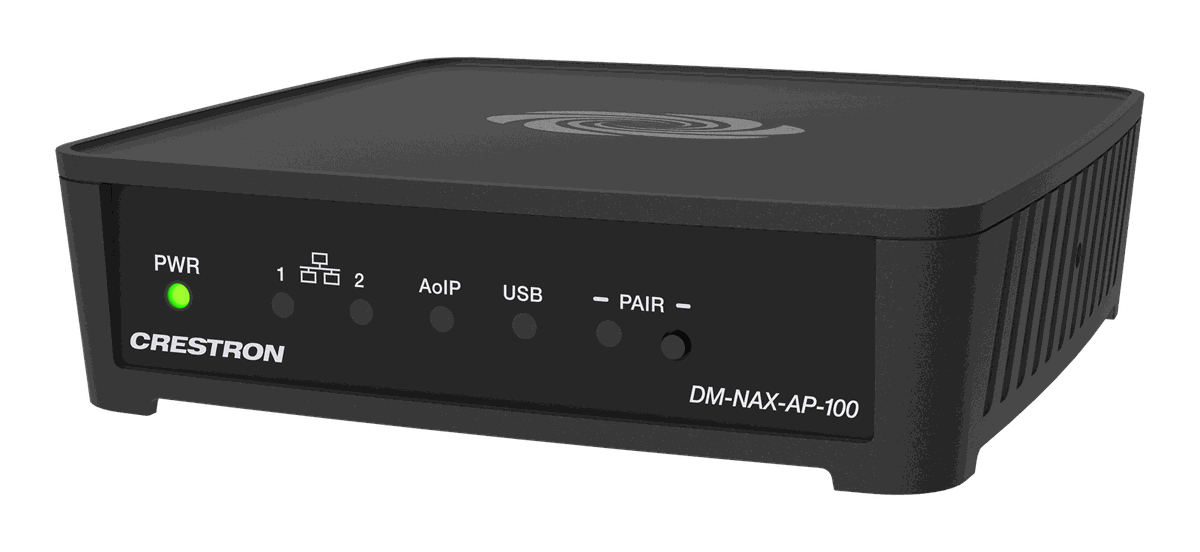

Crestron DM-NAX-AP-100 DM NAX Intelligent Audio Processor
The Crestron DM-NAX-AP-100 is a DM NAX Intelligent Audio Processor. DM NAX moves audio around a building over the same network that carries the video, so a zone becomes a switch port rather than a home run back to a rack of amplifiers.
Inputs accept USB stereo; DM NAX/AES67 audio-over-IP. PoE: IEEE 802.3af Class 0 (12.95 W) compliant; Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE. Ethernet: For control and PoE, AoIP, and/or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.
| Input Signal Types | USB stereo; DM NAX/AES67 audio-over-IP |
|---|---|
| Ethernet | For control and PoE, AoIP, and/or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP |
| USB | Bidirectional USB Audio Class 2 (UAC2) device connection, up to 24-bit/48 kHz stereo audio transfer; Enumerates as Crestron Echo-Canceling Speakerphone |
| PoE | IEEE 802.3af Class 0 (12.95 W) compliant; Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE |
| Mounting | Freestanding, stackable, surface mount and wall/ceiling mount option with bracket (black plastic) |
| DSP | Acoustic echo cancellation, automatic gain control, and dynamic noise suppression |

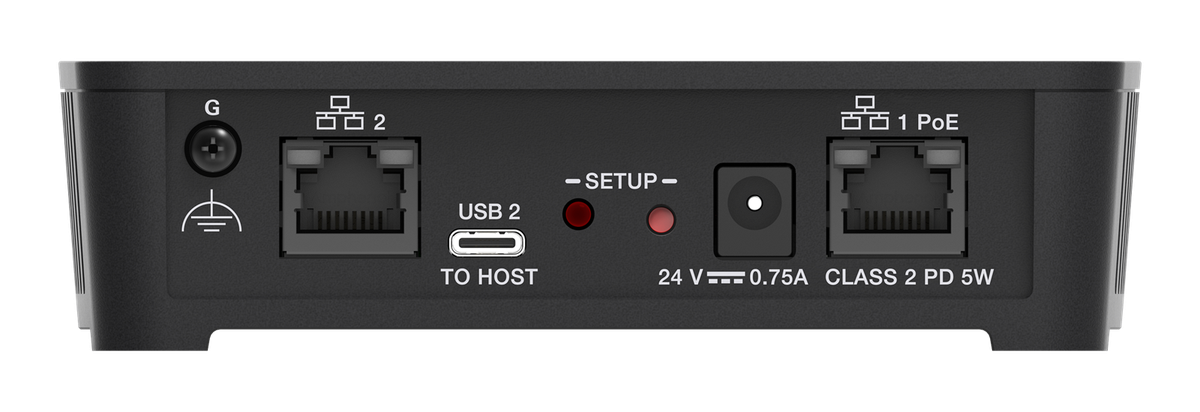

| 24VDC 0.75A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2407WU power pack (sold separately) |
| LAN 2 | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port |
