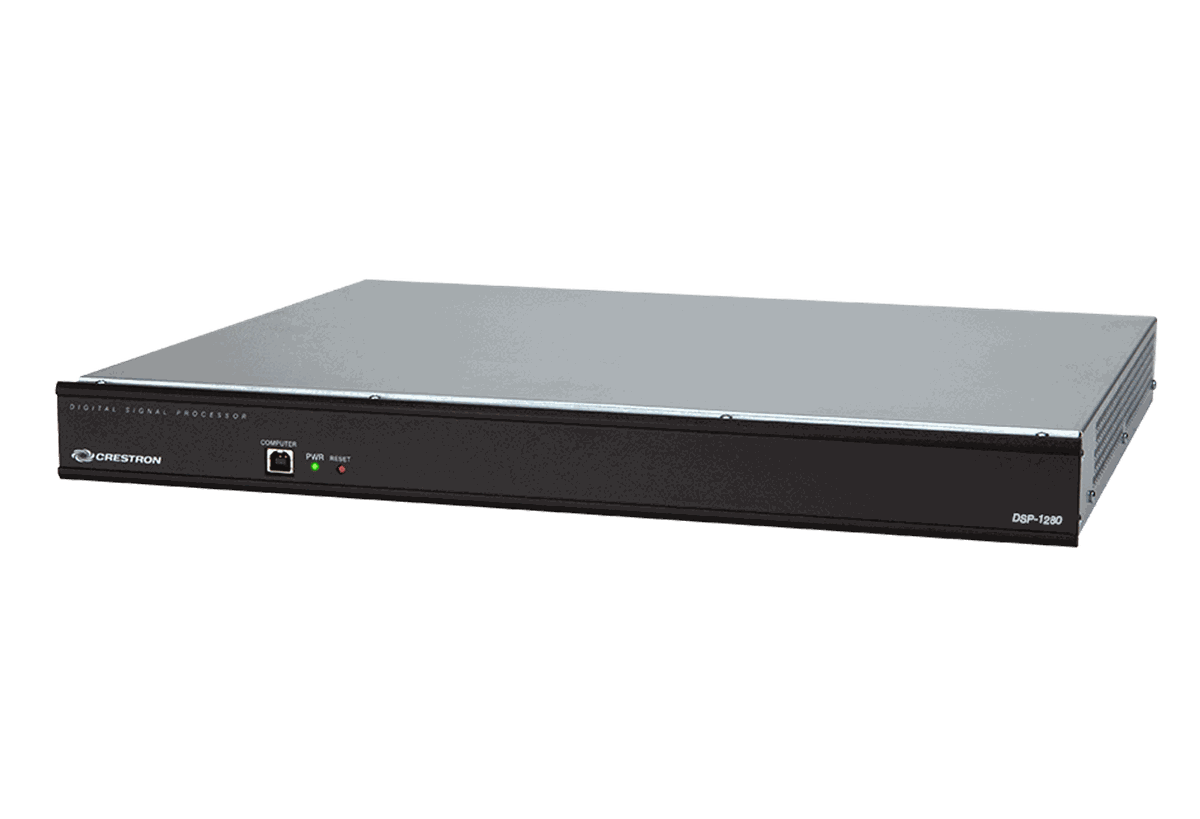

Crestron DSP-1280 Crestron Avia 12x8 Digital Signal Processor
The Crestron DSP-1280 is a Crestron Avia 12x8 Digital Signal Processor. Avia handles the mixing, gating, echo cancellation and equalization for a conference room or a divisible space, and it configures and reports inside the same Crestron control program that runs the rest of the room.
It runs on (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included. Frequency response is 20 Hz to 20 kHz +/-0.5 dB. Analog-To-Digital Conversion: 24-bit 48 kHz. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.
| Analog-To-Digital Conversion | 24-bit 48 kHz |
|---|---|
| Frequency Response | 20 Hz to 20 kHz +/-0.5 dB |
| THD | 0.001%, 20 Hz to 20 kHz, 0 dB gain, +4 dBu input; 0.01%, 22 Hz to 22 kHz, 54 dB gain, -50 dBu input |
| Dynamic Range | 110 dB, 22 Hz to 22 kHz, 0 dB gain |
| Latency | 3.0 ms (analog in to analog out) |
| LINE OUTPUTS 1 - 8 | (8) 3-pin 3.5 mm detachable terminal blocks; Balanced/unbalanced line-level audio outputs; Output Level: +24 dBu maximum; Output Impedance: 150 Ohms balanced |
| Ethernet | 10/100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, SSH, SFTP (SSH File Transfer Protocol) |
| Main Power | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
