Hartke HD508 500-Watt 4x8 Bass Combo Amplifier

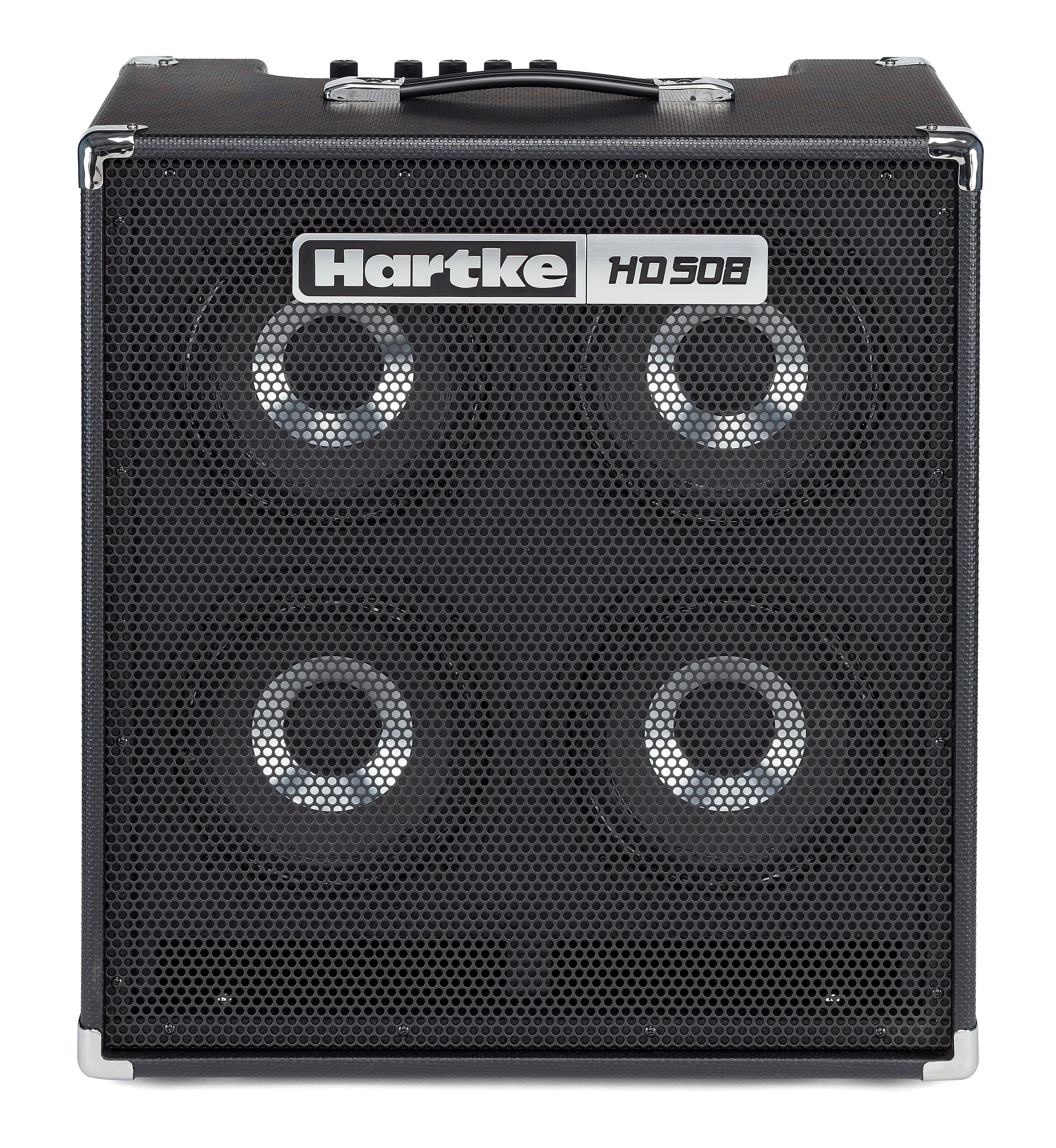

The HD508 uses four 8-inch HyDrive drivers instead of the more common pair of tens. Smaller cones move faster, so the combo tracks fast fingerstyle and slap lines with a tight, articulate midrange while the four-driver array still pushes real air. Behind them sits the same 500-watt Class D power section used across the HD combos, and the cabinet rides on casters so a 49-pound box moves without a lift.

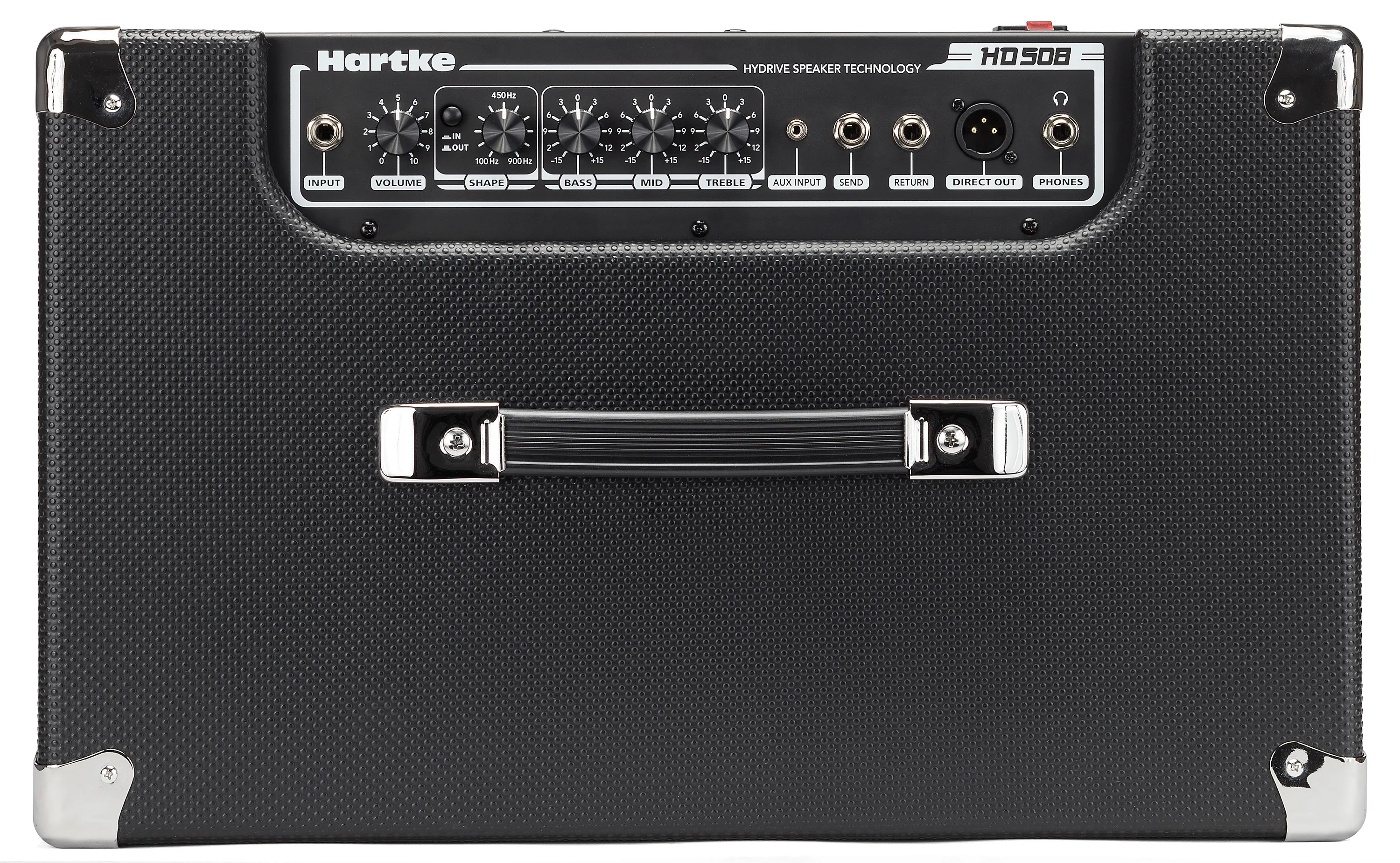

The top panel carries a three-band EQ voiced at 70 Hz, 700 Hz, and 5 kHz, plus the Shape filter that sweeps 100 Hz to 900 Hz for instant scoop or mid honk. A balanced XLR direct output feeds front of house, an effects loop handles outboard pedals or rack gear, and an aux input plus headphone jack turn the rig into a practice station.
| Configuration | 4 x 8 inch HyDrive paper/aluminum hybrid cones |
|---|---|
| Rated Output Power | 500 watts peak / 250 watts RMS |
| Total Harmonic Distortion | 0.54% (1 dB below rated output, 1 kHz typical) |
| Signal to Noise Ratio | 1 W / 49.3 dBu (1 W RMS at 1 kHz) |
| EQ Centers | Bass 70 Hz, Mid 700 Hz, Treble 5 kHz |
| Shape Control | 100 Hz - 900 Hz variable filter |
| Dimensions | 20 x 12 x 22 in (506 x 305 x 560 mm) |
| Weight | 49 lb (22.2 kg) |
