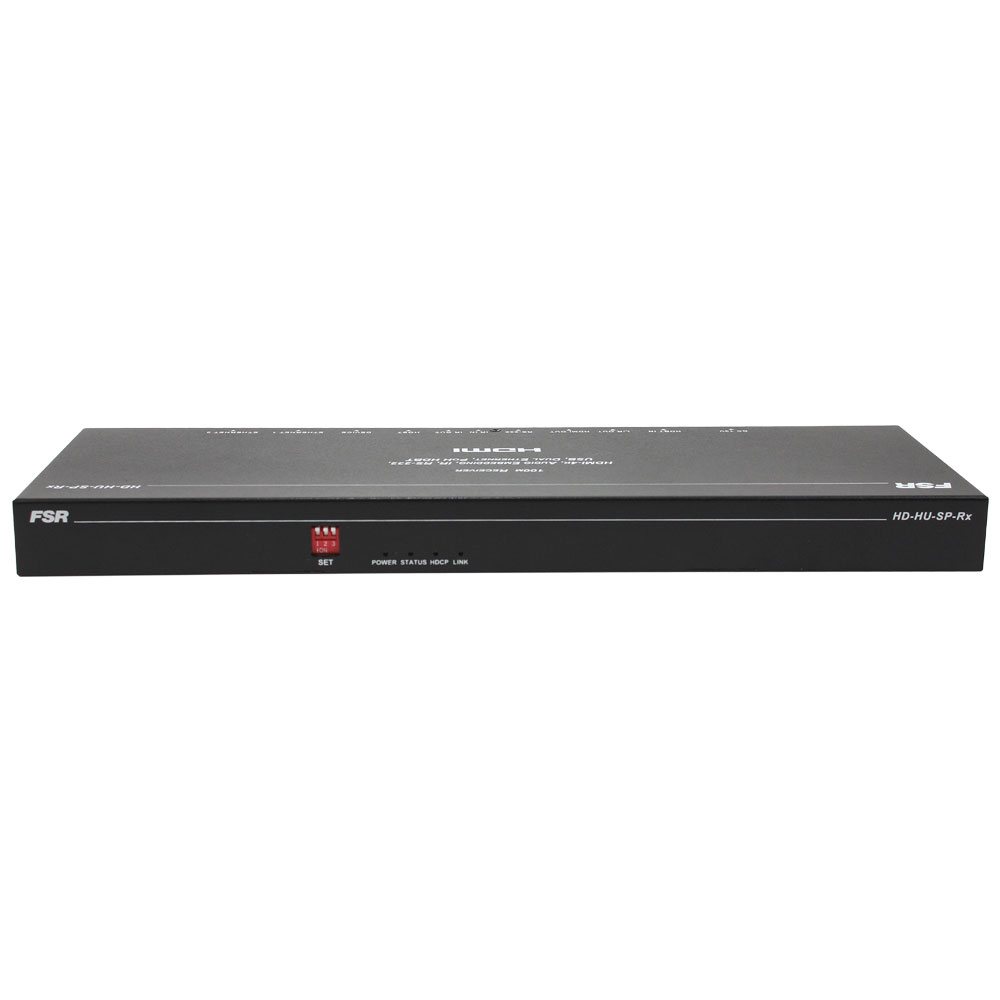

FSR HD-HU-SP HDBaseT 2.0 USB Extender
The HD-HU-SP pair is the extender to specify when the far end has a camera or a touch display, not just a screen. On top of HDBaseT's usual video, audio, IR, RS-232 and Ethernet, it carries two-way USB 2.0, so a room PC at one end can reach a soundbar, a camera or an interactive panel at the other over the same CAT-6A.
4K UHD runs to 100 m, and a long-reach mode takes 1080p out to 150 m. Power is bidirectional: put the supply wherever there is an outlet and the other end lights up from the cable. USB host and device roles are selectable at install, and analogue audio breaks out separately. Order the -Tx and -Rx as the job needs.
| Product Type | HDBaseT 2.0 5Play extender, sold as separate transmitter and receiver |
|---|---|
| Cable | One shielded CAT-6A |
| Distance | Up to 100 m at 4K; long-reach mode to 150 m at 1080p |
| Resolution | Up to 4K 2160p at 60Hz 4:2:0 |
| USB | Two-way USB 2.0, host or device selectable |
| Control | Bidirectional IR and RS-232, Ethernet |
| Power | Bidirectional; the system can be powered from either end |
| Audio | Separate unbalanced analogue audio |
