EtherWAN EX78900E Series Hardened Managed 10 to 16-Port Gigabit PoE Ethernet Switch

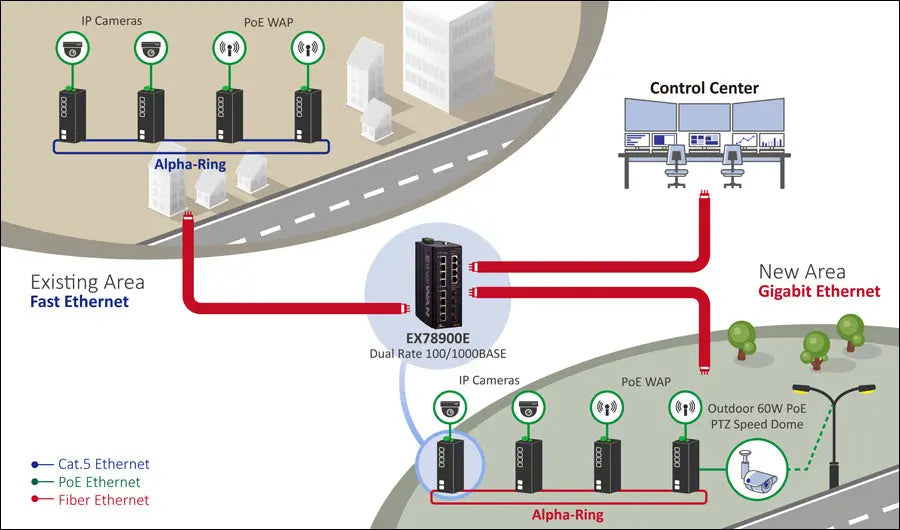

EtherWAN EX78900E Series Hardened Managed 10 to 16-Port Gigabit PoE Ethernet Switch moves traffic inside cabinets, roadside enclosures and plant rooms where a commercial switch would not last a season. Port count and media are listed as 8 or 12 x 10/100/1000BASE-T(X); 2 or 4 x 100/1000BASE SFP. Operating temperature is rated at -40 to 75 deg C (-40 to 167 deg F). The housing is aluminum, rated IP30.

This page carries the 3 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by the options listed on each variant. Installation is din-rail mounting. Power input: 46-57VDC Redundant (Terminal block). Specifications above are taken from the EtherWAN datasheet for this family.

Ethernet8 or 12 x 10/100/1000BASE-T(X) | 2 or 4 x 100/1000BASE SFP
Console1 x RJ45
Power Consumption20W Max (without PoE)
PoE Modes802.3af/at Mode A: Pins 1/2(-), 3/6(+) | 802.3bt (60W): Mode A & B, Pins 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power OutputPorts 1-4, 9-12: Up to 30W/port | Ports 5-8: Up to 60W/port | Power Budget: 240W
Casing MaterialAluminum
IP RatingIP30

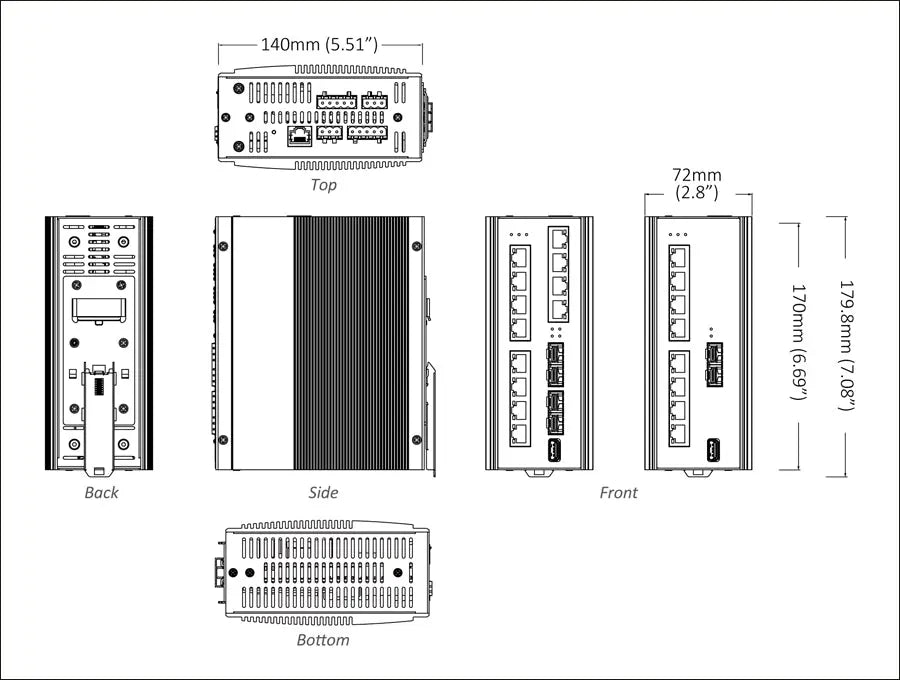

Dimensions72 x 140 x 170mm (W x D x H) | 2.8" x 5.5" x 6.7"
EtherWAN EX78900E Hardened Managed 60W PoE Gigabit Switch
