EtherWAN PoE-Powered Power Supply (SPL90BT) Hardened PoE-Powered Power Supply

EtherWAN PoE-Powered Power Supply (SPL90BT) Hardened PoE-Powered Power Supply feeds hardened gear from mains without derating when the cabinet heats up. Port count and media are listed as 1 x 10/100/1000BASE-T(X), data out; 1 x 10/100/1000BASE-T(X), PoE in. Operating temperature is rated at -40 to 167 deg F (-40 to 75 deg C). The housing is aluminum, rated IP30.

One orderable part number, SPL90BT, listed at the current dealer price. Installation is din-rail or wall mounting. Power input: PoE Power Input. Specifications above are taken from the EtherWAN datasheet for this family.

Ethernet	1 x 10/100/1000BASE-T(X), data out \| 1 x 10/100/1000BASE-T(X), PoE in
Power Consumption	1W max
Casing Material	Aluminum
IP Rating	IP30

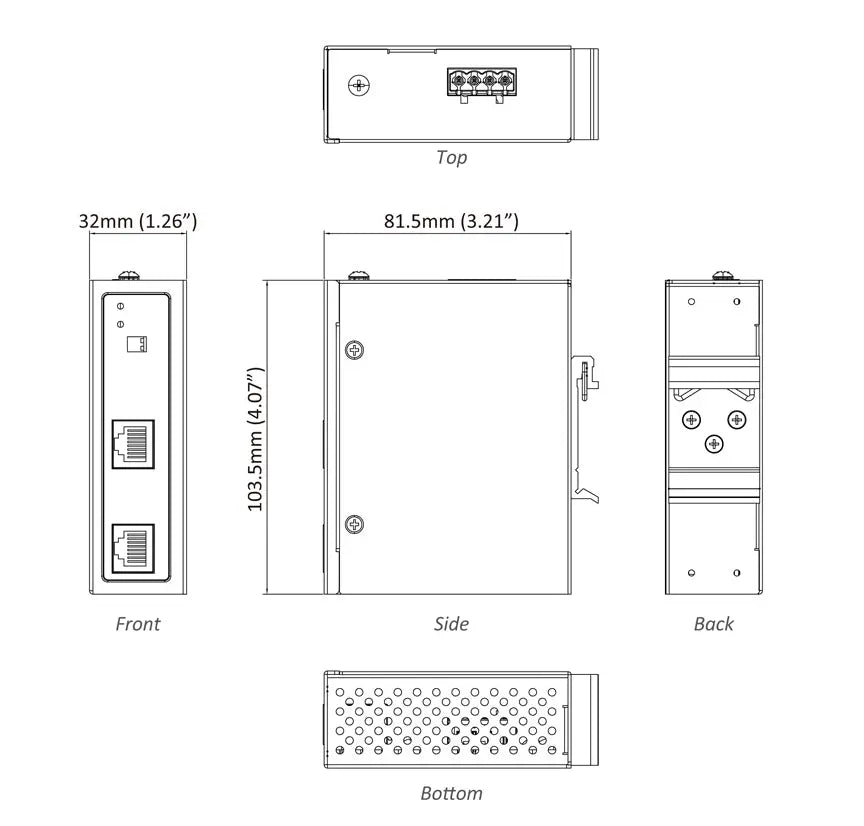

Dimensions	32 x 81.5 x 103.5mm (W x D x H) \| 1.26" x 3.21" x 4.07"
Weight	1.5lbs (0.68kg)
Installation Type	DIN-rail or wall mounting
Operating Temp.	-40 to 167 deg F (-40 to 75 deg C)
