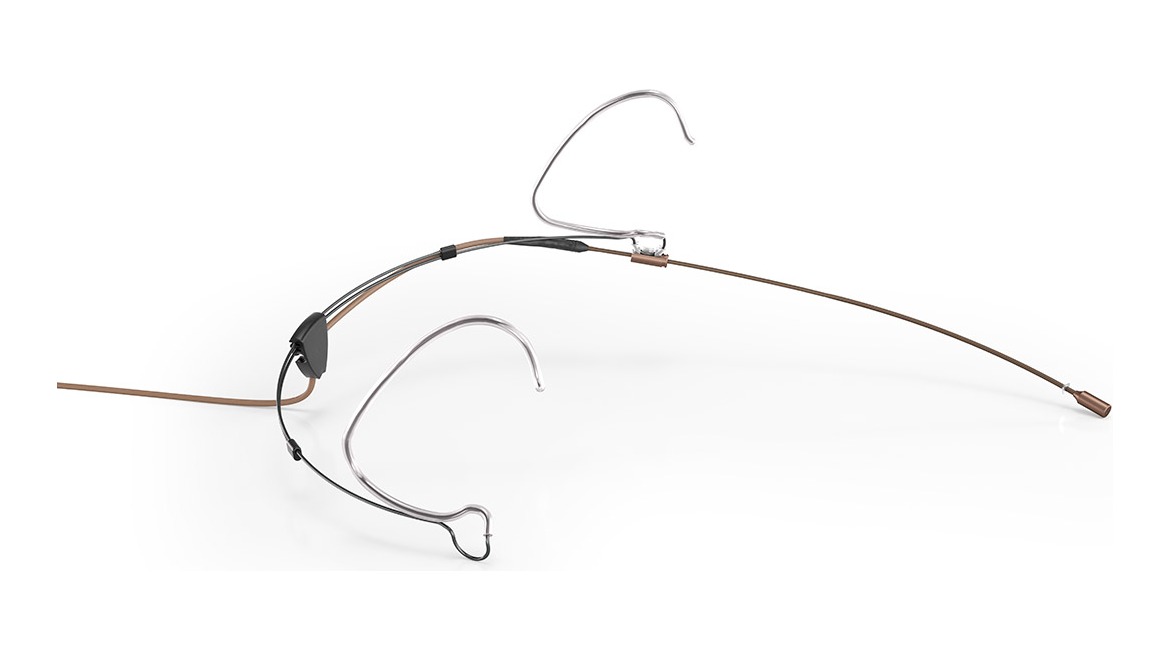

DPA Microphones DPA 6066 CORE Subminiature Omnidirectional Headset Microphone

The 6066 puts the same 3 mm subminiature capsule used in the 6061 on a dual-ear headset frame. The boom is thin enough to disappear against skin at a few metres, which is why it turns up on musical theatre productions and on presenters who have to be on camera all day. It is a loud-SPL omni, so a singer can work it hard without the capsule giving up.

Three flesh and hair tones are stocked - black, beige and brown - and the termination is chosen at order time. MicroDot keeps the mic modular for use with DPA DAD adapters; the 3-pin LEMO, TA4F mini-XLR and mini-jack versions are factory-wired for Sennheiser, Shure and mini-jack bodypacks. Order the termination that matches your transmitters.

Directional pattern	Omnidirectional
Principle of operation	Pressure, pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range, plus/minus 2 dB	40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity at 1 kHz	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise, A-weighted	Typ. 26 dB(A) re. 20 uPa
Max. SPL, THD 10%	144 dB SPL peak
Capsule diameter	3 mm (0.12 in)
Cable length	1.3 m (4.3 ft)
Weight	11 g (0.40 oz) including cable and connector
