dBTechnologies DVA K5 3-Way Active Line Array Module

dBTechnologies builds the DVA K5 for professional sound reinforcement. It is a 3-Way Active Line Array Module driven by a Digipro G3 amplifier in Class D rated 500 W RMS and 1000 W peak for a maximum SPL of One Unit: 129 dB. Frequency response is 70 - 19,000 Hz. The low section uses 1x8 in and the high section 2x1 in.

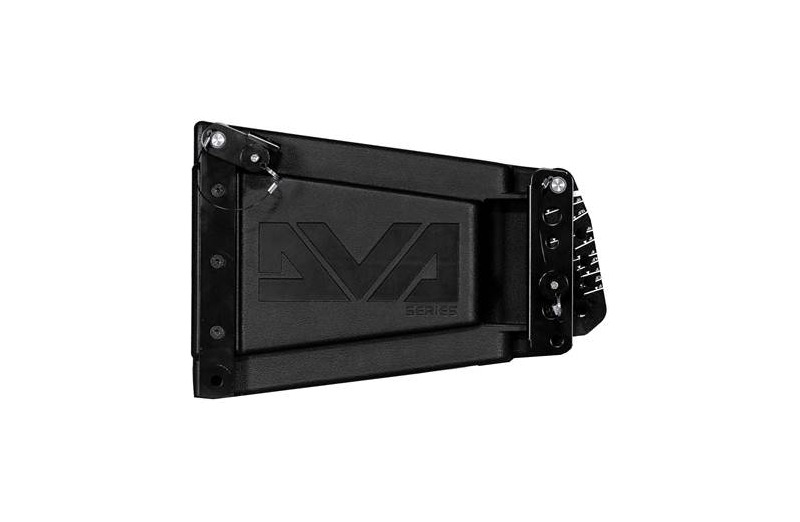

Inputs are 1x XLR Balanced with 1x XLR Balanced on the output. Front panel controls cover 1 x Input Sensitivity Rotary Switch. Power is 500 W SMPS with Auto Range PSU on 1x PowerCON In. The enclosure is Polypropylene PP metal reinforced. Rigging is via Integrated rigging hardware. It weighs 14.7 kg (32.4 lbs).
