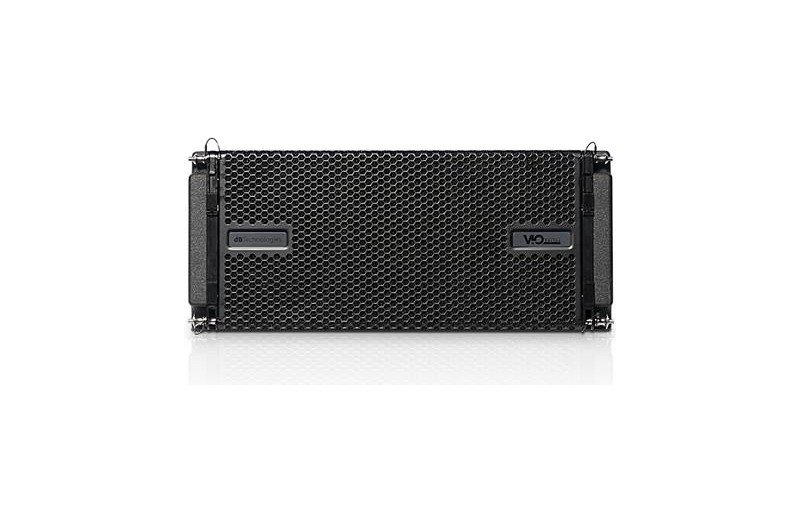

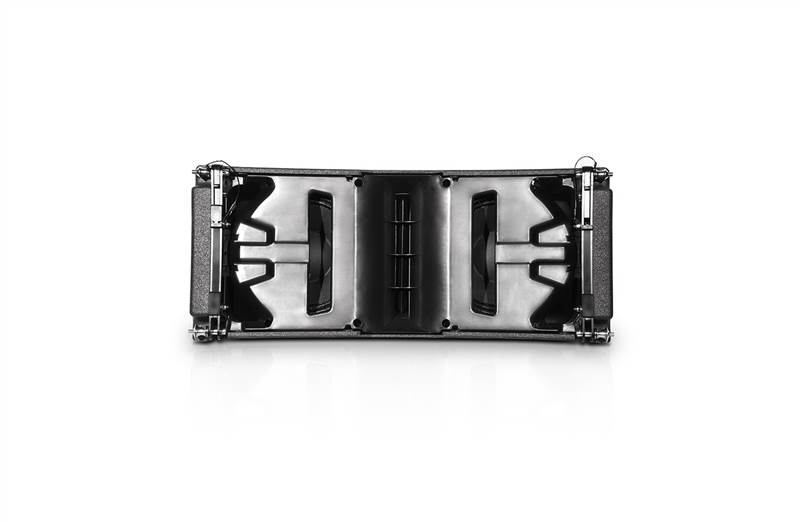

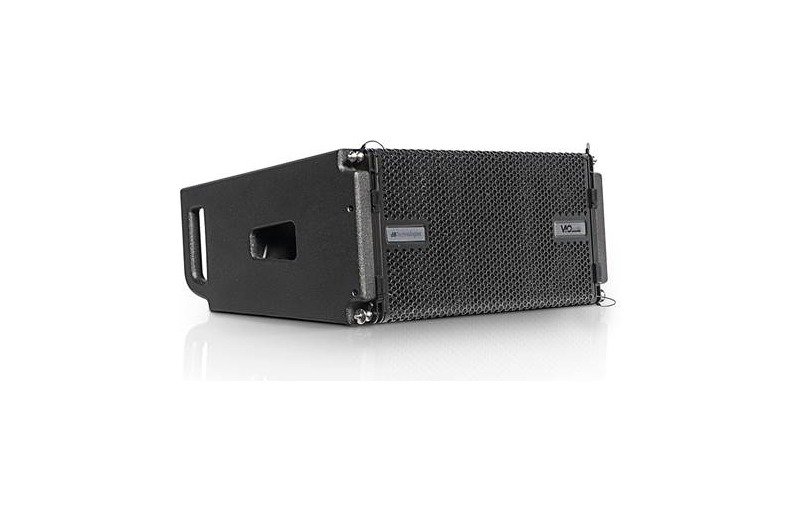

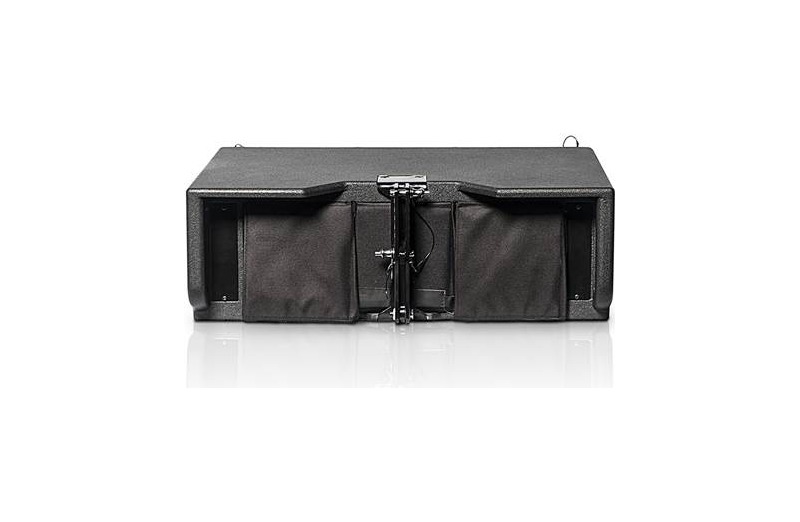

dBTechnologies VIO L208 2-way Active Line Array Module

dBTechnologies builds the VIO L208 for professional sound reinforcement. It is a 2-way Active Line Array Module driven by a Digipro G3 [bi-amped] amplifier in Class-D and 1800 W peak for a maximum SPL of 133.5 dB. Frequency response is 85 Hz -18,1 KHz. Usable bandwidth is 75 Hz - 20 KHz. The low section uses 2x8 in and the high section 1x1.4 in crossing over at 1000 Hz.

Inputs are 1xXLR fem, Bal. with 1xXLR male, Bal. on the output. Front panel controls cover 1xSpeakers Coupling (7 presets). Power is 900 W SMPS with Auto-range PSU. The enclosure is Multiplex Plywood. Handles are 1 x Side, 2 on back. Rigging is via Integrated 3-point flying hardware. It weighs 18.1 Kg (39.9 lbs).
