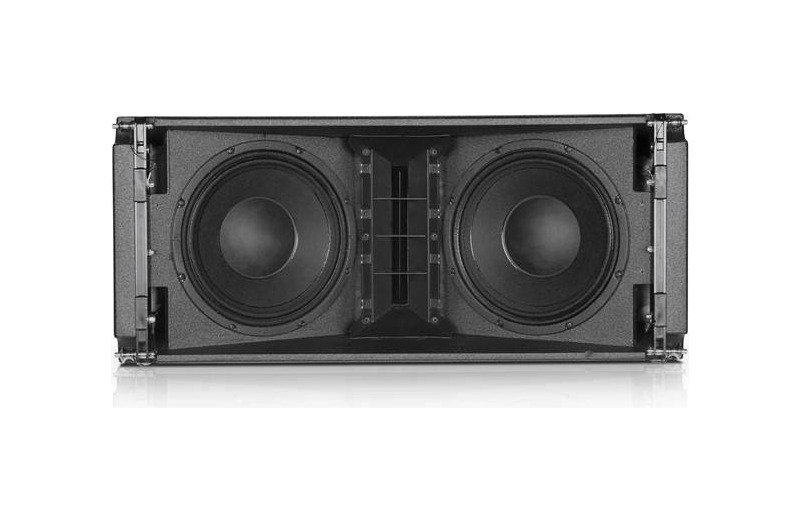

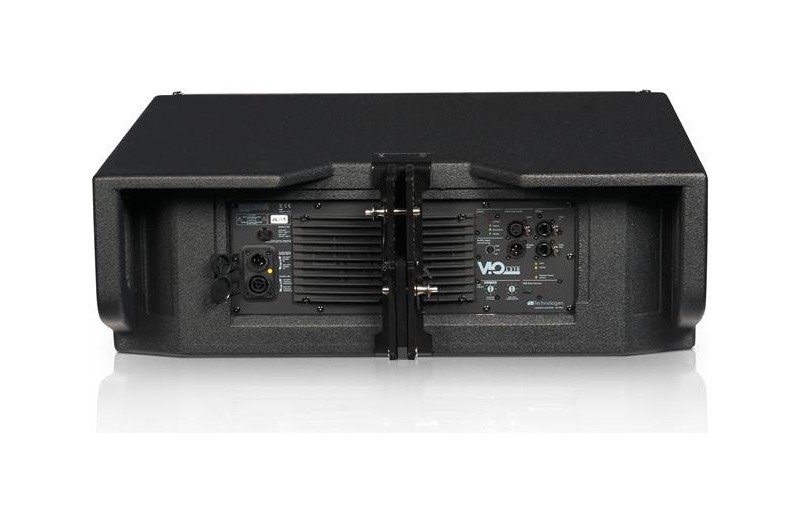

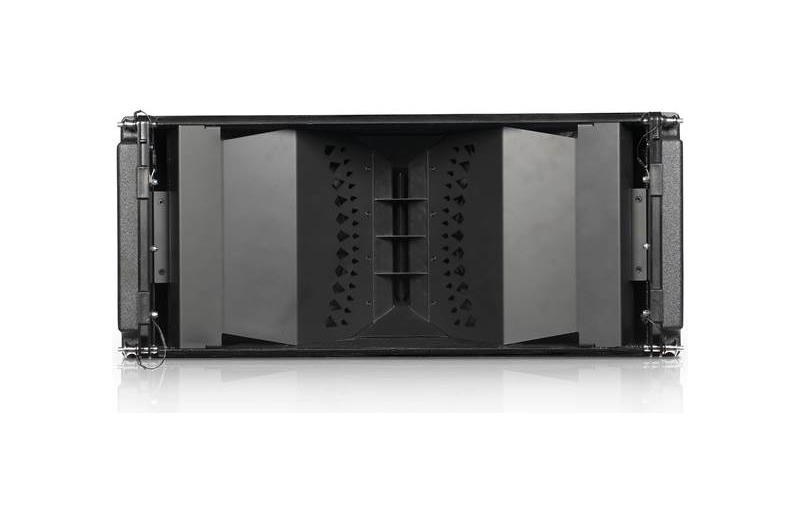

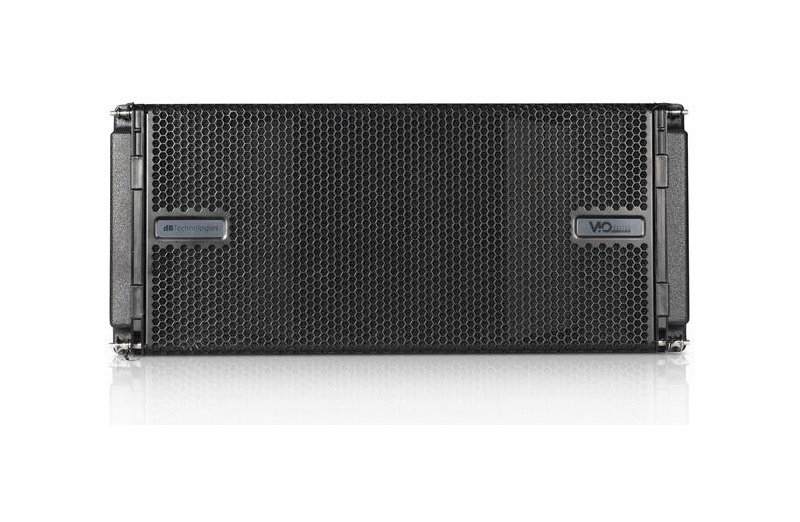

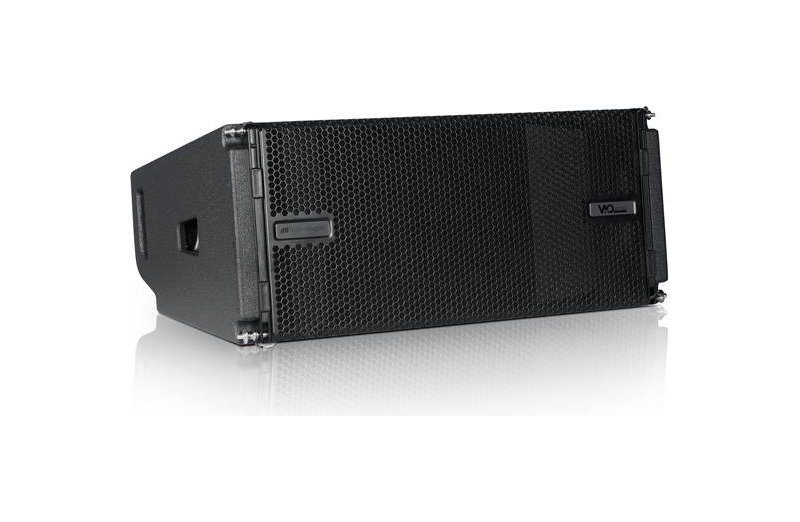

dBTechnologies VIO L210 2-way Active Line Array Module

dBTechnologies builds the VIO L210 for professional sound reinforcement. It is a 2-way Active Line Array Module driven by a Digipro G3 [bi-amped] amplifier in Class-D and 1800 W peak for a maximum SPL of 135 dB. Frequency response is 78-18,100 Hz. Usable bandwidth is 67-20,000 Hz. The low section uses 2x10 in and the high section 1x1.4 in crossing over at 950 Hz.

Inputs are 1xXLR fem, Bal. with 1xXLR male, Bal. on the output. Front panel controls cover 1xSpeakers Coupling (7 presets). Power is 900 W SMPS with Auto-range PSU on 1xPowerCon TRUE1 IN. The enclosure is Multiplex Plywood. Handles are 2x side. Rigging is via Integrated rigging hardware. It weighs 28.6 Kg (63.00 lbs).
