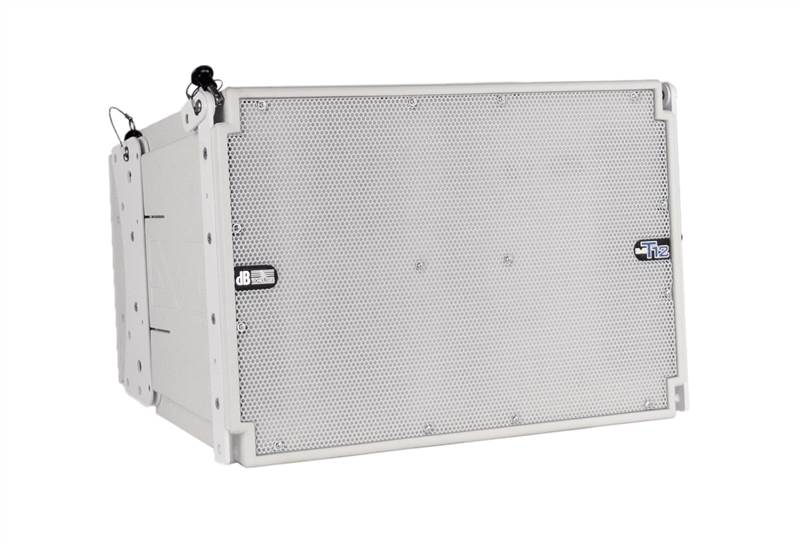

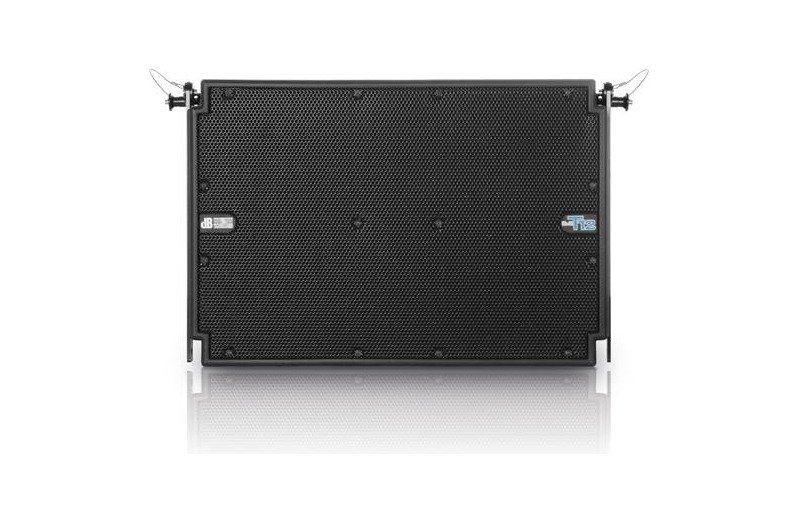

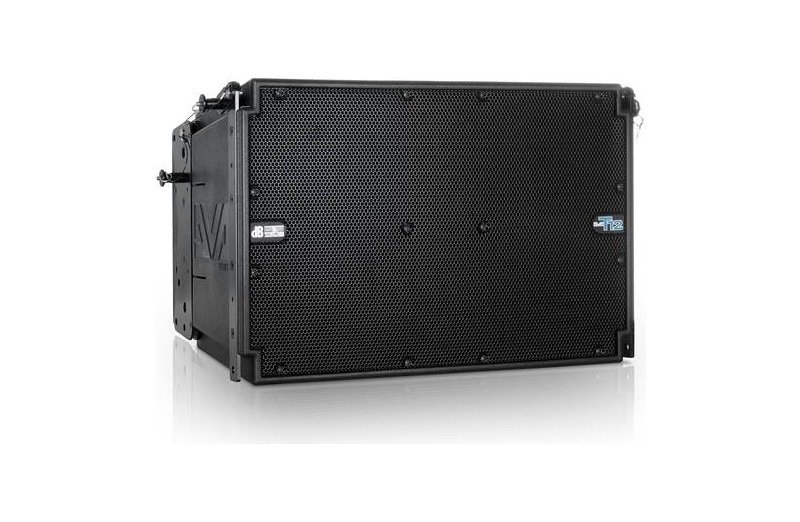

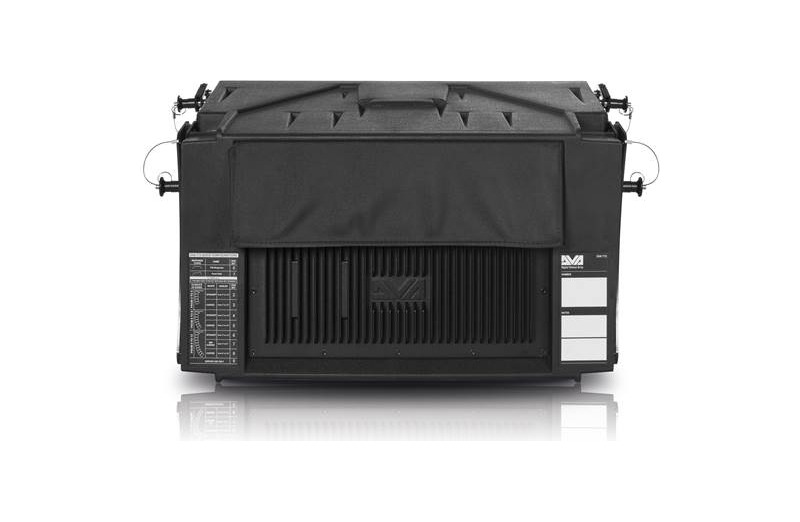

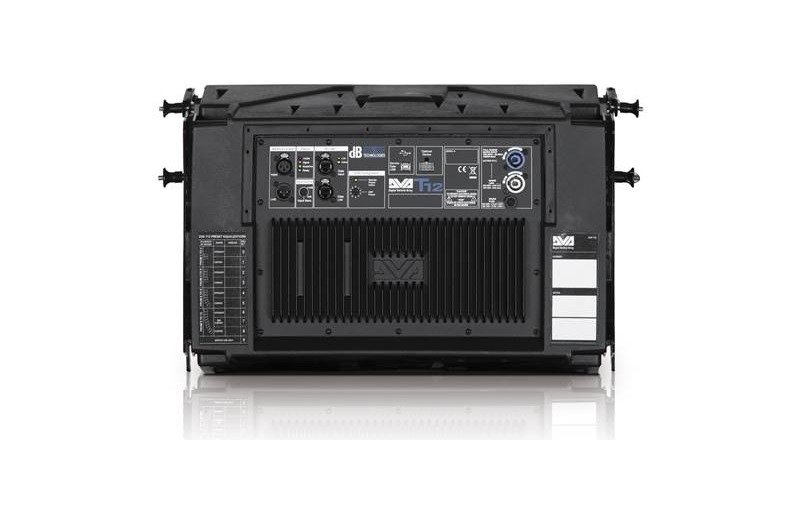

dBTechnologies DVA T12 3-Way Active Line Array Module

dBTechnologies builds the DVA T12 for professional sound reinforcement. It is a 3-Way Active Line Array Module driven by a Digipro G2 amplifier in Class D for a maximum SPL of One Unit: 136 dB. Usable bandwidth is 60 - 19.000 Hz with 100x10 deg Single unit coverage. The low section uses 12 in and the high section 3x1 in.

Inputs are 1x XLR fem, Bal. with 1x XLR male, Bal. on the output and 8, HF/Low-mid correction system presets on 1x Powercon In. The enclosure is Polypropylen PP. Rigging is via Integrated rigging hardware. It weighs 29,9 kg (63.93 lbs).
