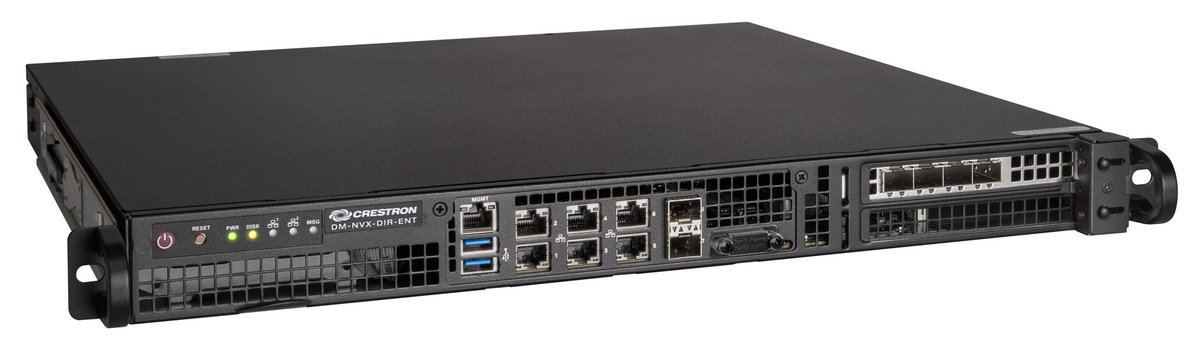

Crestron DM-NVX-DIR-ENT DM NVX Director Network AV Switching Appliance, 1000 Endpoints
The Crestron DM-NVX-DIR-ENT is a DM NVX Director Network AV Switching Appliance, 1000 Endpoints. DM NVX carries the signal as a stream over standard Gigabit Ethernet, which makes the network switch the matrix and lets a system grow by adding endpoints instead of replacing a chassis.
Endpoints: Supports 1000 DM NVX devices, each configured as an encoder or decoder. Domains: Supports 240 domains (allows grouping of endpoints in up to 240 individual subsystems). DM NVX (via Ethernet): HDCP 2.2, AES audio/video content encryption, RTP, RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction). It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.
| Ethernet | 100/1000 Mbps, 10 Gbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, IPv4, HTTPS web browser setup and control, Crestron 3-Series control system integration |
|---|---|
| Endpoints | Supports 1000 DM NVX devices, each configured as an encoder or decoder |
| Domains | Supports 240 domains (allows grouping of endpoints in up to 240 individual subsystems) |
| DM NVX (via Ethernet) | HDCP 2.2, AES audio/video content encryption, RTP, RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction) |

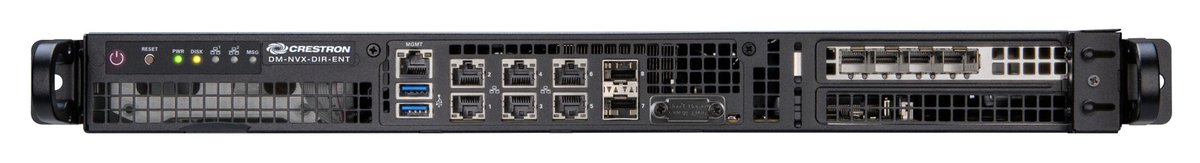

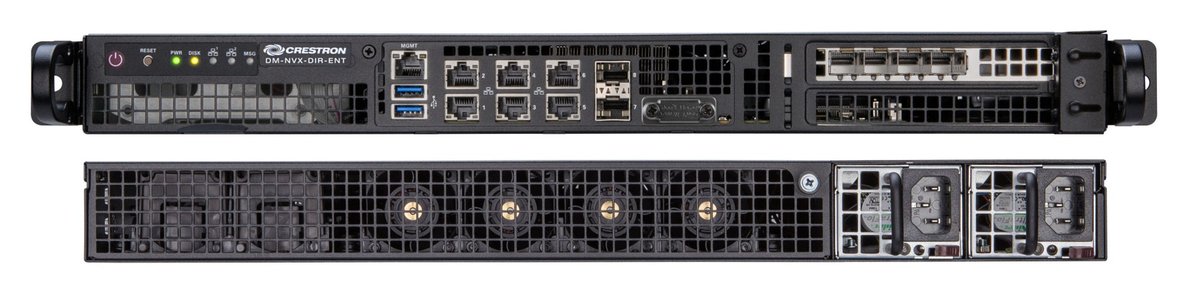

| MGMT (front) | (1) 8-pin RJ-45 connector, shielded, female; 100BASE-TX/1000BASE-T Ethernet port for hardware management |
| USB 3.0 (front) | (2) USB Type A connectors, female, blue; USB 3.0 host ports for factory use only |
| Ethernet 1 - 6 (front) | (6) 8-pin RJ-45 connectors, shielded, female; 100BASE-TX/1000BASE-T Ethernet ports for web browser, endpoint, and control traffic |
| Ethernet 7 - 8 (front) | (2) SFP+ ports; 10GBASE-X Ethernet ports for web browser, endpoint, and control traffic; Each port accepts one Crestron SFP-10G SFP+ transceiver module |
