Crestron DM-EXT-2022 Kit 4K60 4:4:4 DM Essentials Receiver and 2x2 Auto-Switcher for, HDMI, USB-C

The Crestron DM-EXT-2022 KIT is a 4K60 4:4:4 DM Essentials Receiver and 2x2 Auto-Switcher for, HDMI, USB-C DisplayPort, and USB 2.0 Signal Extension over CATx Cable. DM Essentials is Crestron's point-to-point line: one Category cable between the two units carries the video, audio and control that would otherwise need a matrix behind it.

Outputs carry HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support. Copy protection is HDCP 2.3. Input Signal Types: HDMI (DVI and Dual-Mode DisplayPort interface compatible) and DM Lite with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support. Crestron ships the transmitter and the receiver together under one order code.

Input Signal TypesHDMI (DVI and Dual-Mode DisplayPort interface compatible) and DM Lite with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
Output Signal TypesHDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
Digital FormatsDolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS ES, DTS 96/24, DTS HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels
Copy ProtectionHDCP 2.3
Ethernet100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, Secure CIP, DHCP, web browser setup and control, Crestron control system integration, IEEE 802.1X, Authentication, SSH/SSL, TLS
Transmitter1.96 lb (0.89 kg)
Receiver1.95 lb (0.88 kg)

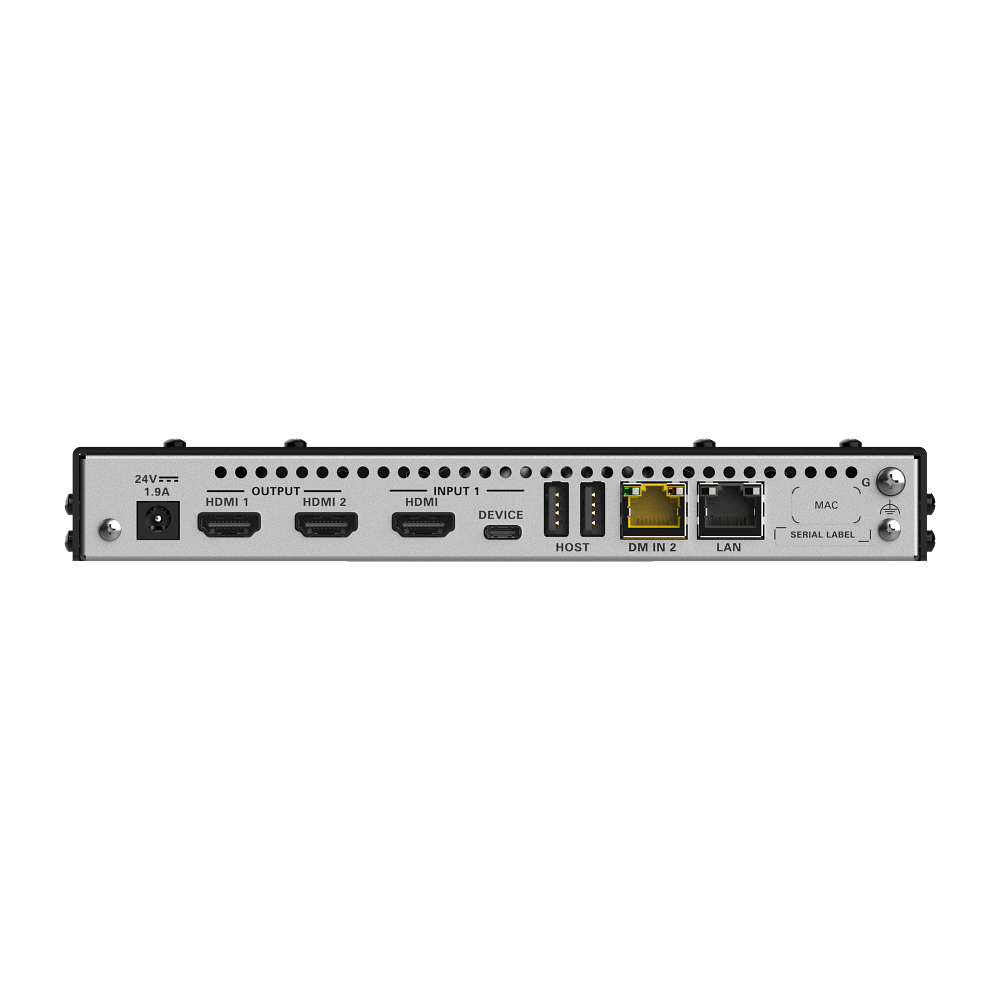

DM(1) 8-pin RJ-45 connector, female, shielded; DM output port for connection to the receiver
