BZBGear BG-STREAM-D IP to HDMI Decoder

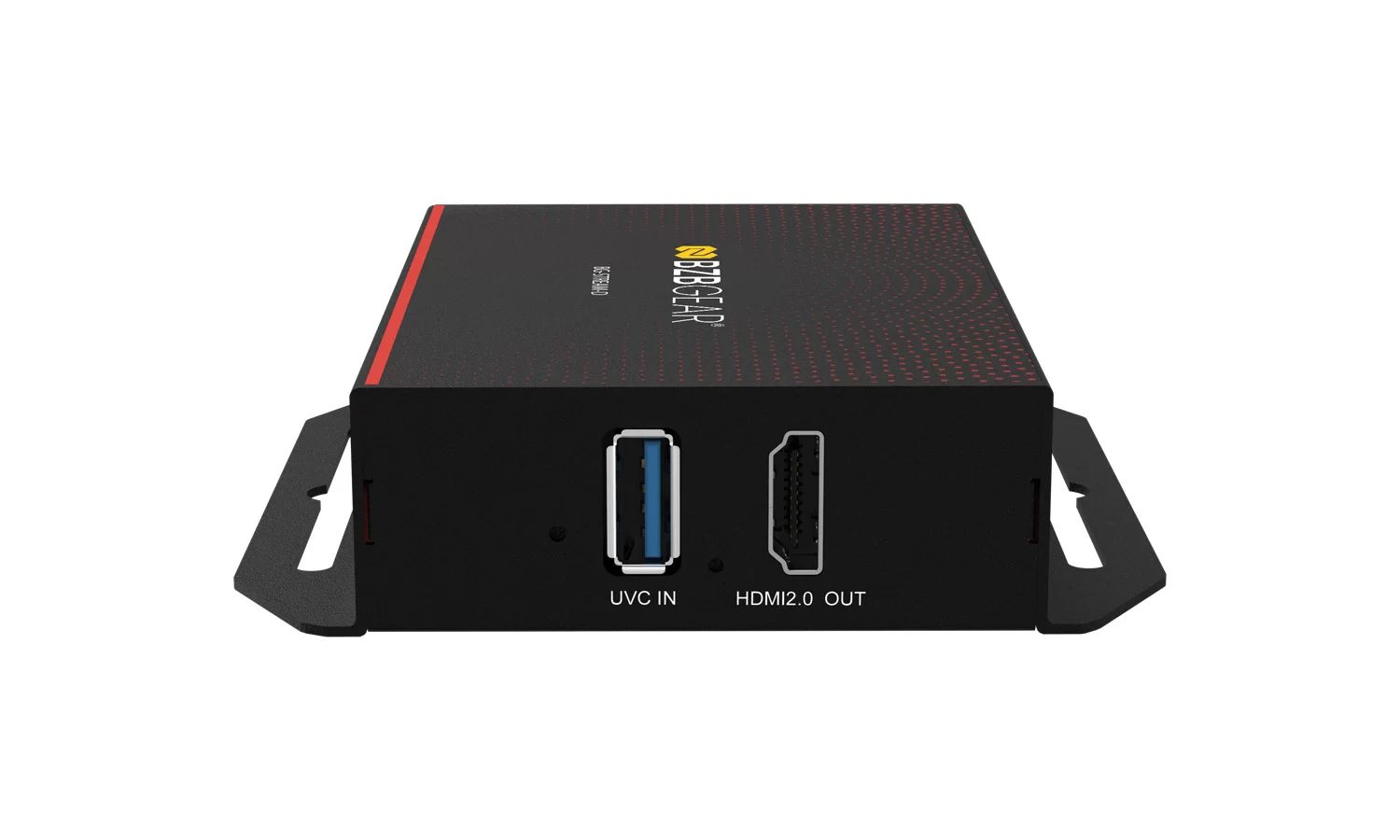

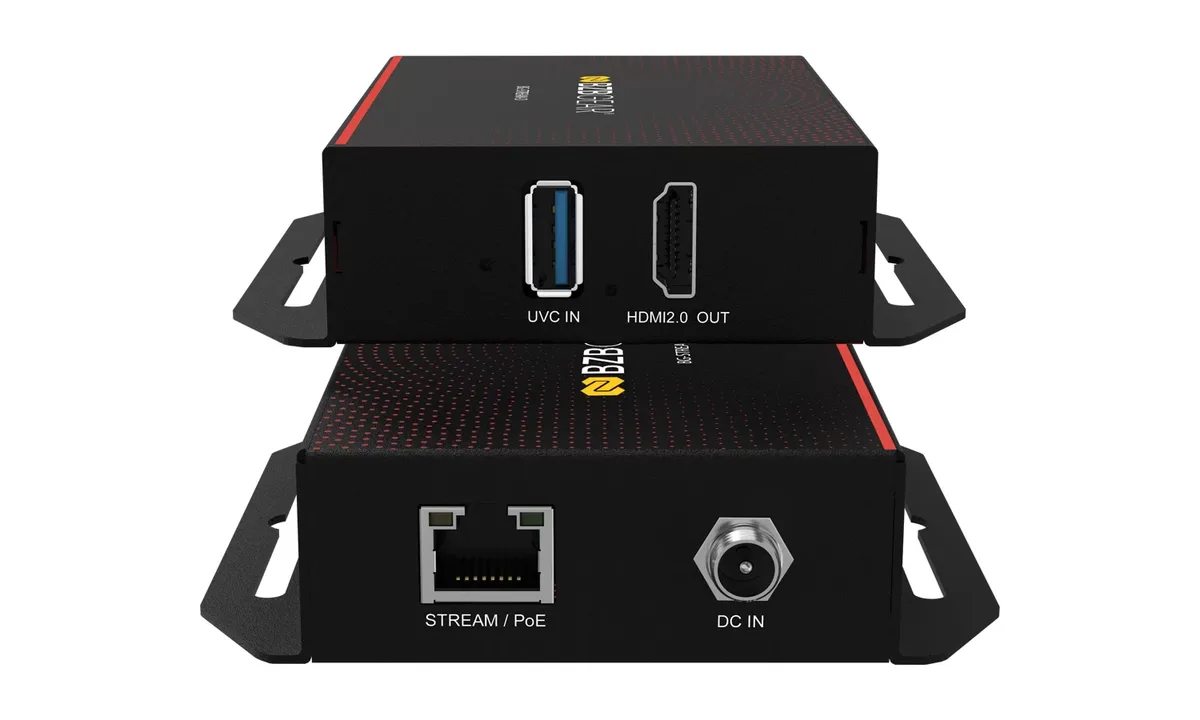

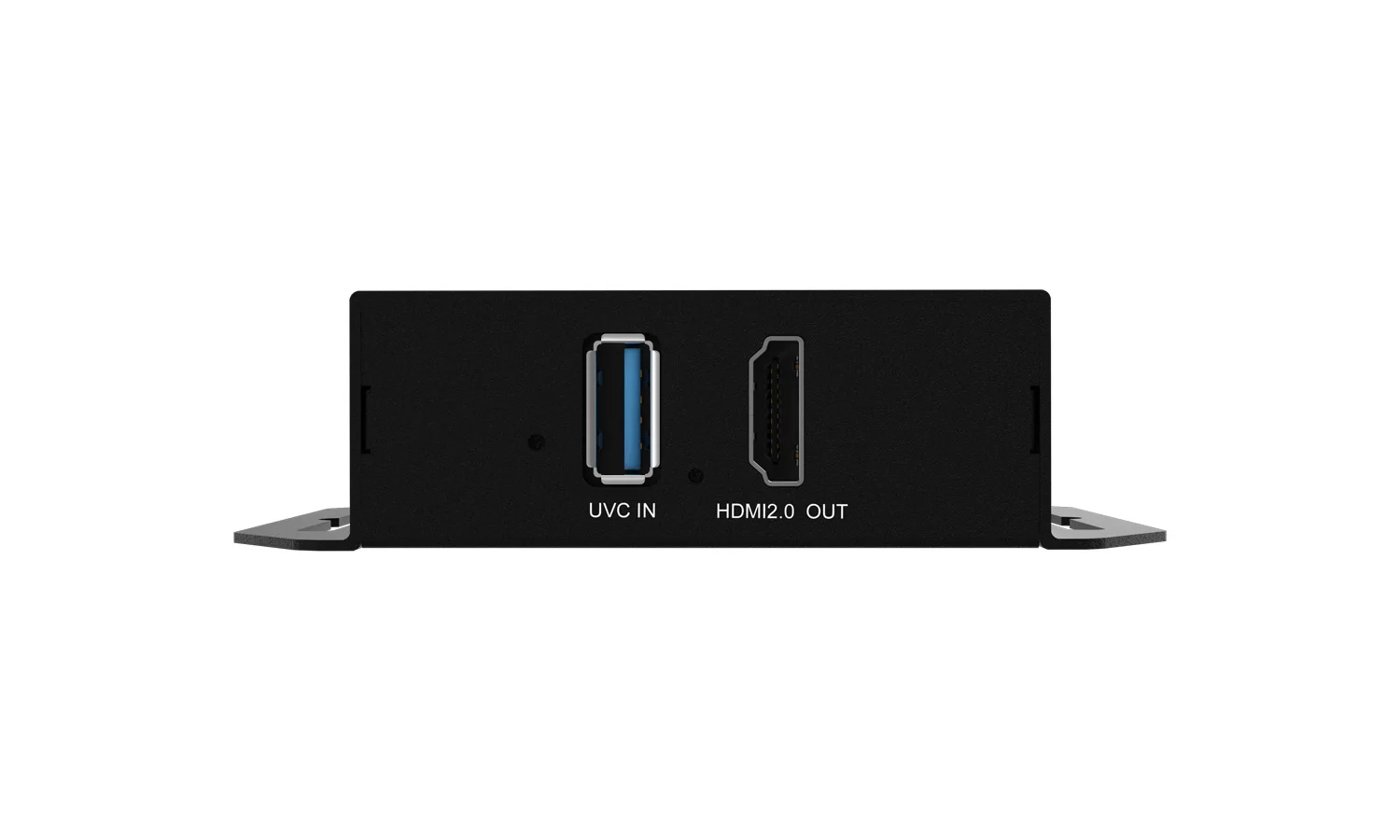

The STREAM-D is the decoder that puts a network stream back on a screen. It subscribes to RTSP, RTMP, HLS, TS over IP or SRT, or takes a UVC source on the USB 3.0 input, and outputs HDMI 2.0 at up to 4096x2160 at 60 fps.

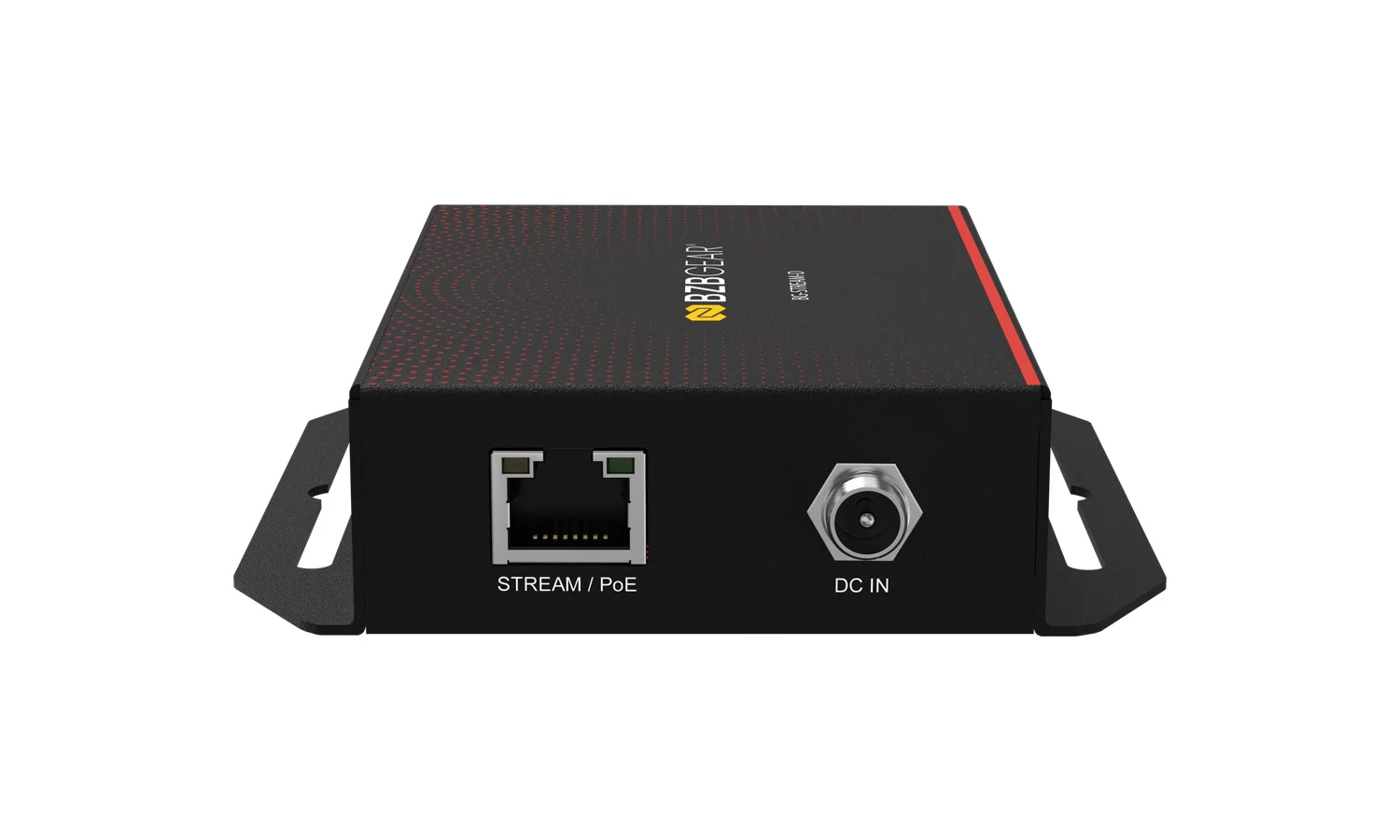

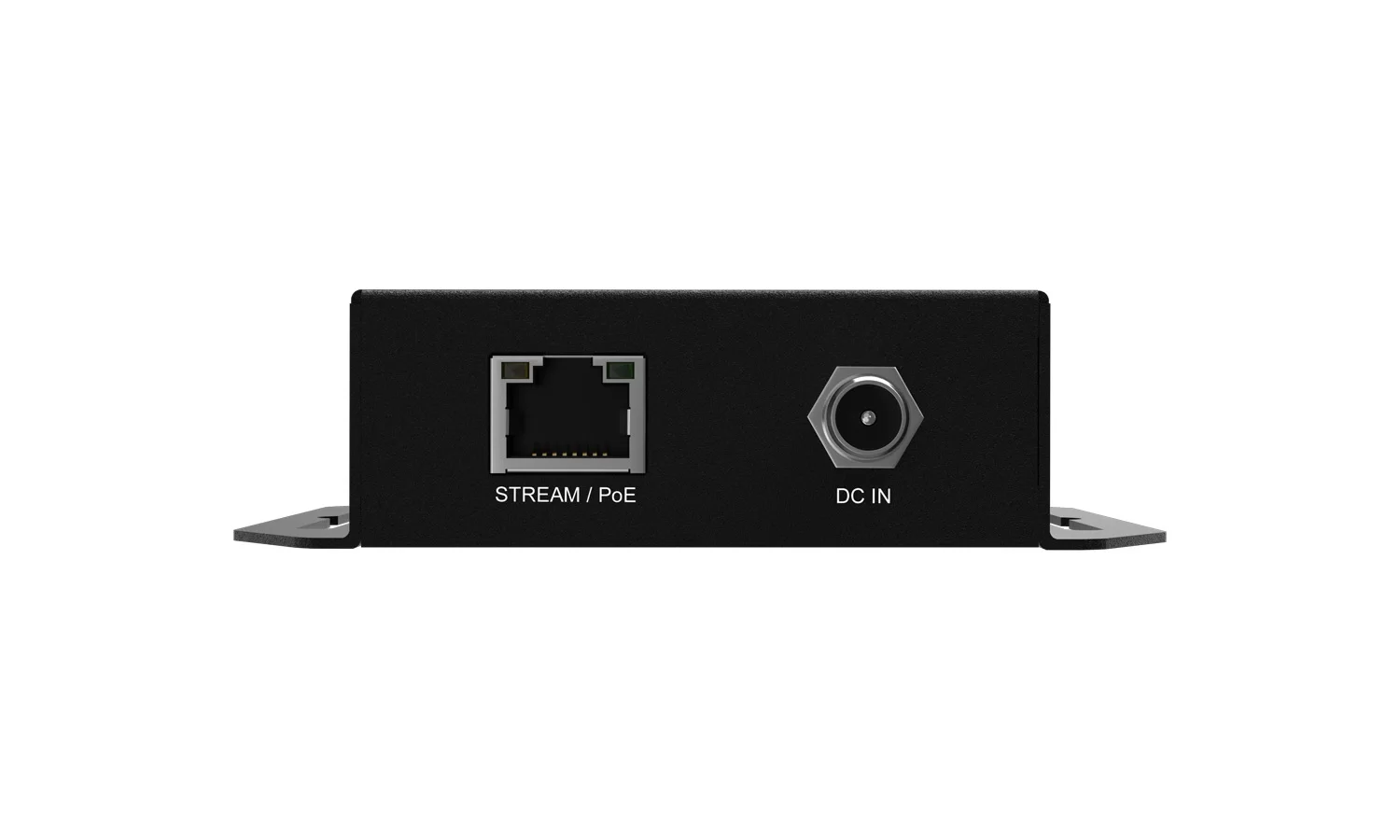

It is the same 104 mm chassis as the STREAM-E encoder and is powered the same way, over PoE or 12 V DC, so a matched pair sits neatly at each end of a run. Configuration is through a web interface. The ND model adds NDI and Dante AV-H, each of which needs its own licence.

Inputs	Video: 1x RJ45 (RTSP/RTMP/HLS/TS/SRT/NDI HX/Dante AV-H Support) 1x USB 3.0 Type A (UVC) input
Output	Video: 1x HDMI 2.0
Video support	H.265/H.264/AVC, Baseline/Main/High Profile Supported HDMI output Resolutions: 4096x2160p@60/50fps 4096x2160p@30/25/24fps 3840x2160p@60/50fps 3840x2160p@30/25/24fps 1920x1080p@60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@60fps 720x576p@50fps
Maximum frame rate	4096x2160p@60/50fps
Audio	AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
Network	1x RJ45 for 10/100/1000Mbps Ethernet DHCP Client
Streaming protocols	NDI Support (Separate License with NDI Required) Dante AV-H (Separate License with Dante AV-H Required) RTSP over UDP/TCP/Multicast/HTTP RTMP (Publish) TS over IP HLS
Power	12V DC input POE input
Dimensions	4.1in x 2.8in x 1in [103.8mm x 71.2mm x 26mm]
