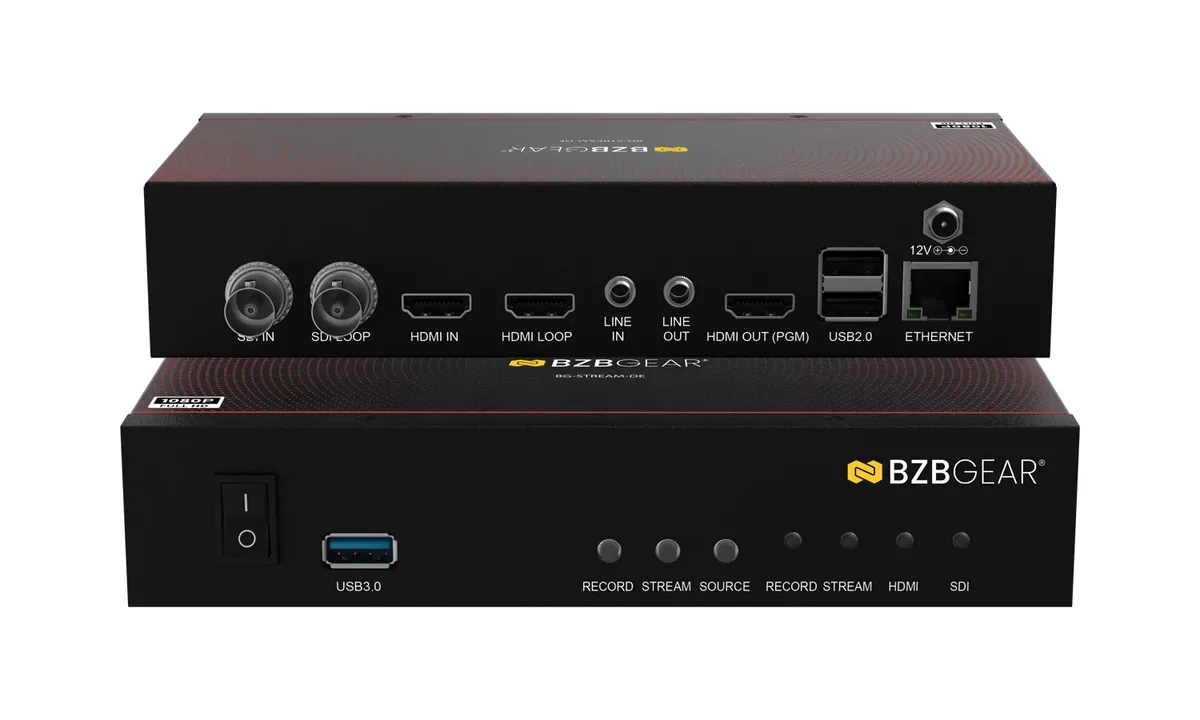

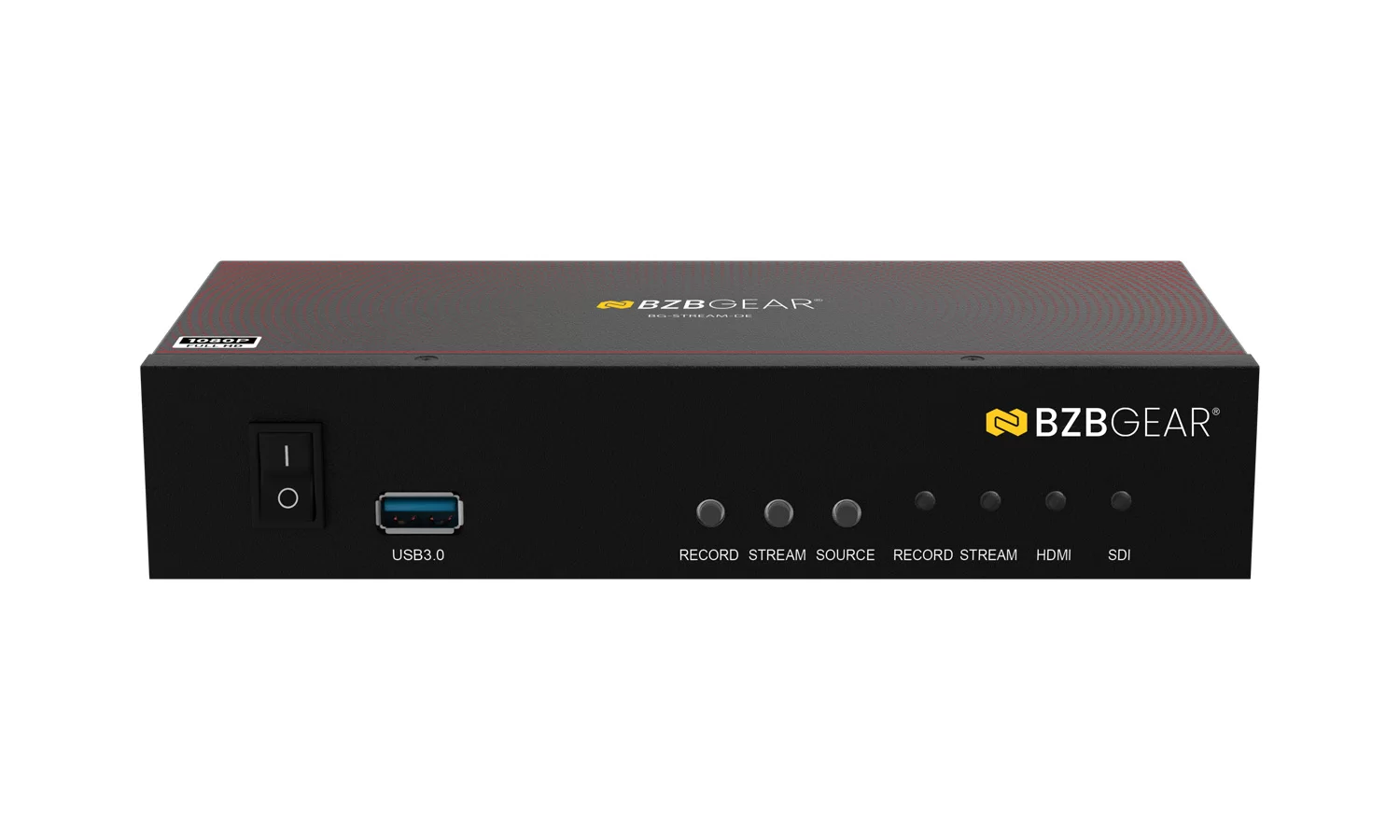

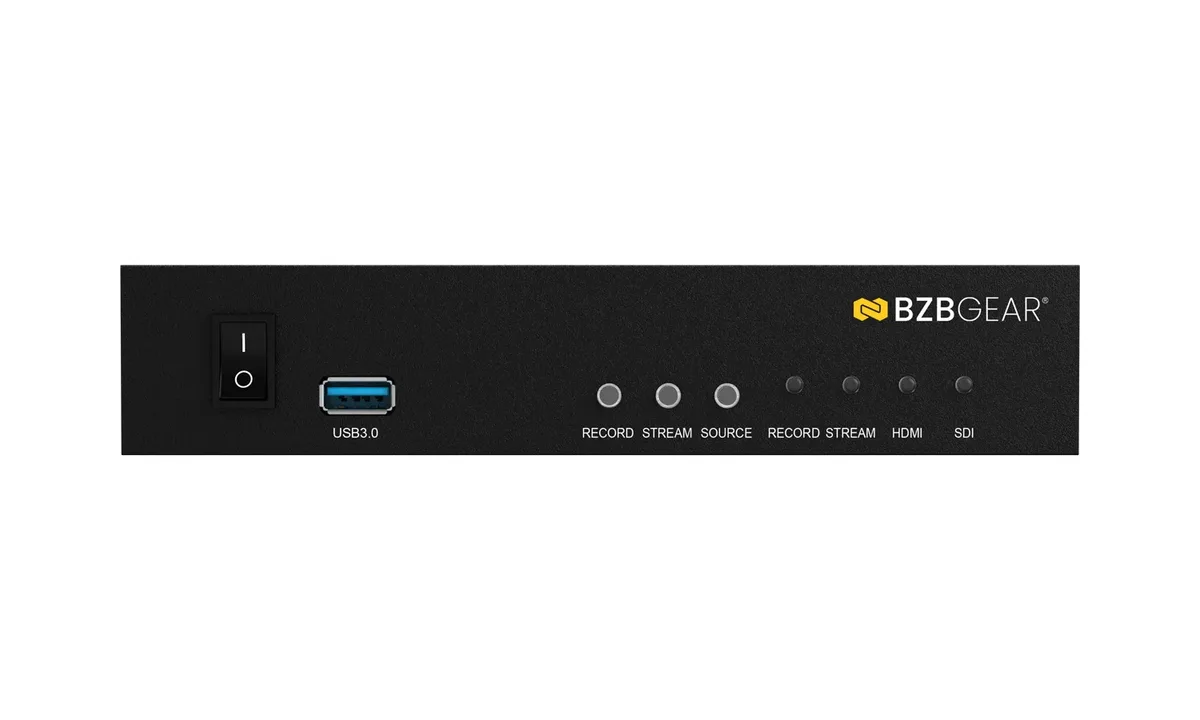

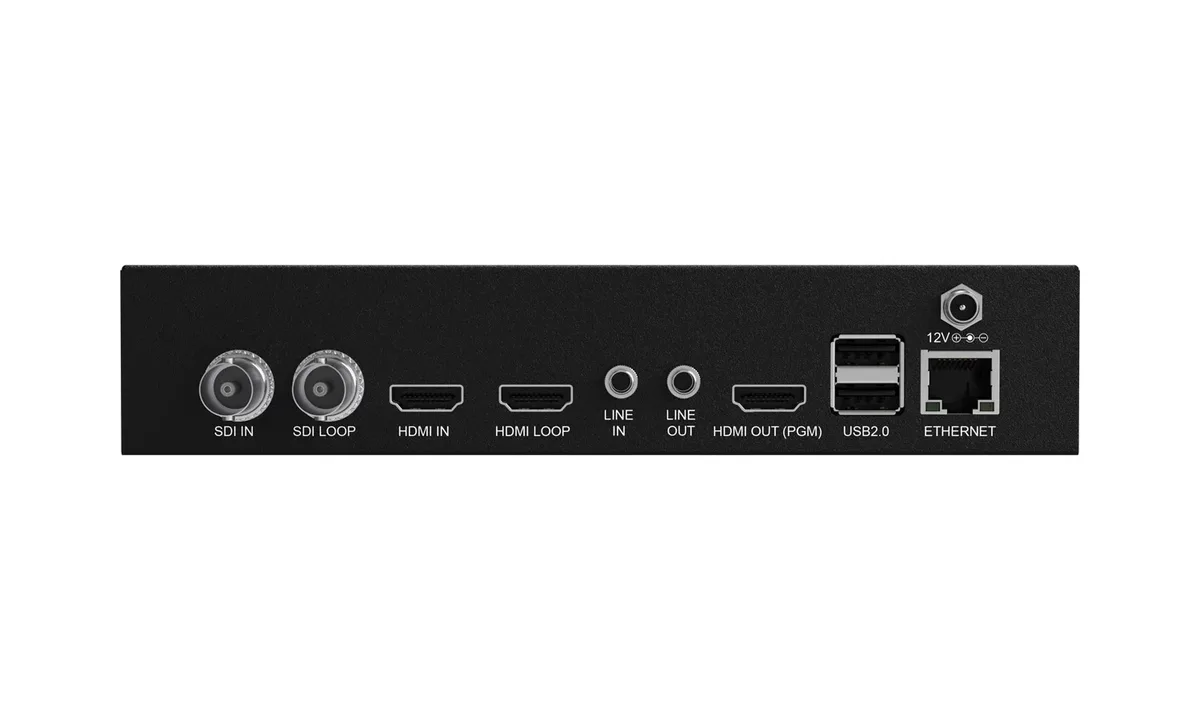

BZBGear BG-STREAM-DE Encoder, Decoder and Recorder
The STREAM-DE does all three jobs in one box: it encodes an SDI or HDMI source to the network, decodes a network stream back to HDMI, and records to a USB 3.0 drive as MP4, TS or MOV. For a small venue that streams and also needs an archive copy, that removes a second device and a second power supply from the rack.
Both inputs have loop-through outputs so the signal can carry on to a switcher or monitor, and a 3.5 mm jack is provided for audio in and out. Streaming covers TS over UDP unicast and multicast, RTSP, RTMP and HLS at up to 1080p60, with 4K output available on the HDMI program port. The NDE model adds NDI and Dante AV-H under separate licences.
| Inputs | Video: 1x HDMI 1x SDI Audio: 1x 3.5 mm Phone Jack |
|---|---|
| Outputs | Video: 1x HDMI 2.0 (PGM) 1x HDMI (Loop-through) 1x SDI (Loop-through) Audio: 1x 3.5 mm Phone Jack |
| Video support | H.265/H.264/AVC, Baseline/Main/High Profile Support input / output resolutions: 3840x2160p@60/50fps (Output only) 3840x2160p@30/25/24fps (Output only) 1920x1080p@60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@60fps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
| Maximum frame rate | 1920x1080p@60/50fps |
| Recording modes | Hardware Compression, Real-Time Mode |
| Recording formats | MP4 / TS / MOV |
| Network | 1x RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Streaming protocols | NDI Support ( Separate License with NDI Required ) Dante AV-H ( Separate License with Dante AV-H Required ) TS Over UDP ( Unicast & Multicast ) RTSP Over HTTP/TCP/UDP ( RTSP Elementary Stream ) RTMP ( Publish ) HLS |
| Additional features | Web UI for System Configuration Firmware Upgradable LED Indicator 1x USB 3.0 Host for USB Storage 2x USB 2.0 (For Keyboard and mouse usage) |
| Dimensions (W x D x H) | 8.0in x 3.9in x 1.6in [203mm x 100mm x 41mm] |
