BZBGear BG-STREAM-E HDMI Streaming Encoder
The STREAM-E turns an HDMI source into two things at once: an IP stream on the network and a UVC device on the USB 3.0 port. That second output is the useful part - a camera or a switcher output appears to a PC as a plain webcam, so it drops into Zoom, Teams or OBS with no capture card and no driver.
On the network side it publishes RTSP, RTMP, HLS, TS over IP and SRT, with H.265, H.264 or AVC encoding at up to 1080p60 and AAC-LC audio. The whole unit is powered over Ethernet and configured from a web interface. NDI and Dante AV-H are available on the NE model; both require the corresponding licence.

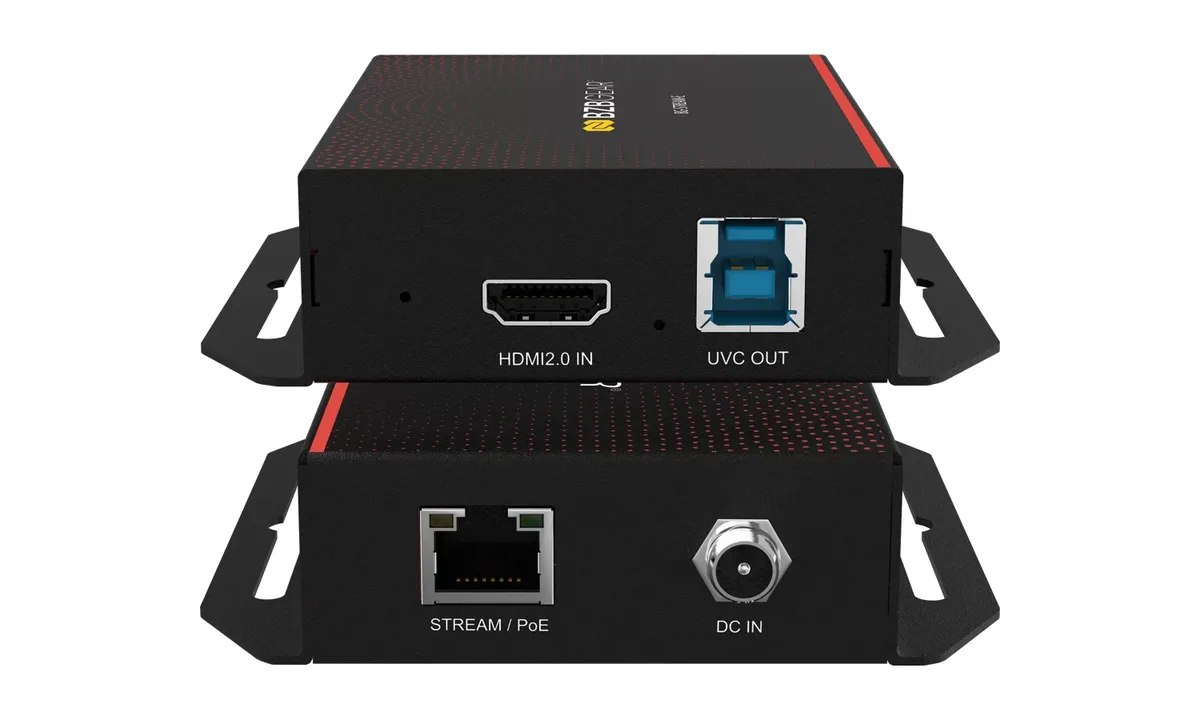

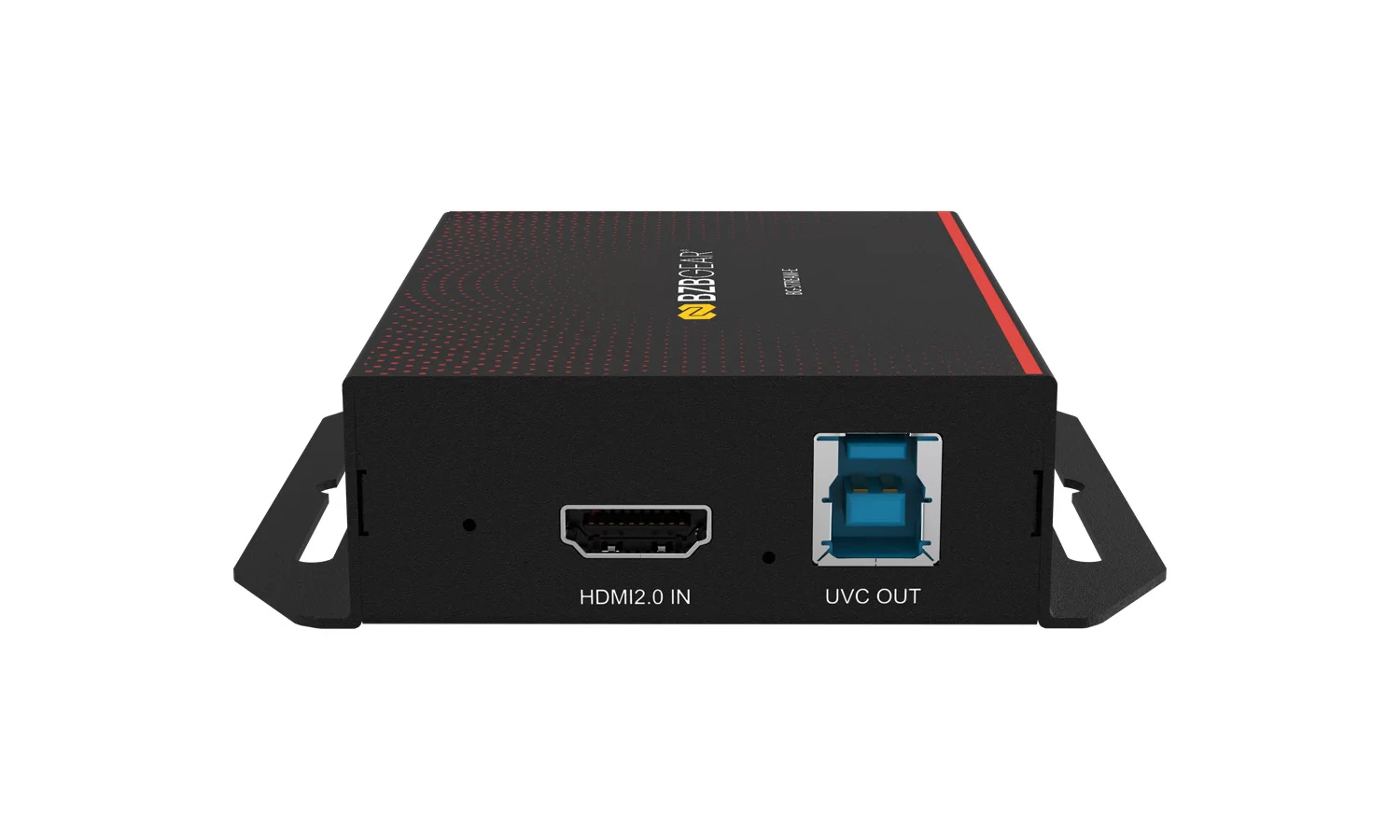

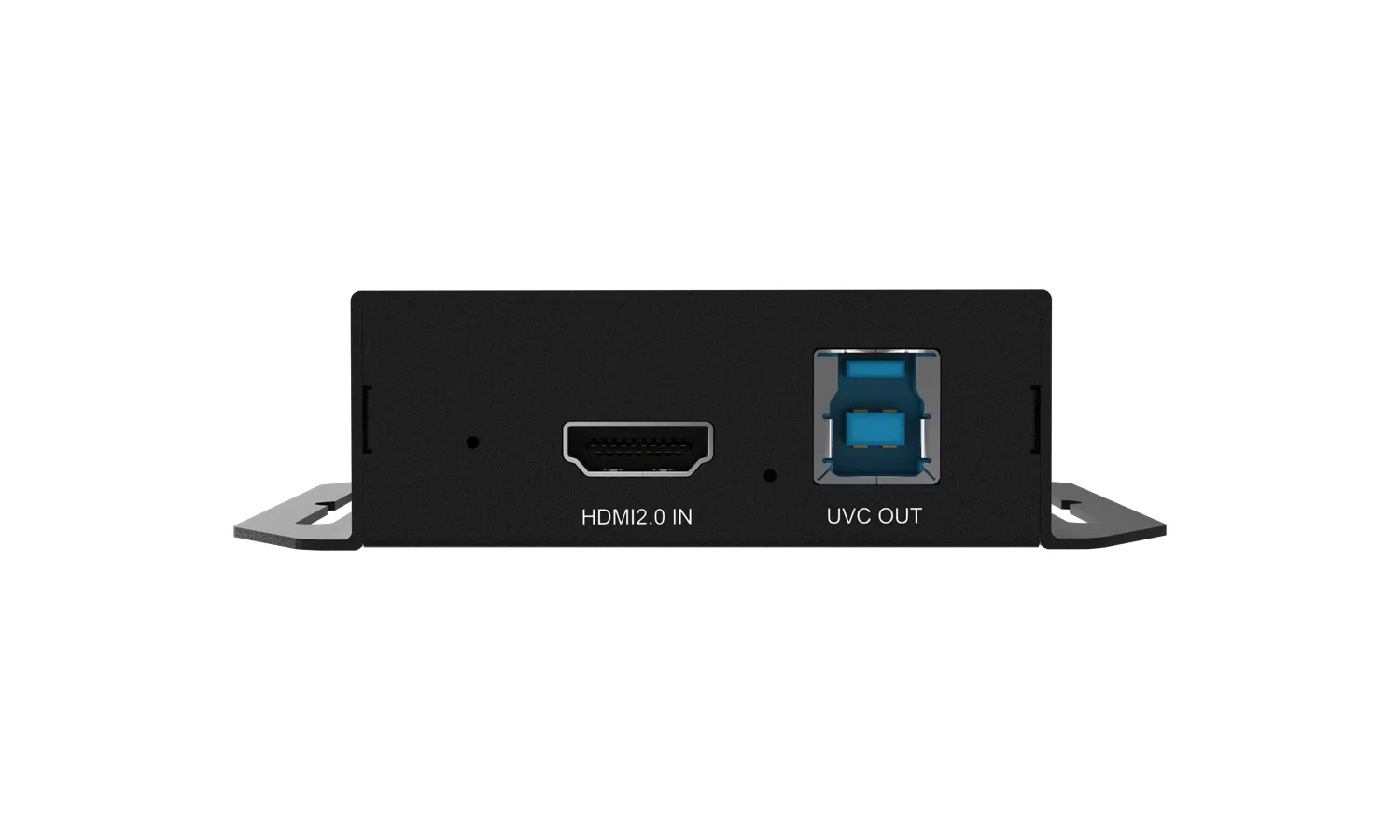

| Input | Video: 1x HDMI |
|---|---|

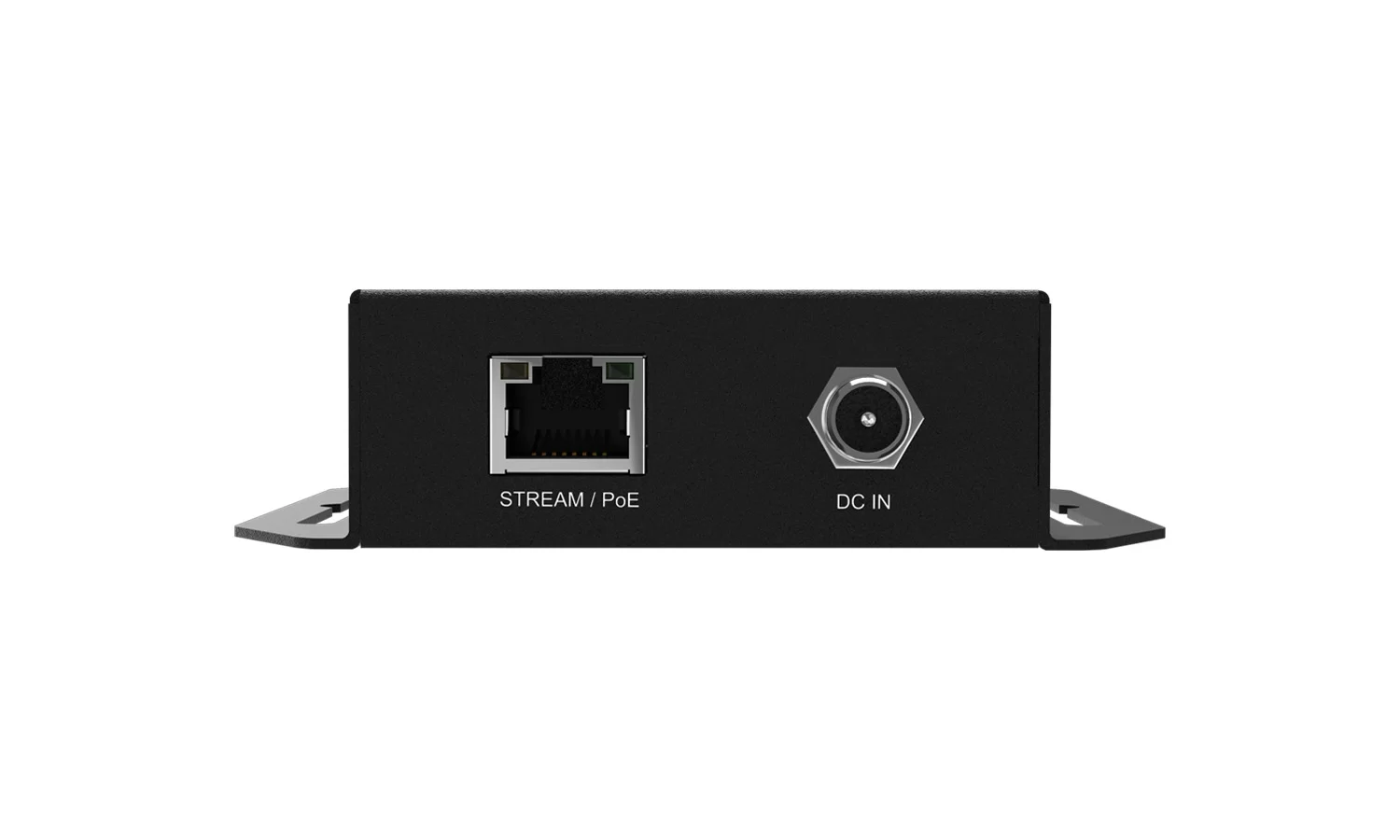

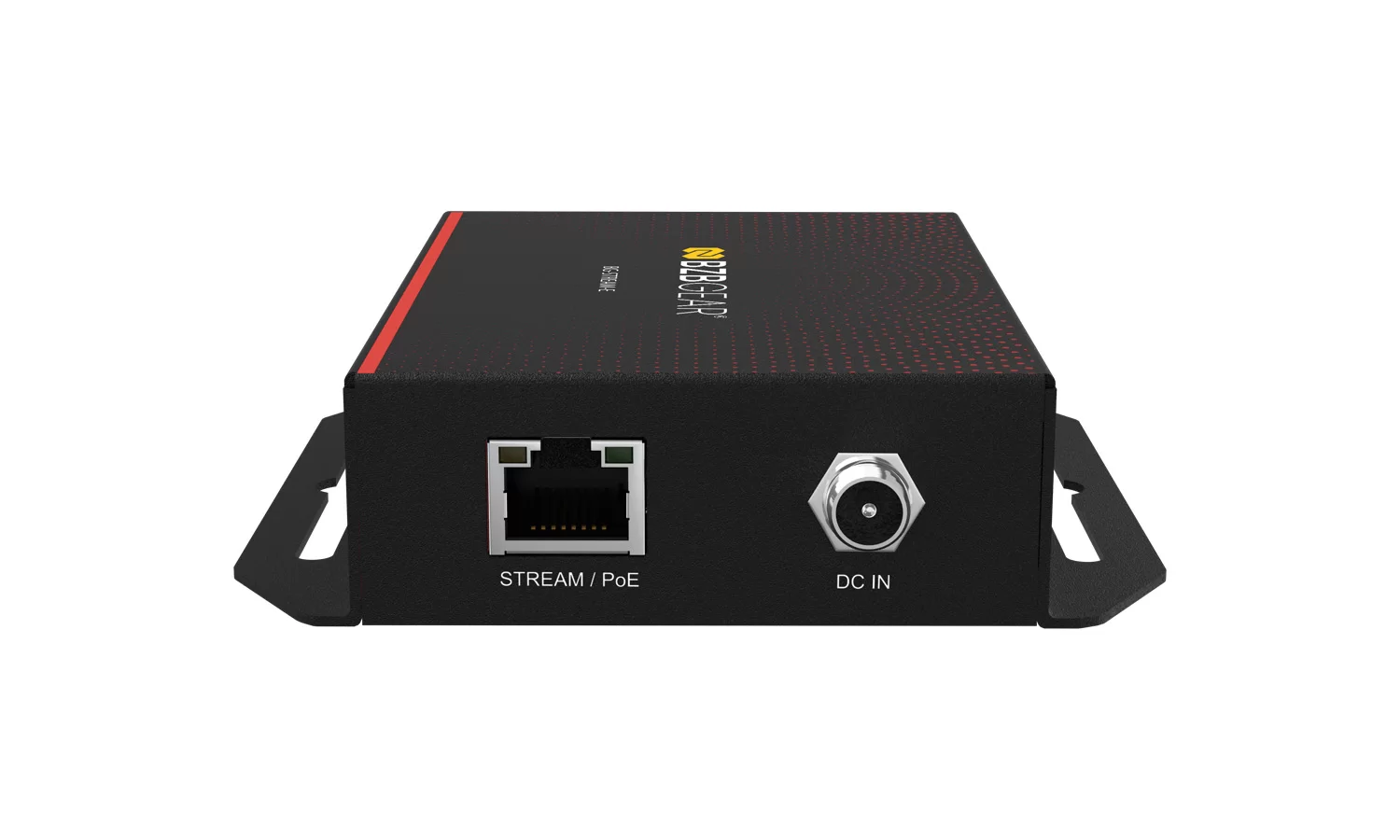

| Outputs | Video: 1x RJ45 (RTSP/RTMP/HLS/TS/SRT/NDI HX/Dante AV-H Support) 1x USB 3.0 Type B (UVC) output |
| Video support | H.265/H.264/AVC, Baseline/Main/High Profile Supported HDMI output Resolutions: 1920x1080p@60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@60fps 720x576p@50fps |
| Maximum frame rate | 1920x1080p@60/50fps |
| Audio | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit |
| Network | 1x RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Streaming protocols | NDI Support (Separate License with NDI Required) Dante AV-H (Separate License with Dante AV-H Required) RTSP over UDP/TCP/Multicast/HTTP RTMP (Publish) TS over IP HLS |
| Power | DC Input PoE Support |
| Dimensions | 4.1in x 2.8in x 1in [103.8mm x 71.2mm x 26mm] |
