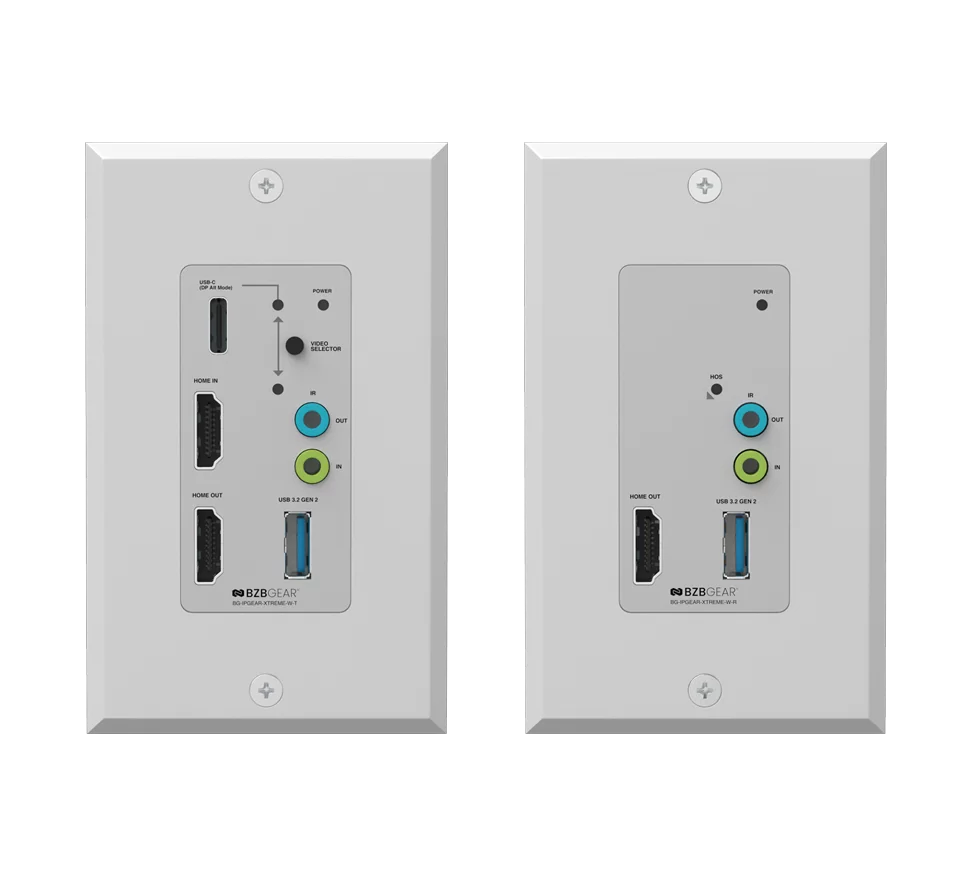

BZBGear BG-IPGEAR-XTREME-W-R Wall Plate Decoder
The XTREME-W-R is the receiver half of the wall plate pair. It sits behind a display or at a work position, joins the multicast group on the gigabit network and puts the video out locally, which keeps the decoder out of sight and off the equipment shelf.
It is a decoder only. It will take a feed from any XTREME encoder on the network, including the standard transceivers and the XTREME PRO, so a source encoded in the rack can land on a plate in the room.
| Role | Receiver / decoder |
|---|---|
| HDMI compliance | HDMI 2.1 |
| Video support | Up to 4K@120Hz 4:4:4 |
| Transmission distance | Up to 170 m (560 ft) over Cat.5e/6/6a/7 |
| Video inputs supported | HDMI, DisplayPort and USB-C (Alt Mode DP 1.4) |
| USB | USB 3.1 for UVC devices |
| IR | Bi-directional IR pass-through |
| Network | 1 Gigabit Ethernet switch with IGMP Snooping; 802.1Q VLAN supported |
| Distribution modes | Point-to-point, point-to-multipoint and multicast |
| Form factor | Wall plate |
| System compatibility | Interoperable with BG-IPGEAR-XTREME and BG-IPGEAR-XTREME-PRO on the same network |
