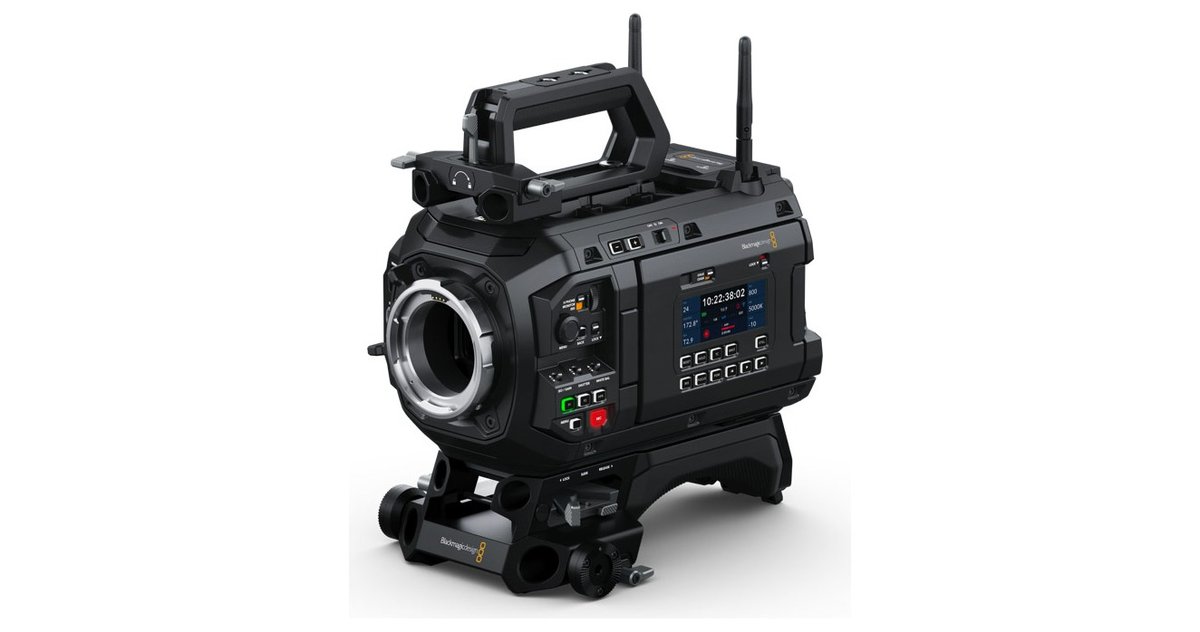

Blackmagic URSA Cine 12K LF 100G
URSA Cine 12K LF 100G is a large format digital film camera built around a 35.64mm x 23.32mm RGBW sensor that shoots up to 12,288 x 8040 in 12K 3:2 open gate with 16 stops of dynamic range. The full frame sensor and native ISO 800 give a clean, filmic image with the resolution headroom to reframe and stabilize in post. Button activated ND filters, an interchangeable lens mount, and Blackmagic RAW recording make it a complete acquisition platform for episodic, feature, and high end commercial work.
This kit is the full production build: it ships with both PL and EF lens mounts, a Cine Handle, top rod mount, Cine Baseplate, a Media Module 8TB, and a Pelican 1510 case with custom foam. A 100G QSFP28 port carries SMPTE-2110 IP video for live and networked workflows. Blackmagic part number BMD-CINEURSAAB12KLFB1.
| Sensor | 35.64mm x 23.32mm large format RGBW |
|---|---|
| Resolution | Up to 12,288 x 8040 (12K 3:2 open gate) |
| Dynamic Range | 16 stops |
| Native ISO | 800 |
| Lens Mount | PL mount, interchangeable EF mount included |
| ND Filters | Clear, 2-stop, 4-stop, 6-stop IR ND |
| Network | 1 x 100G QSFP28 (SMPTE-2110) |
| Media | Blackmagic Media Module 8TB |
| Max Frame Rate | 80 fps at 12K open gate |
| Included | PL and EF mounts, Cine Handle, top rod mount, baseplate, Media Module 8TB, Pelican 1510 case |
| Part Number | BMD-CINEURSAAB12KLFB1 |
