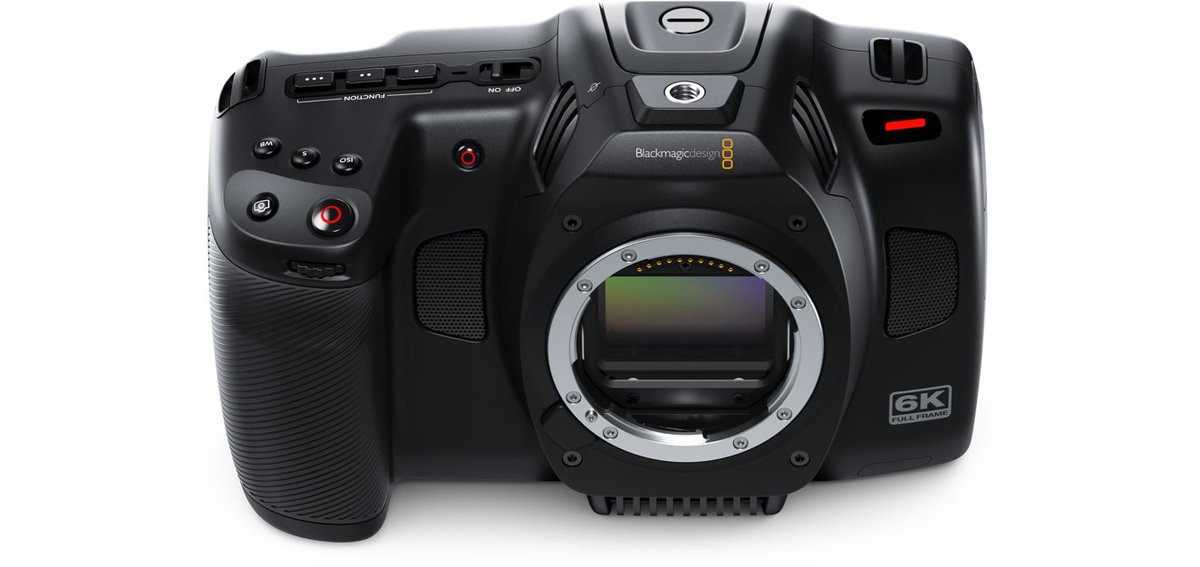

Blackmagic Cinema Camera 6K

The Blackmagic Cinema Camera 6K is a handheld 6K digital film camera built around a 6048 x 4032 full frame HDR sensor, roughly three times the area of a Super 35 chip. That large sensor gives you shallow depth of field and lets you shoot anamorphic lenses uncropped for a true cinematic look. It carries 13 stops of dynamic range and dual native ISO of 400 and 3200 extending to 25,600, so it holds detail in highlights and shadows and stays clean in low light. An optical low pass filter tames moire and aliasing for cleaner detail.

The camera uses an L-Mount with a large 51.6mm diameter for full frame and vintage glass from Leica, Panasonic, and Sigma. It records 12-bit Blackmagic RAW for a full-latitude negative plus real time H.264 proxies for fast editing, capturing to CFexpress cards or directly to USB-C disks. Open Gate 3:2 runs to 36 fps, 6K 2.4:1 to 60 fps, and 4K DCI to 60 fps. DaVinci Resolve Studio for Mac and Windows is included in the box. Blackmagic part number BMD-CINECAM60KLFL.

  • Effective Sensor Size36mm x 24mm (Full Frame)
  • Screen5” 1920 x 1080.
  • Audio Channels4 channels.
  • Storage RatesStorage rates based on 30 frames per second.
  • Storage Temperature-20°to 45°C (-4° to 113°F)
Part NumberBMD-CINECAM60KLFL
Effective Sensor Size36mm x 24mm (Full Frame)
Lens MountActive L-Mount.
Lens ControlIris and focus on supported lenses.
Dynamic Range13 Stops.
Dual Native ISO400 and 3200
Shooting Resolutions6048 x 4032 (Open Gate 3:2) up to 36 fps; 4832 x 4032 (Anamorphic 6:5) up to 36 fps; 6048 x 3200 (6K DCI 17:9) up to 48 fps; 6048 x 2520 (6K 2.4:1) up to 60 fps; 4096 x 3072 (Super 35 4:3) up to 50 fps; 4096 x 2160 (4K DCI 17:9) up to 60 fps; 2112 x 1184 (Super 16 16:9) up to 100 fps; 1920 x 1080 (1080 HD 16:9) up to 120 fps
Frame RatesMaximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.
FocusAutofocus is available using compatible L-Mount lenses in single shot autofocus, continuous autofocus, object tracking autofocus and face tracking autofocus modes.
Iris ControlIris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen Dimensions5” 1920 x 1080.
Screen Brightness1500 nits
Screen TypeLCD capacitive touchscreen.
Metadata SupportAutomatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
ControlsTouchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Timecode ClockHighly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total Video InputsNone
Total Video Outputs1 x up to 1080p60
Analog Audio Inputs2 x mini XLR analog switchable between mic with support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. All audio inputs can also be used for Timecode input.
Analog Audio Outputs1 x 3.5mm headphone jack.
Computer InterfaceUSB Type-C for external drive recording, PTP camera control and software updates.
MicrophoneIntegrated stereo microphone.
Built in Speaker1 x mono speaker.
Media1 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.
Media FormatCan format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
CodecsBlackmagic RAW Constant Bitrate 3:1; Blackmagic RAW Constant Bitrate 5:1; Blackmagic RAW Constant Bitrate 8:1; Blackmagic RAW Constant Bitrate 12:1; Blackmagic RAW Constant Quality Q0; Blackmagic RAW Constant Quality Q1; Blackmagic RAW Constant Quality Q3; Blackmagic RAW Constant Quality Q5; H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
External ControlBlackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over USB Ethernet for external control via HTTP when used with REST client applications such as Postman.
Blackmagic Cloud Stream RouterSupports streaming to Stream Router application in Blackmagic Cloud.
Storage Type1 x CFexpress Type B; 1 x high speed USB-C expansion port for external media.
Recording FormatsBlackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies.
Recording ModesStandard record mode. Pre record mode with assignable pre record duration: 5 sec, 10 sec, 20 sec, 30 sec, 1 min, 2 min, 5 min, 10 min.
Audio Channels4 channels.
Audio RecordingUncompressed linear PCM 24-bit, 48kHz embedded audio in Blackmagic RAW.
Storage RatesStorage rates based on 30 frames per second.
6048 X 4032 (6K Open Gate 3:2)Blackmagic RAW 3:1 - 370 MB/s; Blackmagic RAW 5:1 - 223 MB/s; Blackmagic RAW 8:1 - 140 MB/s; Blackmagic RAW 12:1 - 94 MB/s; Blackmagic RAW Q0 - 278 to 555 MB/s; Blackmagic RAW Q1 - 186 to 444 MB/s; Blackmagic RAW Q3 - 124 to 318 MB/s; Blackmagic RAW Q5 - 75 to 186 MB/s
4832 X 4032 (Anamorphic 6:5)Blackmagic RAW 3:1 - 297 MB/s; Blackmagic RAW 5:1 - 179 MB/s; Blackmagic RAW 8:1 - 112 MB/s; Blackmagic RAW 12:1 - 75 MB/s; Blackmagic RAW Q0 - 223 to 445 MB/s; Blackmagic RAW Q1 - 149 to 356 MB/s; Blackmagic RAW Q3 - 100 to 255 MB/s; Blackmagic RAW Q5 - 60 to 149 MB/s
6048 X 3200 (6K DCI 17:9)Blackmagic RAW 3:1 - 295 MB/s; Blackmagic RAW 5:1 - 177 MB/s; Blackmagic RAW 8:1 - 111 MB/s; Blackmagic RAW 12:1 - 75 MB/s; Blackmagic RAW Q0 - 221 to 441 MB/s; Blackmagic RAW Q1 - 148 to 353 MB/s; Blackmagic RAW Q3 - 99 to 253 MB/s; Blackmagic RAW Q5 - 60 to 148 MB/s
6048 X 2520 (6K 2.4:1)Blackmagic RAW 3:1 - 233 MB/s; Blackmagic RAW 5:1 - 140 MB/s; Blackmagic RAW 8:1 - 88 MB/s; Blackmagic RAW 12:1 - 59 MB/s; Blackmagic RAW Q0 - 175 to 348 MB/s; Blackmagic RAW Q1 - 117 to 279 MB/s; Blackmagic RAW Q3 - 78 to 199 MB/s; Blackmagic RAW Q5 - 47 to 117 MB/s
4096 X 3072 (Super 35 4:3)Blackmagic RAW 3:1 - 192 MB/s; Blackmagic RAW 5:1 - 116 MB/s; Blackmagic RAW 8:1 - 73 MB/s; Blackmagic RAW 12:1 - 49 MB/s; Blackmagic RAW Q0 - 145 to 288 MB/s; Blackmagic RAW Q1 - 97 to 231 MB/s; Blackmagic RAW Q3 - 65 to 165 MB/s; Blackmagic RAW Q5 - 39 to 97 MB/s
4096 X 2160 (4K DCI 17:9)Blackmagic RAW 3:1 - 136 MB/s; Blackmagic RAW 5:1 - 82 MB/s; Blackmagic RAW 8:1 - 52 MB/s; Blackmagic RAW 12:1 - 35 MB/s; Blackmagic RAW Q0 - 102 to 203 MB/s; Blackmagic RAW Q1 - 69 to 163 MB/s; Blackmagic RAW Q3 - 46 to 117 MB/s; Blackmagic RAW Q5 - 28 to 69 MB/s
2112 X 1184 (Super 16 16:9)Blackmagic RAW 3:1 - 40 MB/s; Blackmagic RAW 5:1 - 24 MB/s; Blackmagic RAW 8:1 - 16 MB/s; Blackmagic RAW 12:1 - 11 MB/s; Blackmagic RAW Q0 - 30 to 59 MB/s; Blackmagic RAW Q1 - 21 to 48 MB/s; Blackmagic RAW Q3 - 14 to 34 MB/s; Blackmagic RAW Q5 - 9 to 21 MB/s
1920 X 1080Blackmagic RAW 3:1 - 33 MB/s; Blackmagic RAW 5:1 - 20 MB/s; Blackmagic RAW 8:1 - 13 MB/s; Blackmagic RAW 12:1 - 9 MB/s; Blackmagic RAW Q0 - 25 to 49 MB/s; Blackmagic RAW Q1 - 17 to 40 MB/s; Blackmagic RAW Q3 - 12 to 29 MB/s; Blackmagic RAW Q5 - 8 to 17 MB/s; Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter.
Software IncludedBlackmagic OS; DaVinci Resolve Studio for Mac and Windows including activation key; Blackmagic Camera Setup; Blackmagic RAW Player; Blackmagic RAW QuickLook Plugin; Blackmagic RAW SDK; Blackmagic RAW Speed Test
Operating SystemsMac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power Supply1 x External 12V power supply.
External Power Input1 x 2-pin locking connector.
Battery TypeNP-F570
Battery LifeApproximately 60 minutes; (recording 6K RAW at 24 fps to CFexpress with screen brightness at 50%)
Power12V-20V.
Operating Temperature0°to 40°C (32° to 104°F)
Storage Temperature-20°to 45°C (-4° to 113°F)
Relative Humidity0% to 90% non-condensing
SourceFull specifications on blackmagicdesign.com
Hands On with the Blackmagic Cinema Camera 6K - Full Frame L-Mount
Full-Frame Blackmagic Cinema Camera 6K - Review with Footage
8items in the box
  • Blackmagic Cinema Camera 6K
  • Lens turret dust cap
  • Camera strap
  • 30W power supply with locking connector and international adapters
  • NP-F570 battery
  • NP-F series battery USB charger
  • Welcome booklet
  • DaVinci Resolve Studio activation key
