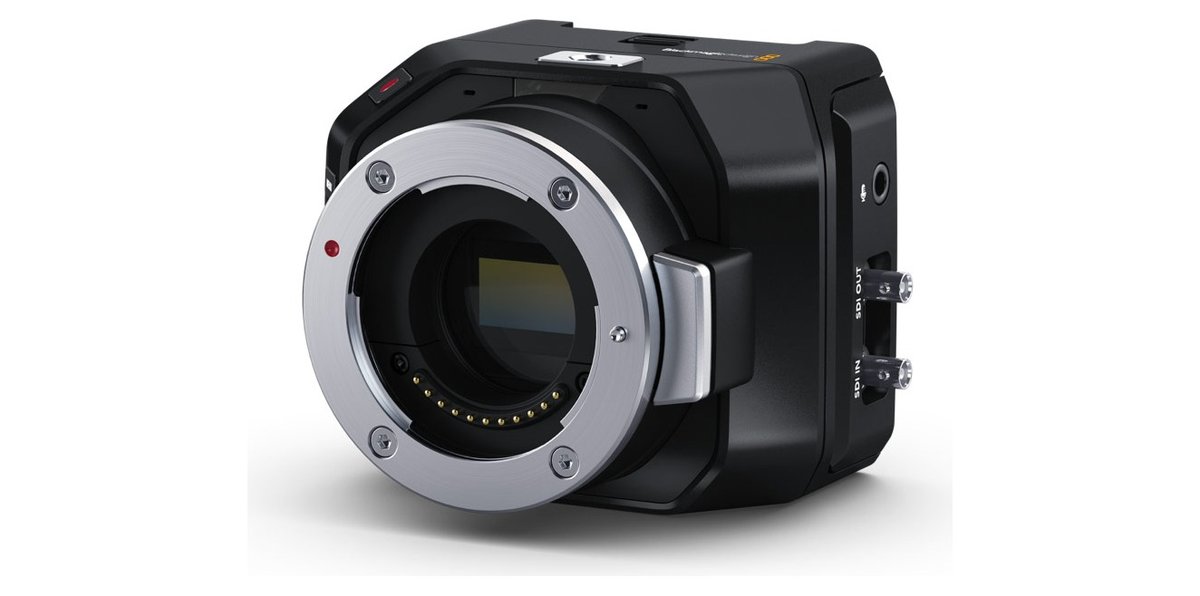

Blackmagic Micro Studio Camera 4K G2

The Blackmagic Micro Studio Camera 4K G2 packs a cinematic 4K sensor into a tiny box built for multi-camera live production, POV rigs and remote positions. The 17.78 x 10mm CMOS sensor resolves 4096 x 2160 with 13 stops of dynamic range and a dual native ISO of 400 and 3200, so it holds its picture in low light where a small camera usually struggles. An active MFT lens mount takes native Micro Four Thirds glass or adapts to other lens families.

Both 12G-SDI and HDMI outputs carry HD and Ultra HD up to 2160p60, and a built-in color corrector lets a shader match it to other cameras in a switched program. It records Blackmagic RAW to USB disks for a standalone or ISO capture, and runs on an LP-E6 camera battery. The small body makes it easy to place where a full studio camera will not fit.

  • Effective Sensor Size17.78mm x 10mm (Four Thirds)
  • Storage Type1 x USB-C 3.1 Gen 1 expansion ports for external media.
  • Audio Channels2 channels.
  • Storage RatesStorage rates based on 30 frames per second.
  • Storage Temperature-20° to 45° C (-4° to 113° F)
Part #BMD-CINSTUDMFT/UHD/MRG2
Effective Sensor Size17.78mm x 10mm (Four Thirds)
Lens MountActive MFT Mount.
Lens ControlIris, focus, zoom on supported lenses.
Dynamic Range13 Stops.
Dual Native ISO0dB and 18dB gain.
Sensitivity at 0dB GainF11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance.
Signal to Noise Ratio63dB for 2160p.
Shooting Resolutions3840 x 2160 (Ultra HD) up to 60 fps.
Frame Rates23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD.
FocusAuto focus available using compatible lenses.
Metadata SupportAutomatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Mounting Options1 x 1/4 inch (top), 3 x 1/4 inch (bottom).
SDI Video Inputs1 x Micro BNC
Video Outputs1 x 12G-SDI Micro BNC
SDI Rates3G, 6G, 12G
2.0 Video Outputs1
HDMI Video Outputs1 x HDMI Type A output. HDMI output is always HD, up to 1080p60.
Analog Audio Input1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Reference InputsProgram SDI Input on camera.
SDI Audio Output2 channels of program audio embedded in 3G/6G/12G-SDI.
HDMI Audio Outputs2 channels 48 kHz and 24-bit.
Remote ControlRemote camera control over SDI, HDMI or USB Ethernet with suitable adapter.
Computer Interface1 x USB Type-C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB-C Port.
MicrophoneIntegrated stereo microphone.
Built in SpeakerNone
SD Video StandardsNone
HD Video Standards1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI ComplianceSMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit.
Media1 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
Media FormatCan format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
CodecsBlackmagic RAW Constant Bitrate 3:1; Blackmagic RAW Constant Bitrate 5:1; Blackmagic RAW Constant Bitrate 8:1; Blackmagic RAW Constant Bitrate 12:1; Blackmagic RAW Constant Quality Q0; Blackmagic RAW Constant Quality Q1; Blackmagic RAW Constant Quality Q3; Blackmagic RAW Constant Quality Q5
Storage Type1 x USB-C 3.1 Gen 1 expansion ports for external media.
Recording FormatsBlackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Audio Channels2 channels.
Audio RecordingUncompressed linear PCM 24-bit, 48kHz embedded audio in Blackmagic RAW.
Storage RatesStorage rates based on 30 frames per second.
3840 X 2160 (Ultra HD)Blackmagic RAW 3:1 - 127 MB/s; Blackmagic RAW 5:1 - 77 MB/s; Blackmagic RAW 8:1 - 48 MB/s; Blackmagic RAW 12:1 - 32 MB/s; Blackmagic RAW Q0 - 96 to 190 MB/s; Blackmagic RAW Q1 - 64 to 153 MB/s; Blackmagic RAW Q3 - 43 to 109 MB/s; Blackmagic RAW Q5 - 26 to 64 MB/s; Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter.
Control5 control buttons including Set, Up, Down, Menu, and Power.
External ControlBlackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port. Camera Control REST API over USB Ethernet for external control via HTTP when used with REST client applications such as Postman.
NTPNetwork time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Web Media ManagerUsing a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
FTPDownload files from any drive attached to your camera using FTP.
SMBFile sharing using SMB.
Color CorrectorDaVinci YRGB
Live Tally Indicator1 x front facing for talent.
Software IncludedBlackmagic Camera Setup for Mac and Windows.
Operating SystemsMac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power Supply1 x External 12V DC 36W power supply.
Power Inputs1 x 12V DC locking 5.5 mm barrel connector.
Power Usage18 - 25 W.
Operating Temperature0° to 40° C (32° to 104° F)
Storage Temperature-20° to 45° C (-4° to 113° F)
Relative Humidity0% to 90% non-condensing
SourceFull specifications on blackmagicdesign.com
Review: Blackmagic Design Micro Studio Camera 4K G2 (Streaming Media)
4items in the box
  • Blackmagic Micro Studio Camera 4K G2
  • Turret dust cap
  • External 12V DC power supply with locking connector and international socket adapters
  • Welcome wallet with QR code for software download
