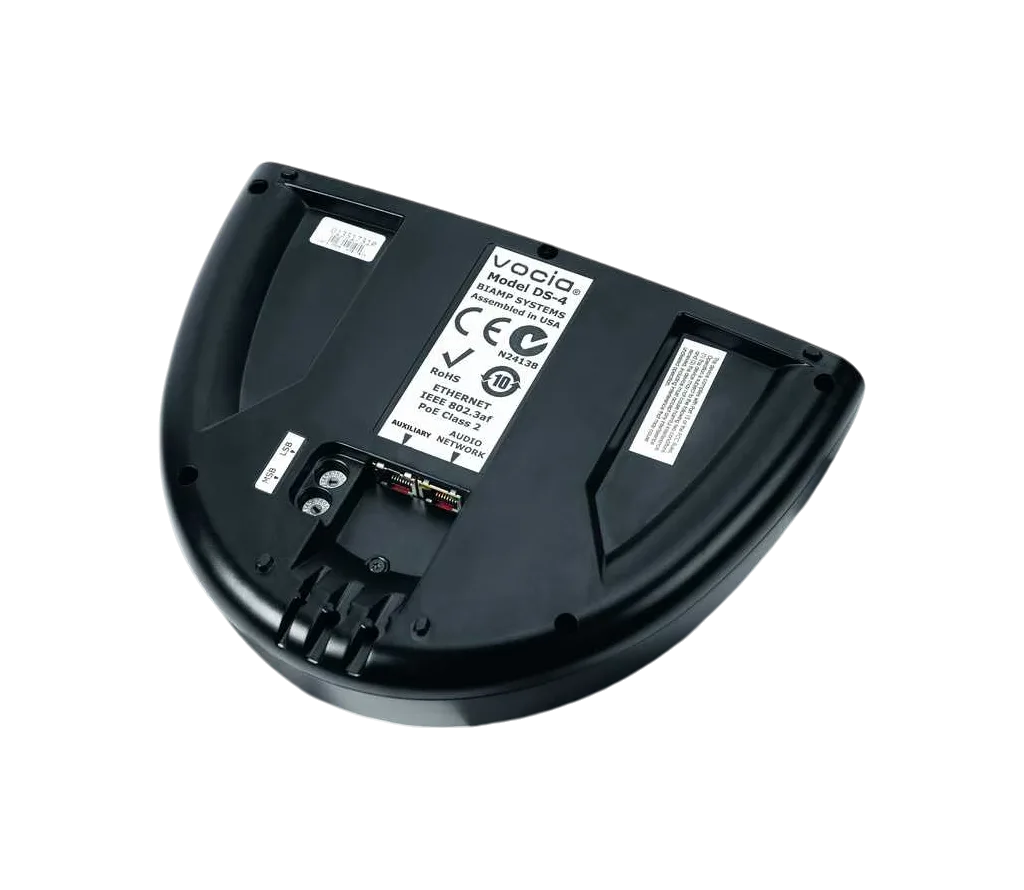

Biamp Vocia DS-4 Desk Station

The Biamp Vocia DS-4 is a desk station built for voice communication systems. Frequency response is quoted at (100Hz ~ 20kHz): +0, -1dB. Inputs are Push-to-Talk: Switch contact between pin and ground. THD+N is (100Hz ~ 8kHz): <0.05%.

Rated output power is 12V DC Out: 50mA. Nominal impedance is Input: 3k ohms.

Frequency Response	(100Hz ~ 20kHz): +0, -1dB
Impedance	Input: 3k ohms
Maximum Input	125dB SPL
Input Type	Push-to-Talk: Switch contact between pin and ground
THD+N	(100Hz ~ 8kHz): <0.05%
Sampling Rate	48kHz
Dimensions (H x W x D)	2.1 inches (54 mm) x 9.5 inches (241 mm) x 7.4 inches (187 mm)
Power Output	12V DC Out: 50mA
