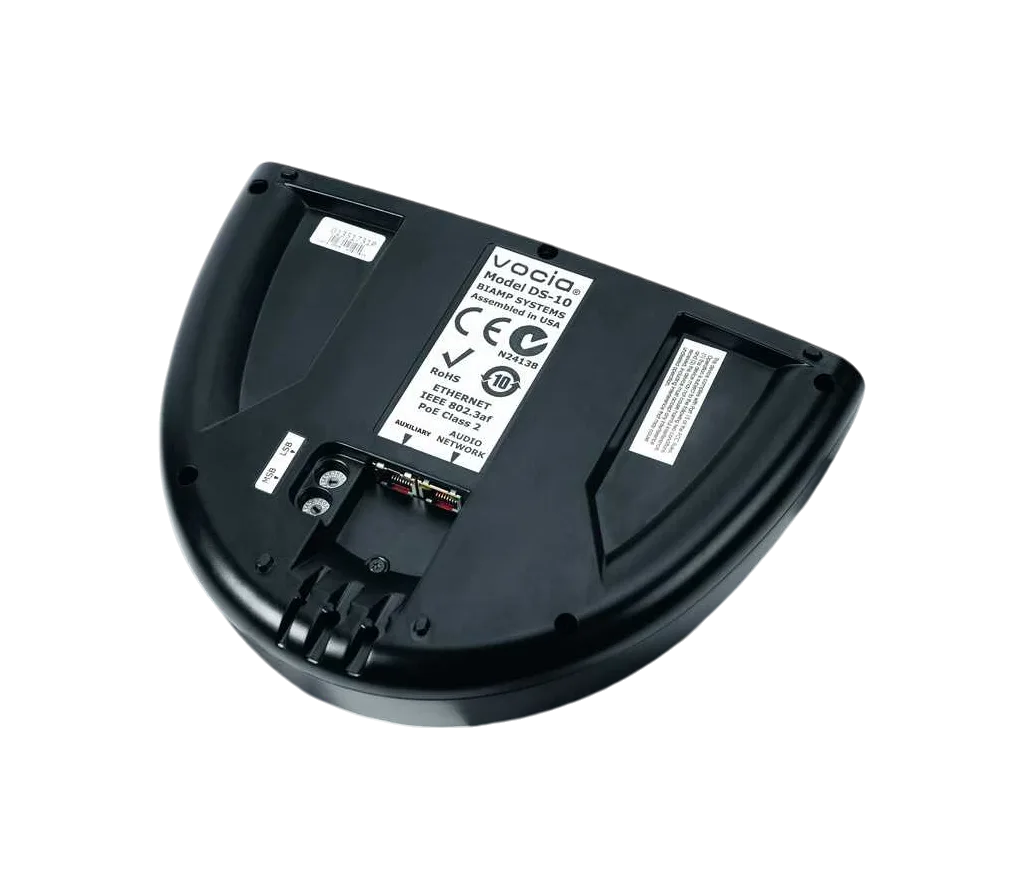

Biamp Vocia DS-10 Desk Station

The Biamp Vocia DS-10 is a desk station built for voice communication systems. Frequency response is quoted at (100Hz ~ 20kHz): +0, -1dB. Inputs are 30dB; System Headroom: 18dB. THD+N is (100Hz ~ 8kHz): <0.05%.

Rated output power is 12V DC Out: 50mA. Nominal impedance is 3k ohms. Network connections are RJ-45 with shielded Ethernet; (CAT5, CAT5e, CAT6 or CAT7). Control connection is Push-to-Talk.

Frequency Response	(100Hz ~ 20kHz): +0, -1dB
Impedance	3k ohms
Maximum Input	125dB SPL
Input Type	Effective Input Headroom: 30dB; System Headroom: 18dB
THD+N	(100Hz ~ 8kHz): <0.05%
Sampling Rate	48kHz
Dimensions (H x W x D)	2.1 inches (54 mm) x 9.5 inches (241 mm) x 7.4 inches (187 mm)
Network Connection(s)	RJ-45 with shielded Ethernet; (CAT5, CAT5e, CAT6 or CAT7)
