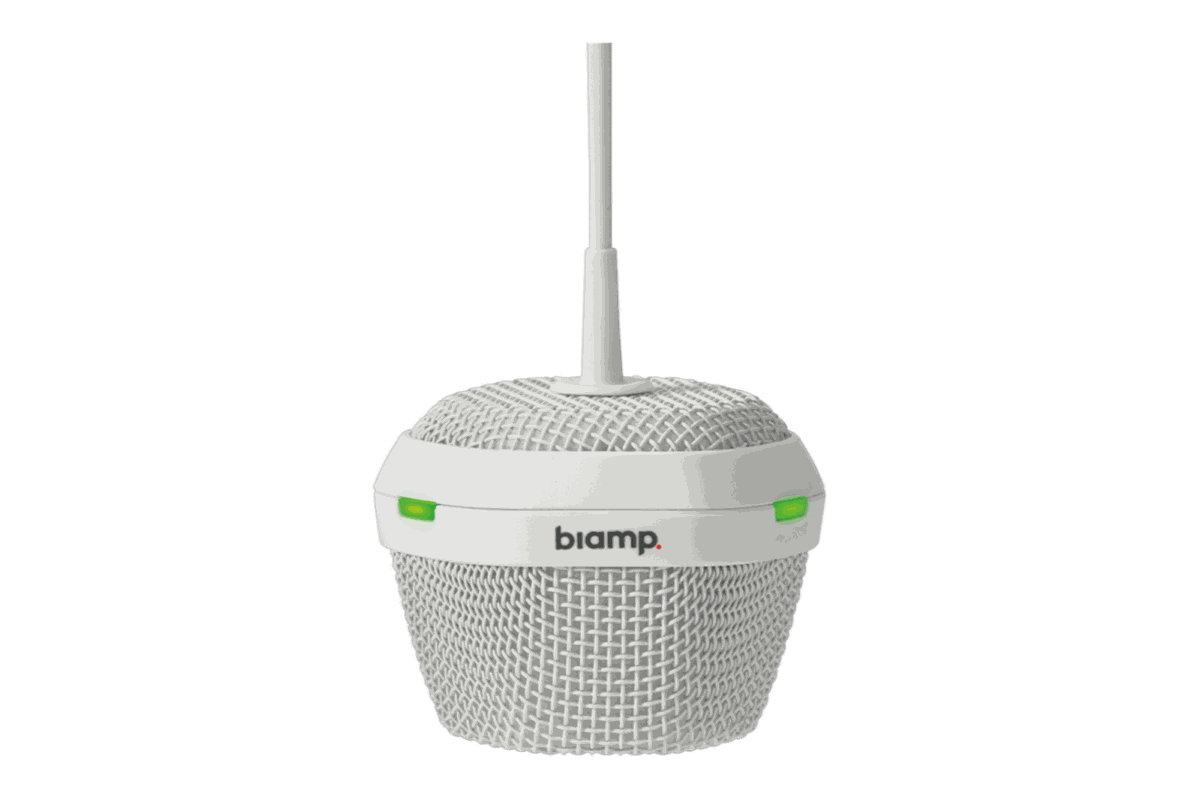

Biamp Parle TCM-1 Pendant Microphone

The Biamp Parle TCM-1 Pendant Microphone is a pendant built for business audio and installed sound systems. Frequency response is quoted at (150 Hz - 16 kHz): +/- 3dB. Rated SPL is (at 0.5% THD): 106dB.

Power handling is rated at PoE (IEEE 802.3at Class 3, 15.4W). It weighs Microphone: 0.4 lbs (0.2 kg); Plenum Box: 2.4 lbs (1.1 kg). It measures Microphone: 2 inches (51 mm); Plenum Box: 2 inches (51 mm) high by Microphone: 2.5 inches (63 mm); Plenum Box: 7 inches (178 mm) wide by Microphone: 2.5 inches (63 mm); Plenum Box: 7.125 inches (181 mm) deep. Order it in 2 versions: (Black), (White).

Frequency Response	(150 Hz - 16 kHz): +/- 3dB
Power	Plenum Box Power: PoE (IEEE 802.3at Class 3, 15.4W)
SPL	(at 0.5% THD): 106dB
Included Accessories	Plenum Box (included): Connectors: Two RJ-45: one between TCM-1 plenum box and switch, the other between TCM-1 plenum box and additional TCM-1EX plenum box
Weight	Microphone: 0.4 lbs (0.2 kg); Plenum Box: 2.4 lbs (1.1 kg)
Microphone	Pendant: Microphone Technology: 8-Element Digital Array; Polar Pattern: Beamformed; Sensitivity (94dB SPL, 1kHz): > 70dB; Dynamic Range (THD+N < 10%): 92dB, A-Weighted
Dimensions (H x W x D)	Microphone: 2 inches (51 mm); Plenum Box: 2 inches (51 mm) x Microphone: 2.5 inches (63 mm); Plenum Box: 7 inches (178 mm) x Microphone: 2.5 inches (63 mm); Plenum Box: 7.125 inches (181 mm)
Certifications	FCC Part 15B (USA); CE marked (Europe); UL and C-UL listed (USA and Canada); RoHS Directive (Europe)
