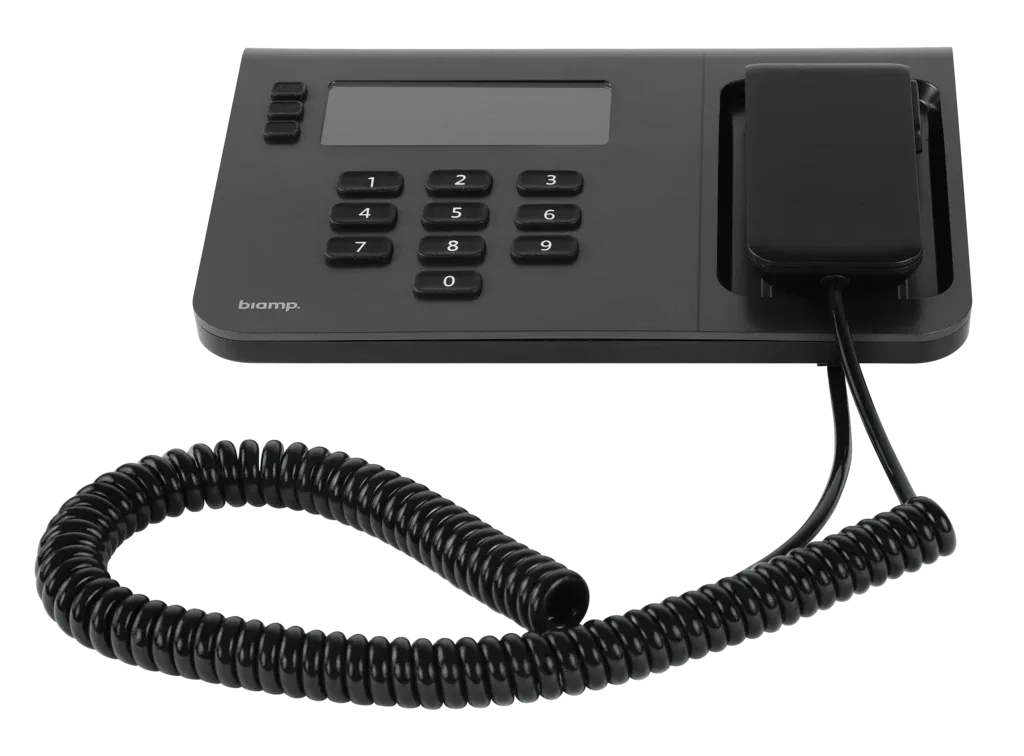

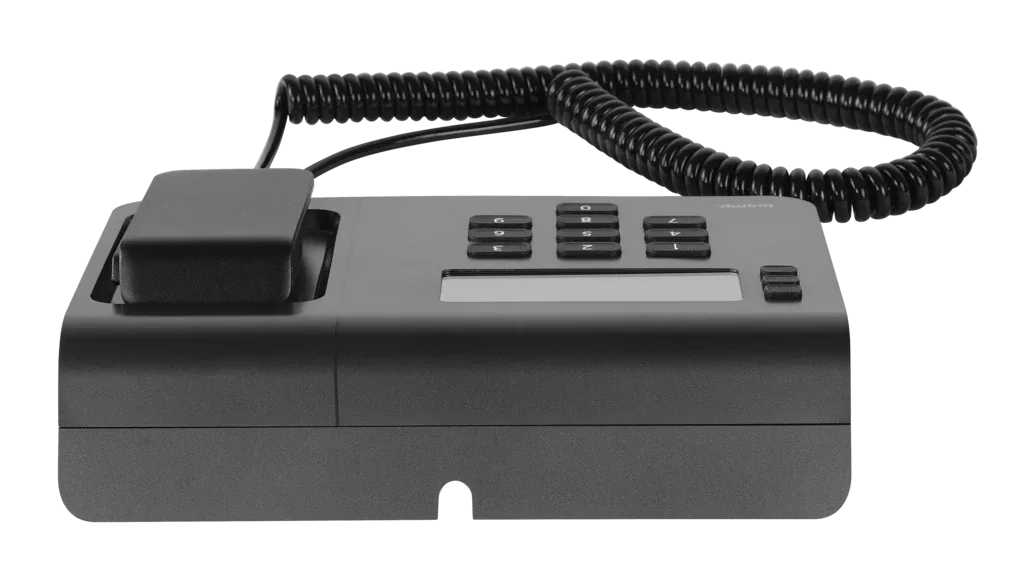

Biamp NPX H1100 Paging Station

The Biamp NPX H1100 is a paging station built for paging and announcement systems. Frequency response is quoted at (150Hz - 16kHz): +/- 3dB. Rated SPL is Maximum SPL (THD+N < 1%): 109dB. Dynamic range is 92dB, A-Weighted.

Power handling is rated at PoE (IEEE 802.3at Class 3, 15.4W). Network connections are Gigabit Ethernet, RJ-45 (CAT5e and above). It is rated for Environmental: Ambient Operating Temperature Range: 32 - 104 deg F (0 - 40 deg C); Humidity: 0-95% relative humidity (non-condensing) use.

Frequency Response	(150Hz - 16kHz): +/- 3dB
Power	PoE (IEEE 802.3at Class 3, 15.4W)
SPL	Maximum SPL (THD+N < 1%): 109dB
Dynamic Range	92dB, A-Weighted
Network Connection(s)	Gigabit Ethernet, RJ-45 (CAT5e and above)
Operating Environment	Environmental: Ambient Operating Temperature Range: 32 - 104 deg F (0 - 40 deg C); Humidity: 0-95% relative humidity (non-condensing); Altitude: 0-10,000 ft (0-3000m) MSL
Dimensions (H x W x D)	1.7 inches (42 mm) x 9.1 inches (230 mm) x 6.5 inches (166 mm)
Weight	2.7 lbs (1220 g)
