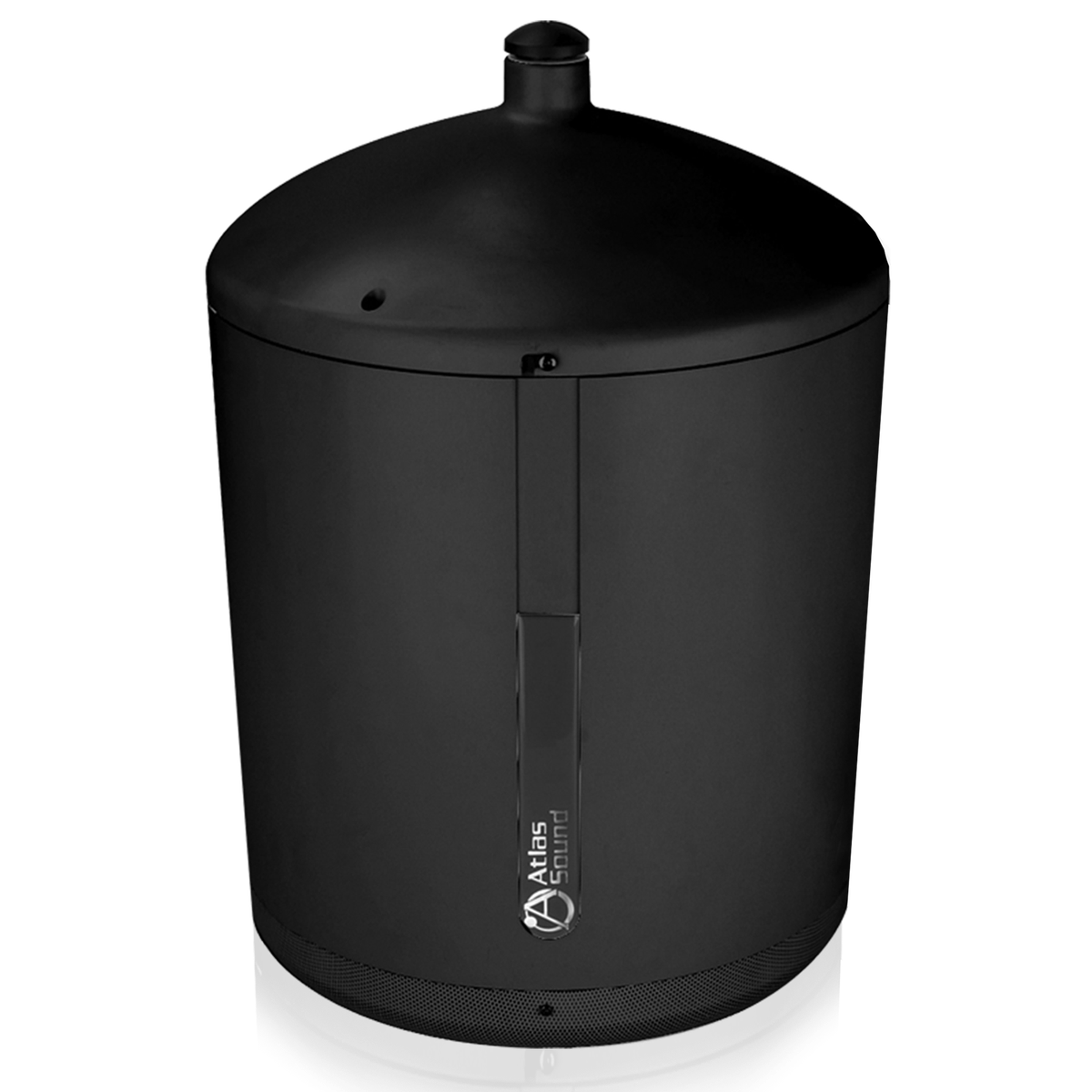

AtlasIED PM8GD-B 8" 2-way High Efficiency Pendent Speaker with 16-Watt 70V Transformer - Black
The AtlasIED PM8GD-B is an 8" pendent mount loudspeaker with 8-wattl, 70V transformer that is ideal for installations requiring page only functionality with open ceilings. It runs a coaxial (treated paper) driver over 70Hz - 15kHz. Sensitivity is 96dB Average. Power rating is 16 Watts @ 8 Ω, 70.7, Taps: 1, 2, 4, 8, and 16 Watts.
AtlasIED lists 70.7V taps @ 1, 2, 4, 8 watts and 8Ω direct input via concealed terminal block; 8" GD87 driver provides 120 degree (60 degree off-axis) coverage in the 2kHz octave band; 3 meters of 2mm cable & mounting hardware included; compatible with standard 3/4" ceiling fan hardware. It measures 12 1/4" in diameter. It carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | PM8GD-B |
|---|---|
| Speaker Type | Coaxial (Treated Paper) |
| Power Rating | 16 Watts @ 8 Ω, 70.7, Taps: 1, 2, 4, 8, and 16 Watts |
| Frequency Response | 70Hz - 15kHz |
| Sensitivity | 96dB Average |
| Dispersion | 105° (2kHz Octave Band, -6dB Points) |
| Diameter | 12 1/4" (31.115 cm) |
| Warranty Period | 60 months from date of purchase |
