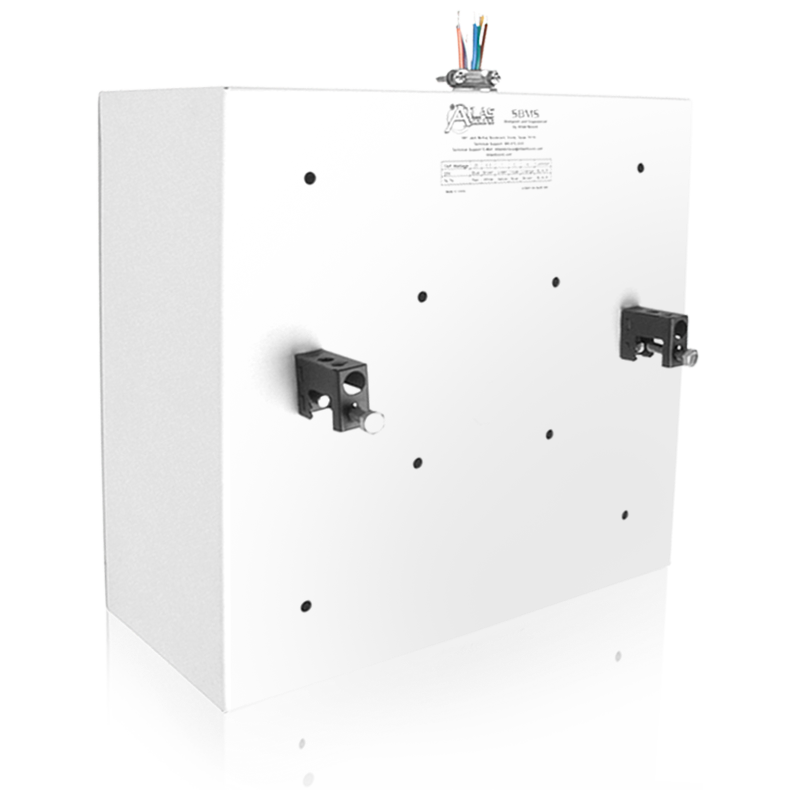

AtlasIED SBMS 8" Open Ceiling Surface Mount Speaker with Enclosure and 4-Watt 25V/70V Transformer
The AtlasIED SBMS is an 8" loudspeaker, enclosure, and transformer combo designed specifically for open ceiling applications where paging and BGM are required. It runs an 8" dual cone driver over 85Hz - 20kHz. Transformer taps are .25, .5, 1, 2, & 4 Watts. Sensitivity is 92dB.
AtlasIED lists convenient lead wire extensions assure expedited field connection; durable white powder coat finish; easy-to-install loudspeaker package includes provisions for fast clamp-mount installation to I-beams and girders; package includes an 8" dual-cone loudspeaker with a pre-mounted transformer, baffle and enclosure equipped with clamp mounts. It is safety listed to UL 1480 and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | SBMS |
|---|---|
| Speaker Type | 8" Dual Cone |
| Sensitivity | 92dB |
| Frequency Response | 85Hz - 20kHz |
| Power Taps | .25, .5, 1, 2, & 4 Watts |
| Dispersion | 105° |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
