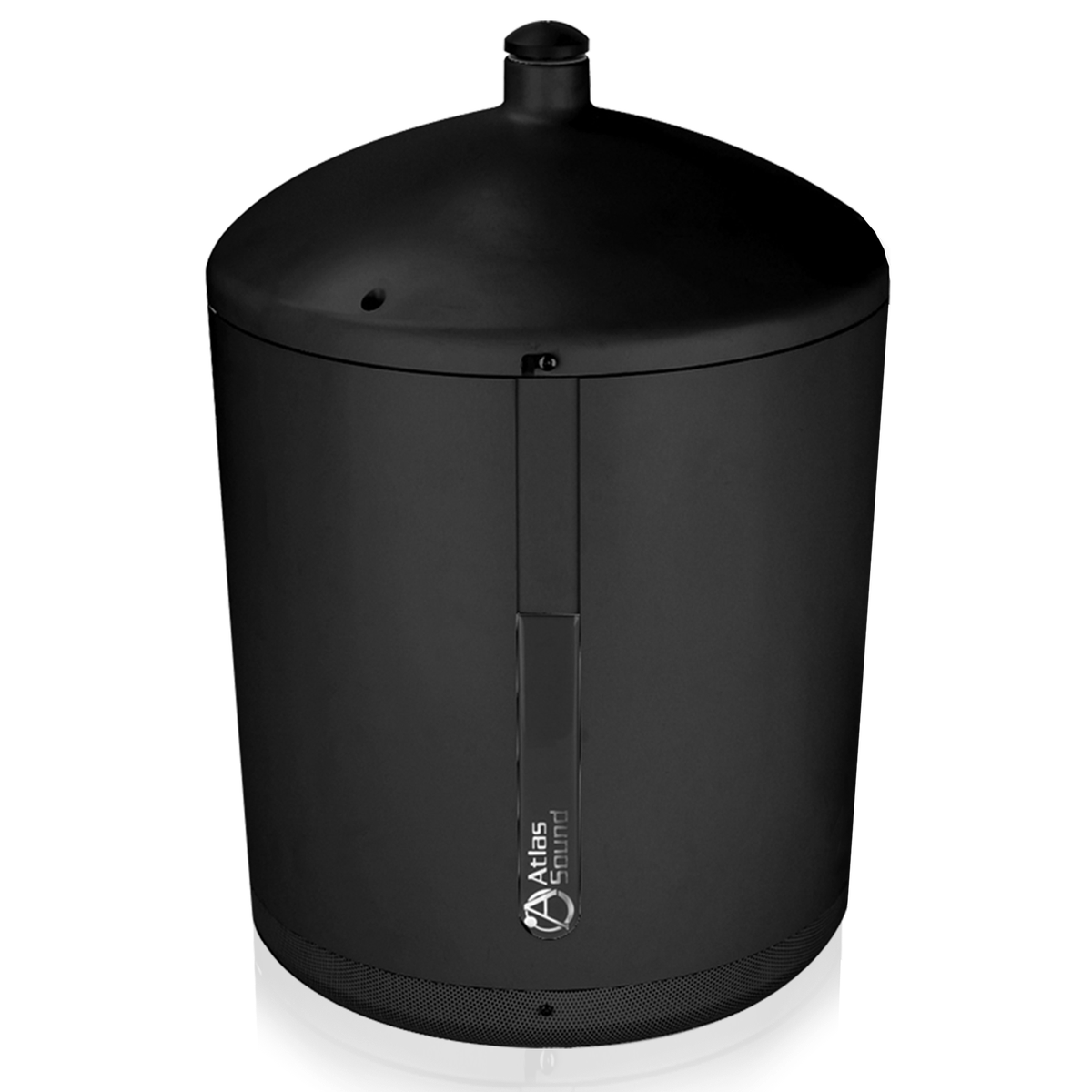

AtlasIED PM8SUB-B 8" Pendent Mount Subwoofer with 60-Watt 70.7V Transformer - Black
The AtlasIED PM8SUB-B is an 8" pendent mount subwoofer with 60-watt 70.7V transformer - black. The AtlasIED PM8SUB-B matches the sonic quality of the high performance 8" Strategy II Series FAP8SUB driver. This speaker is the same device used in AtlasIED's successful model FAP8SUB in-ceiling subwoofer package. It runs a subwoofer driver over 46Hz - 160Hz.
Mounted down-firing in an attractive enclosure, the PM8SUB provides natural sounding, wide coverage for low height installations while delivering excellent low frequency response for both music applications. Attaching a PM8SUB to most over head surfaces is a breeze. AtlasIED lists integrated 70.7V transformer with power taps at 7.5, 15, 30, & 60 watts with 8Ω bypass; 3 meters of 2mm cable & mounting hardware included; compatible with standard 3/4" ceiling fan hardware; ideal low frequency driver for high ceiling applications. It measures 16 5/8" high and 12 1/4" in diameter. It ships at 21.00 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | PM8SUB-B |
|---|---|
| Frequency Response | 46Hz - 160Hz |
| Sensitivity | 92dB Average |
| Speaker Type | Subwoofer |
| Impedance | 7.5, 15, 30, 60W & 8Ω |
| 8Ω RMS Power | 150 Watts |
| Dispersion | Omni |
| Crossover | Three Pole Design 18dB / octave @ 120Hz |
| Enclosure Volume | 1075 cu in |
| Height | 16 5/8" (42.2148 cm) |
| Diameter | 12 1/4" (31.115 cm) |
| Shipping Weight | 21.00 lbs (9.53 kgs) |
| Warranty Period | 60 months from date of purchase |
