Audio-Technica ATW-R3210 3000 Series Diversity Receiver

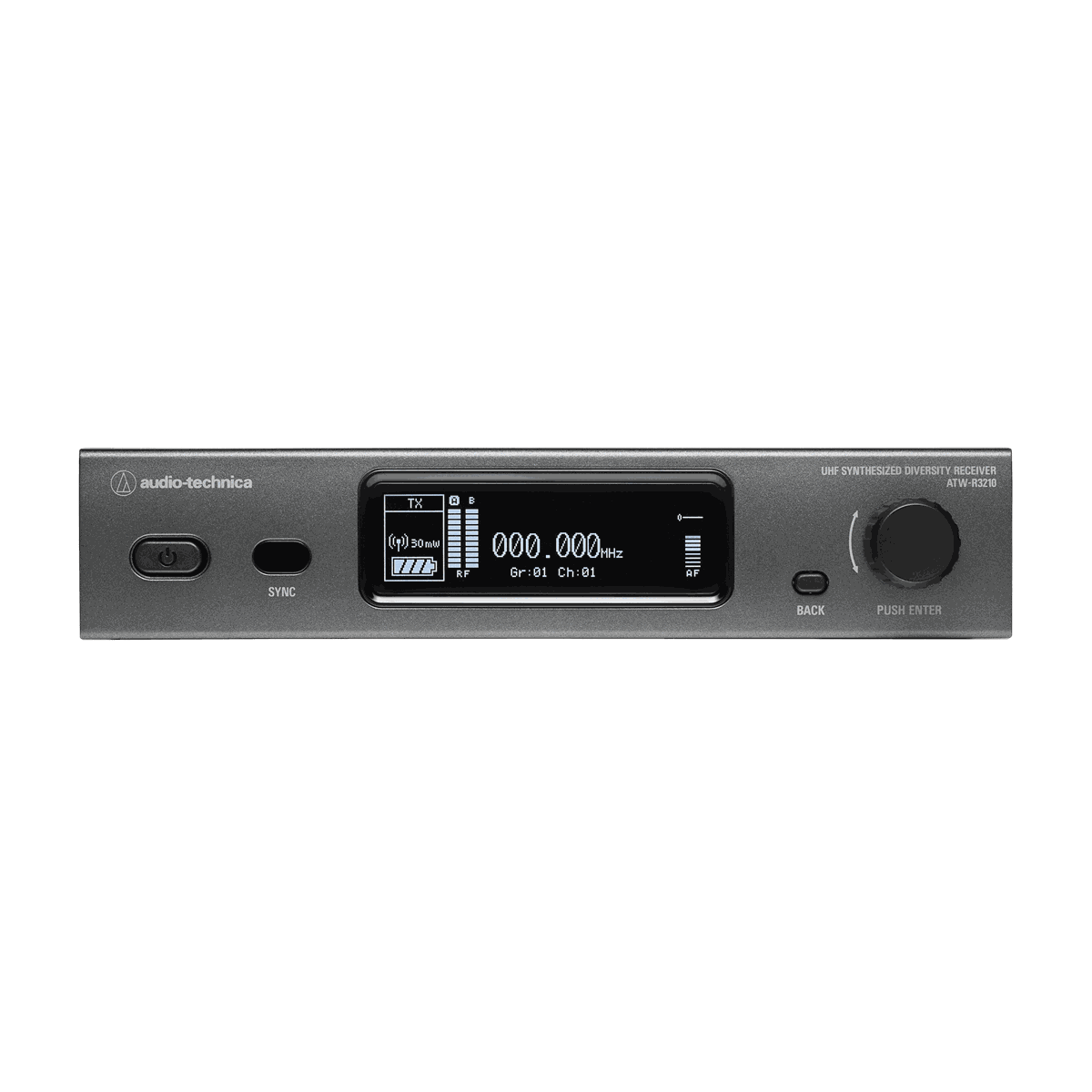

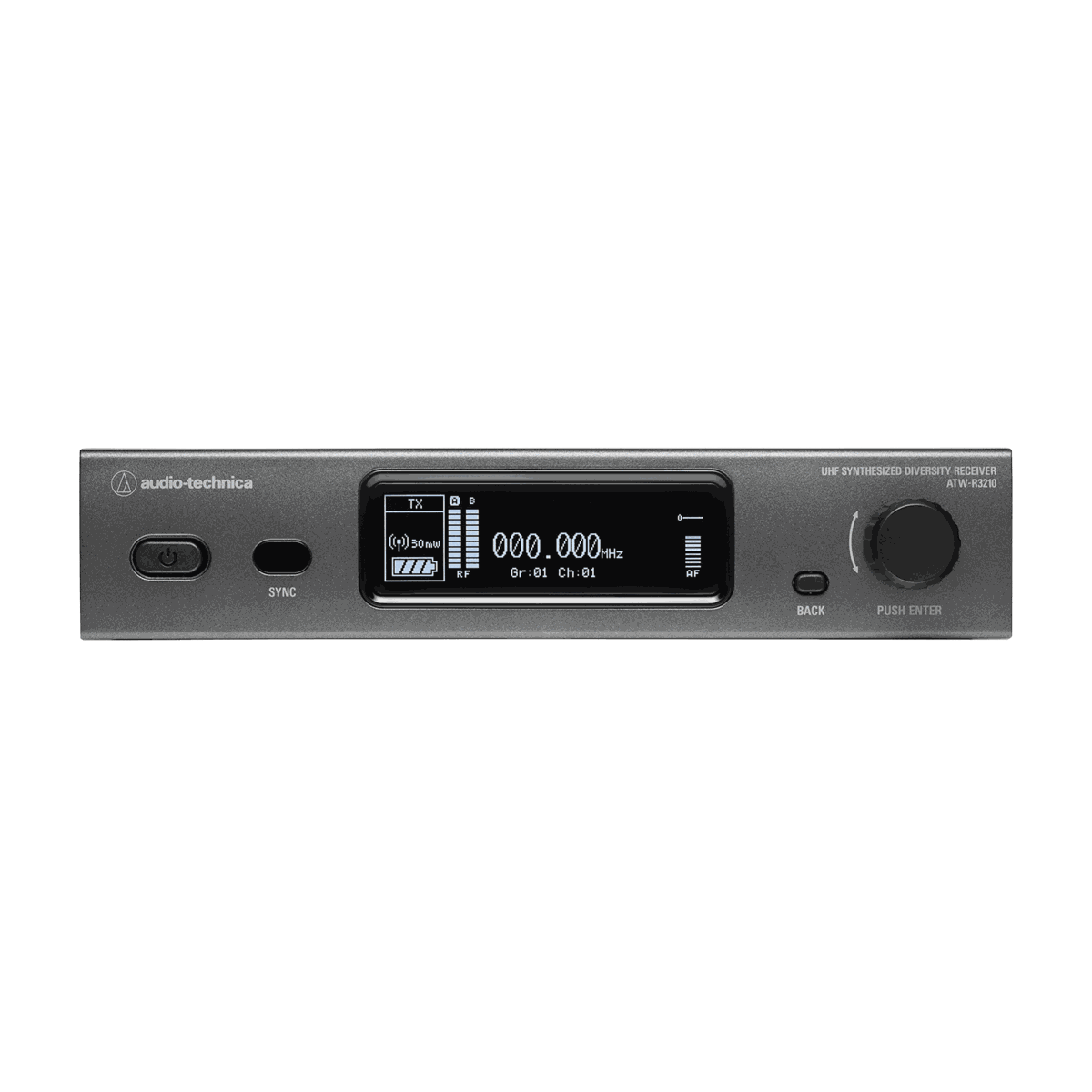

The ATW-R3210 is the standard (non-networked) 3000 Series receiver, sold on its own for a rack that already runs 3000 Series channels and just needs another one added or an existing unit replaced. It shares the same 60 MHz tuning range and true diversity reception as the rest of the 4th-generation 3000 Series lineup, with a dual-mode OLED display that toggles between standard and performance views.
It pairs with either an ATW-T3201 bodypack or ATW-T3202 handheld transmitter, and offers antenna power for powered antennas or in-line boosters plus a ground-lift switch to help eliminate audible hum. Automatic frequency scan and IR sync between receiver and transmitter make initial setup quick. Choose the DE2 band (470-530 MHz) or EE1 band (530-590 MHz) to match the rest of your rack.
| System | 3000 Series (4th generation) true-diversity UHF receiver |
|---|---|
| Tuning Range | 60 MHz, frequency-agile |
| Sensitivity | 20 dBuV at 60 dB S/N ratio (50 ohms) |

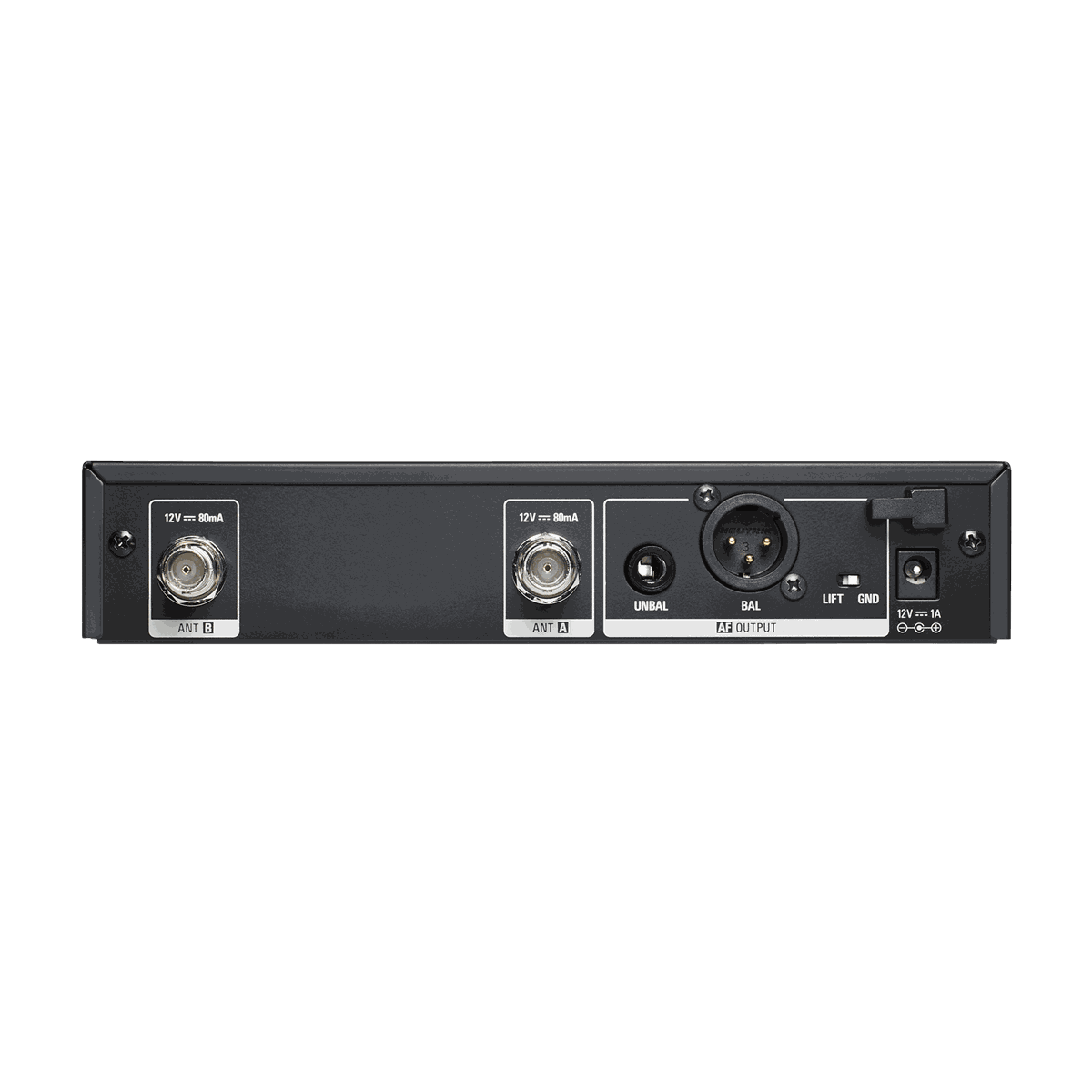

| Outputs | XLR balanced +14 dBV, 1/4" unbalanced +8 dBV |
| Dimensions | 210.0 x 191.0 x 43.4 mm |
| Weight | 1,100 g (38.8 oz) |
| Power | 12V DC, 160 mA; external 100-240V AC supply included |
| Compatible Transmitters | ATW-T3201 (bodypack), ATW-T3202 (handheld) |
