Wooden Camera B-Box System (Sony BURANO)

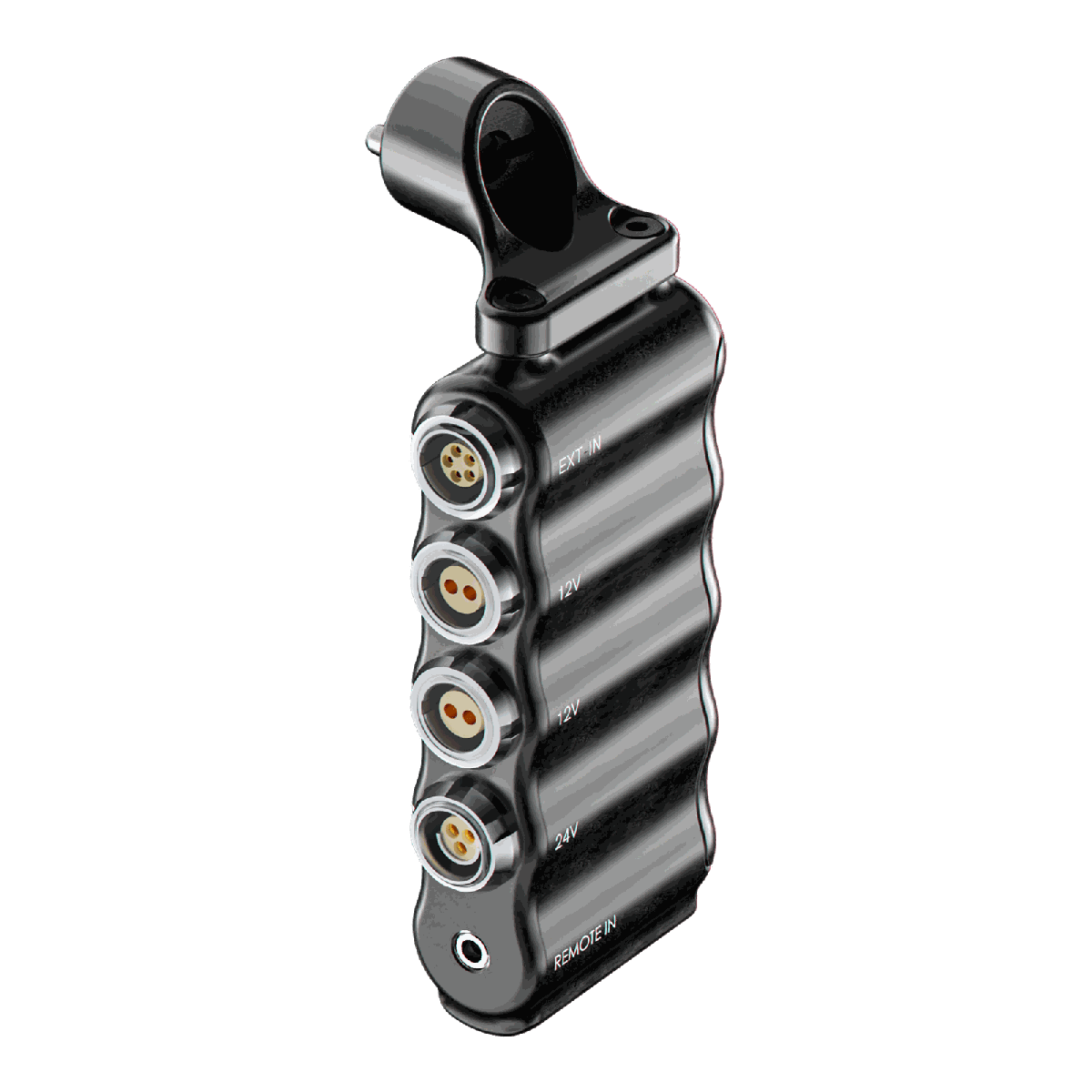

The B-Box System expands what a D-Box can hand out on a Sony BURANO build. It adds two 2-pin 12V outputs sharing 5.8A across all 12V outputs, a 3-pin 24V output sharing 3.8A across all 24V outputs, and a Remote-In port, and it ships with the mount that fixes it to the Top Plate for Sony BURANO.

The system talks to the D-Box through the included B-Box Link Cable, which lands on the EXT port of both units so power crosses between them; the included Remote Cable then brings Run/Stop to the 3-pin port via the camera's Remote port. The B-Box Bolt-On Side Mount fixes with M2.5 threads along the B-Box body and gives a 1/4"-20 mounting point with anti-twist pins. A D-Box for Sony BURANO is required.
