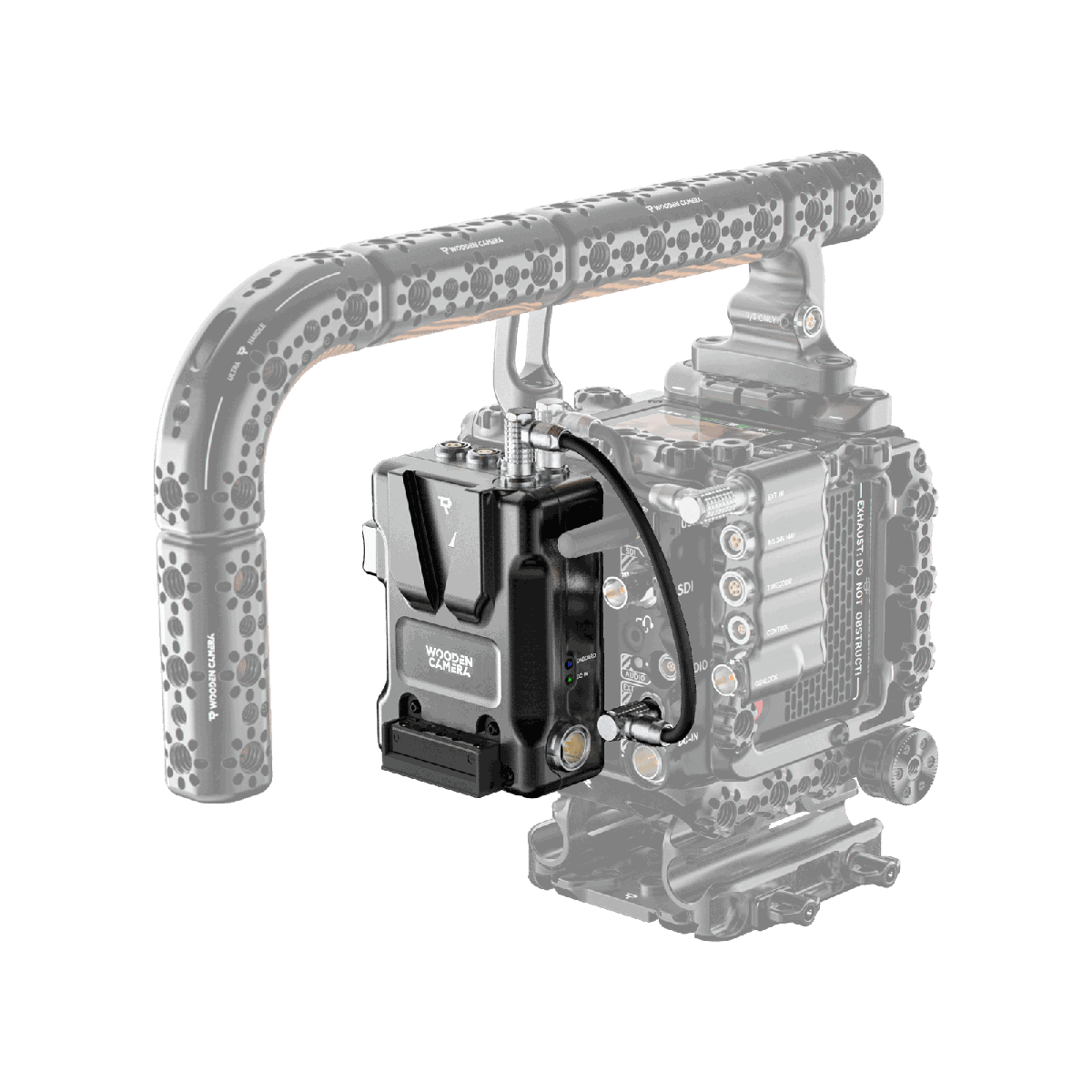

Wooden Camera D-Box for RED KOMODO-X

This D-Box expands the KOMODO-X's power options by converting the camera's native V-Mount to Gold Mount (or keeping V-Mount, depending on which version is ordered), with hot-swap available when a battery and the DC-In are both connected. Additional 12V 2-pin, a D-Tap port, and a 3-pin 24V output round out the connections.

When wired into the camera's EXT port, run/stop works across both the D-Box and a B-Box (for KOMODO, KOMODO-X, V-RAPTOR systems). The assistant's side carries a DC-In port for block batteries and an EXT-Out to pass connectivity to a B-Box further down the chain.

Camera Compatibility	RED KOMODO-X
Battery Mount	Gold Mount or V-Mount (converts from native V-Mount)
Connectors	12V 2-pin, D-Tap, 3-pin 24V
Weight (Gold Mount)	259 g (0.6 lb)
Dimensions (Gold Mount)	38.9 x 78.25 x 105 mm (1.5 x 3.1 x 4.1 in)
Weight (V-Mount)	273.5 g (0.6 lb)
Included	EXT cable, 9-pin 0B RA male to male, 5 in
