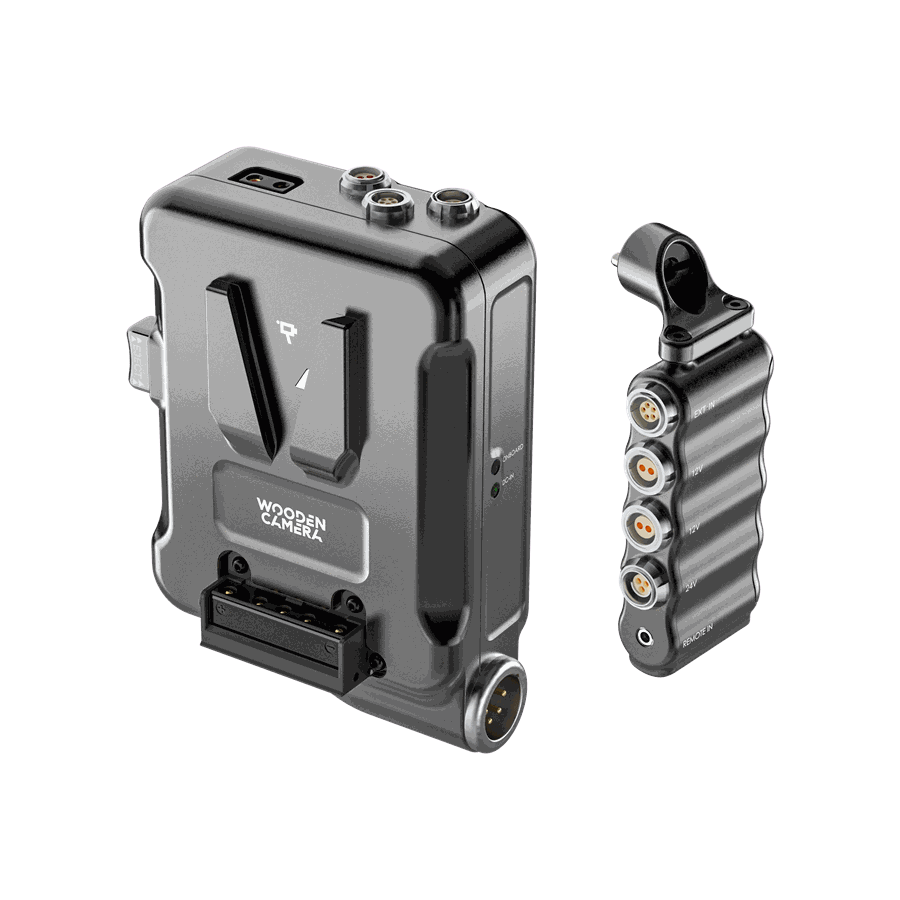

Wooden Camera D-Box and B-Box System (Sony BURANO)

The D-Box and B-Box System is the full power build for a Sony BURANO. The D-Box adds 2-pin 12V outputs sharing 5.8A across all 12V outputs, a D-Tap port, and a 3-pin 24V output sharing 3.8A across all 24V outputs, and it hot swaps: with power on the DC-In and a battery on board, the camera does not go down during a battery change.

The B-Box extends that distribution with two more 2-pin 12V outputs, another 3-pin 24V, and a Remote-In port. It connects through the included B-Box Link Cable landing on the EXT port of both units, and the included Remote Cable brings Run/Stop to the 3-pin port through the camera's Remote port. The B-Box Bolt-On Side Mount fixes via M2.5 threads and offers a 1/4"-20 point with anti-twist pins. The D-Box is available in Gold Mount or V-Mount.
