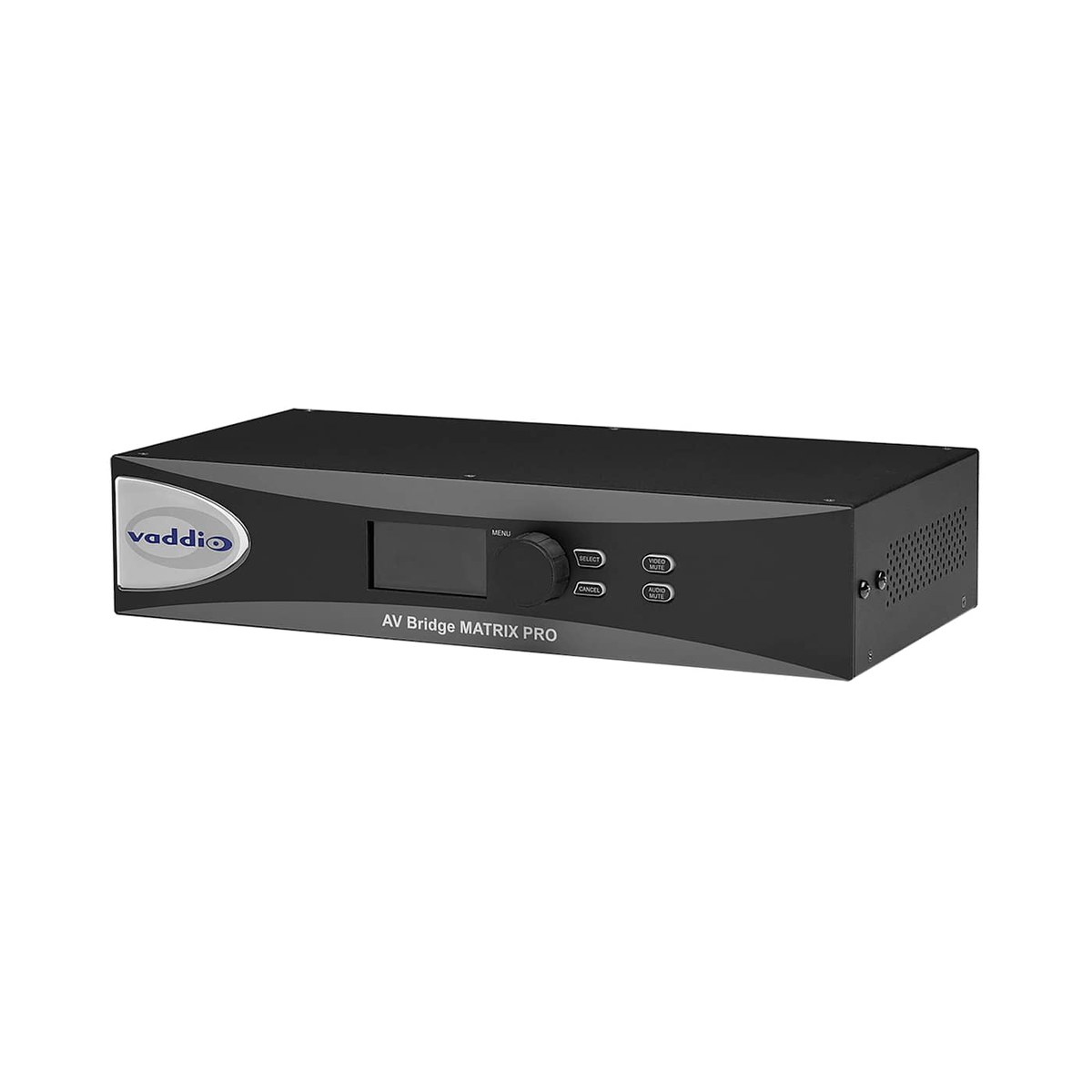

Vaddio AV Bridge MATRIX PRO AV Encoder

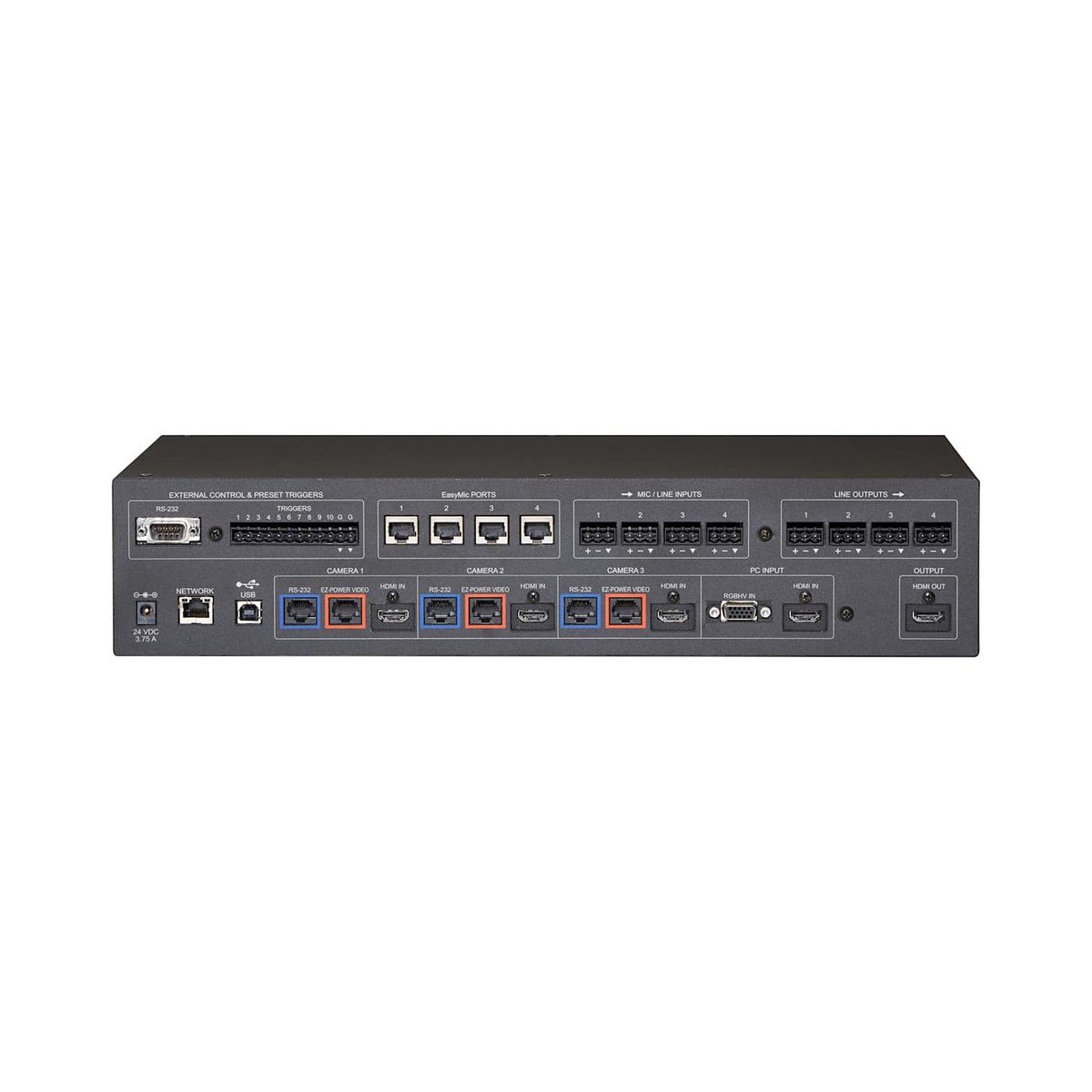

The AV Bridge MATRIX PRO is the production end of a Vaddio room: three EZ Power Video camera inputs and three HDMI camera inputs, plus a PC input on HDMI or RGBHV, switched and sent out as a program feed. That program goes to HDMI, to a UVC and UAC USB 2.0 stream a soft codec sees as a webcam, and to an H.264 IP stream with AAC audio in RTSP format, all at the same time, so a room can feed a conferencing client and a streaming platform without a second box.
Audio is built in rather than bolted on: four EasyMIC ports for Vaddio microphones, four balanced mic/line inputs with 48V phantom available, and four balanced line outputs, with HDMI and streaming audio carried alongside. Balanced inputs and outputs run 20 Hz to 20 kHz with better than 90 dB of dynamic range. The chassis is 2RU, 16.7 in wide and 8 in deep at 5.6 lb (2.5 kg), and runs on 24 VDC at 3.75 A.
| Camera Inputs | 3 EZ Power Video (Vaddio proprietary) and 3 HDMI |
|---|---|
| PC Input | 1 HDMI and 1 RGBHV |
| Program Outputs | HDMI up to 1080p/60; USB 2.0 UVC/UAC; IP H.264 with AAC, RTSP |
| Audio Inputs | Four EasyMIC ports; four mic/line inputs with 48 VDC phantom available |
| Audio Outputs | Four balanced line-level outputs plus HDMI and streaming audio |
| Audio Performance | 20 Hz to 20 kHz, dynamic range over 90 dB, 48 kHz 16-bit stereo |
| Input Power | 24 VDC, 3.75 A |
| Dimensions | 2 RU; 3.47 in H x 16.7 in W x 8 in D (8.8 x 42.5 x 20.3 cm) |
| Weight | 5.6 lb (2.5 kg) |
| Environmental | 32 - 104 degrees F (0 - 40 C), 15 - 80% RH non-condensing |
