Vaddio EasyIP 10 Mixer Base Kit

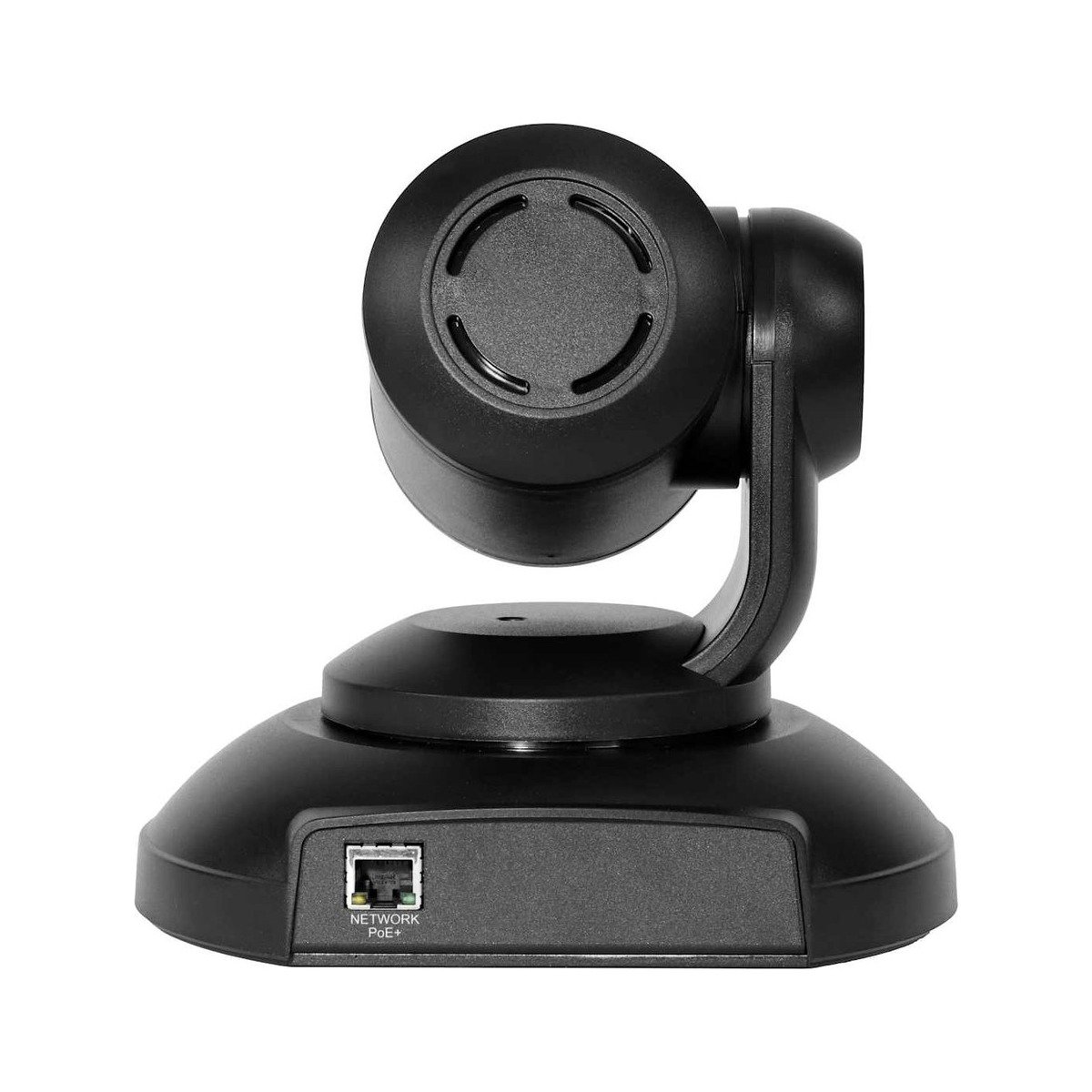

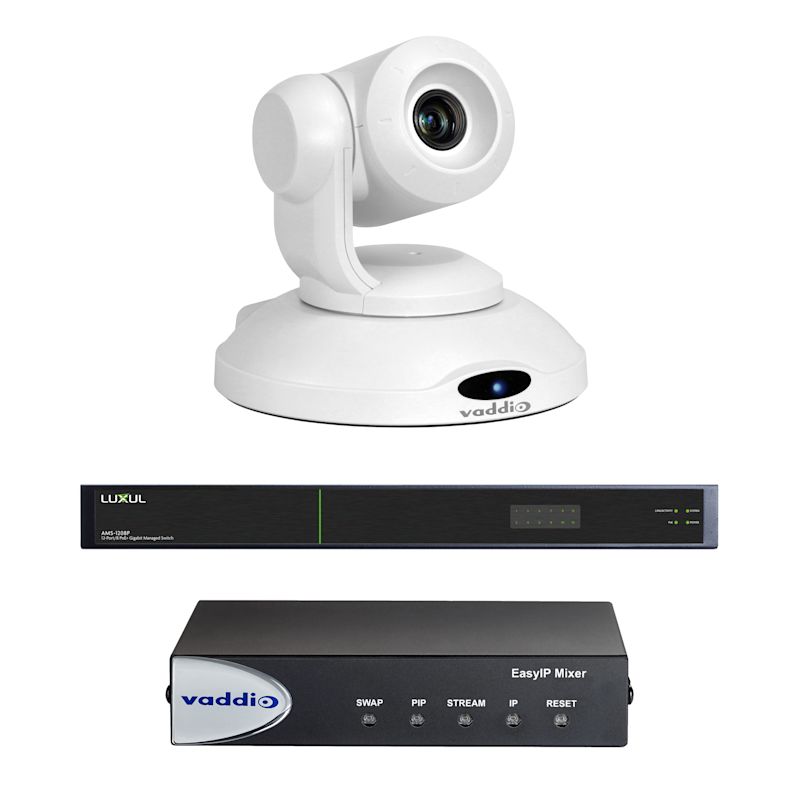

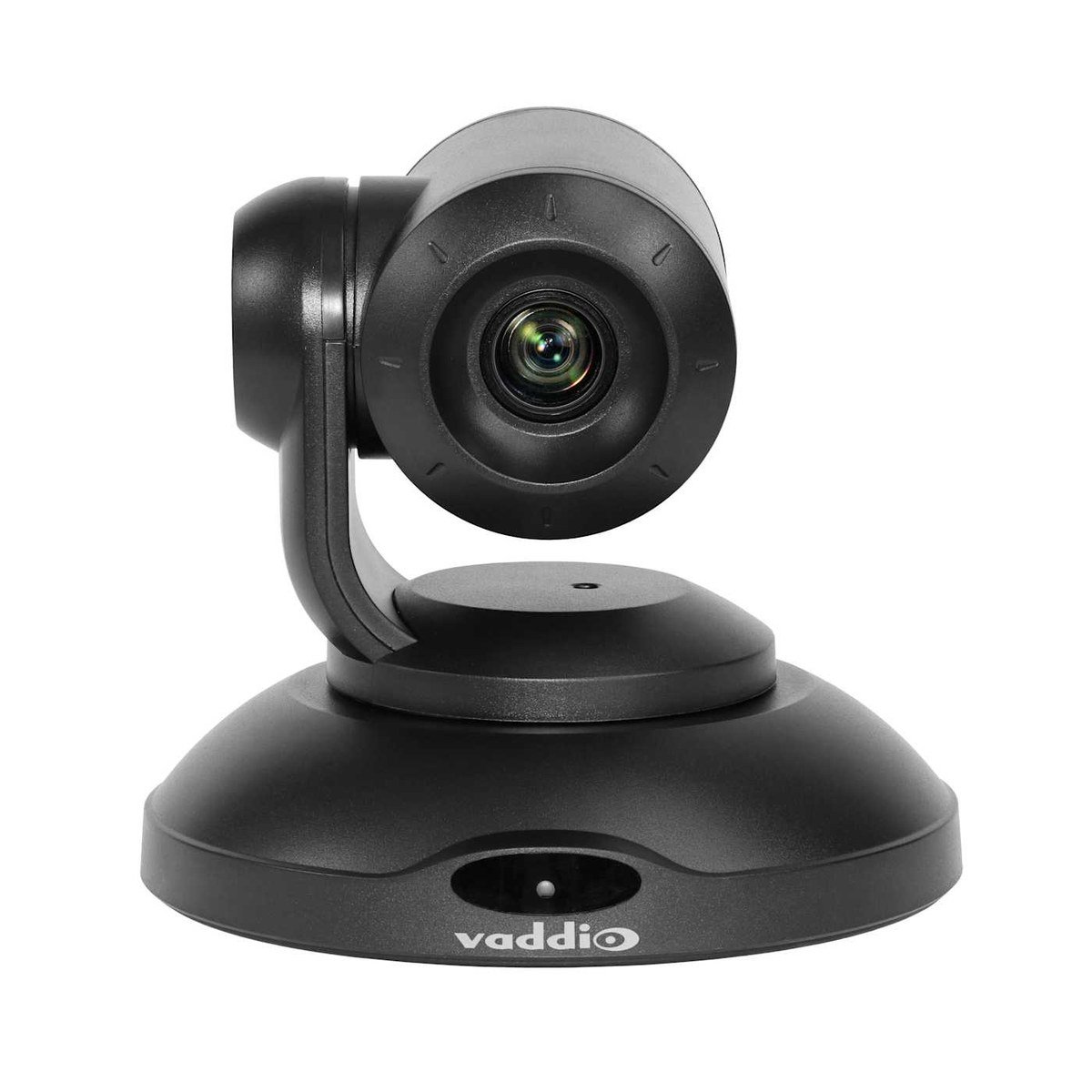

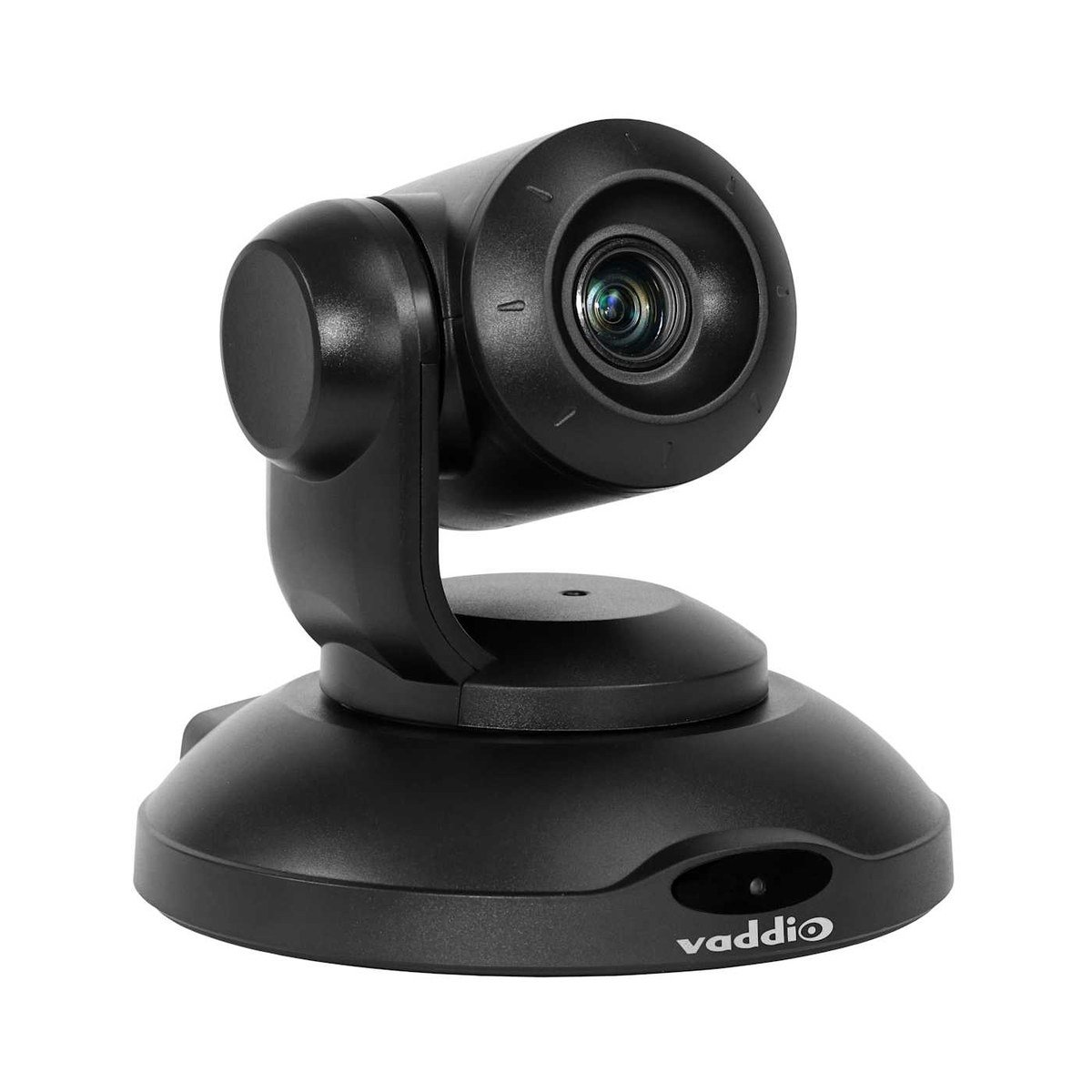

The EasyIP 10 Mixer Base Kit is the first purchase in an EasyIP room: an EasyIP 10 camera and an EasyIP Mixer, which together give the space a USB feed for soft conferencing and a network fabric that more cameras and microphones can join later. Both halves take PoE+, so the room needs a switch rather than power supplies at each device.
The Mixer streams video and audio to the host at up to 1080p/60 and pairs with up to four EasyIP cameras. Audio is where it earns the rack space: stereo USB and stereo HDMI in and out, two balanced mic/line inputs with 48 VDC phantom available, two balanced line-level outputs, and up to four Dante-compatible inputs and outputs. Line out is a 4-pin Phoenix terminal block at 50 ohms, 20 Hz to 20 kHz, THD plus noise under 0.02%, maximum +12 dBu differential. Configuration is browser-based, with Telnet and RS-232 for external control. Available in black or white.
| Kit Contents | EasyIP 10 camera and EasyIP Mixer |
|---|---|
| USB Stream | Video and audio up to 1080p/60 |
| Cameras | Pairs with up to 4 EasyIP cameras |
| Video I/O | HDMI in and HDMI out, up to 1080p/60 |
| Audio Inputs | Stereo USB, stereo HDMI, two balanced mic/line, up to 4 Dante |
| Audio Outputs | Stereo USB, stereo HDMI, two balanced line-level, up to 4 Dante |
| Line Output | 4-pin Phoenix, 50 ohms, 20 Hz - 20 kHz, THD+N under 0.02%, +12 dBu max |
| Phantom Power | 48 VDC, 10 mA |
| Input Power | PoE+ |
| Control | Browser interface, front panel controls, Telnet and RS-232 |
