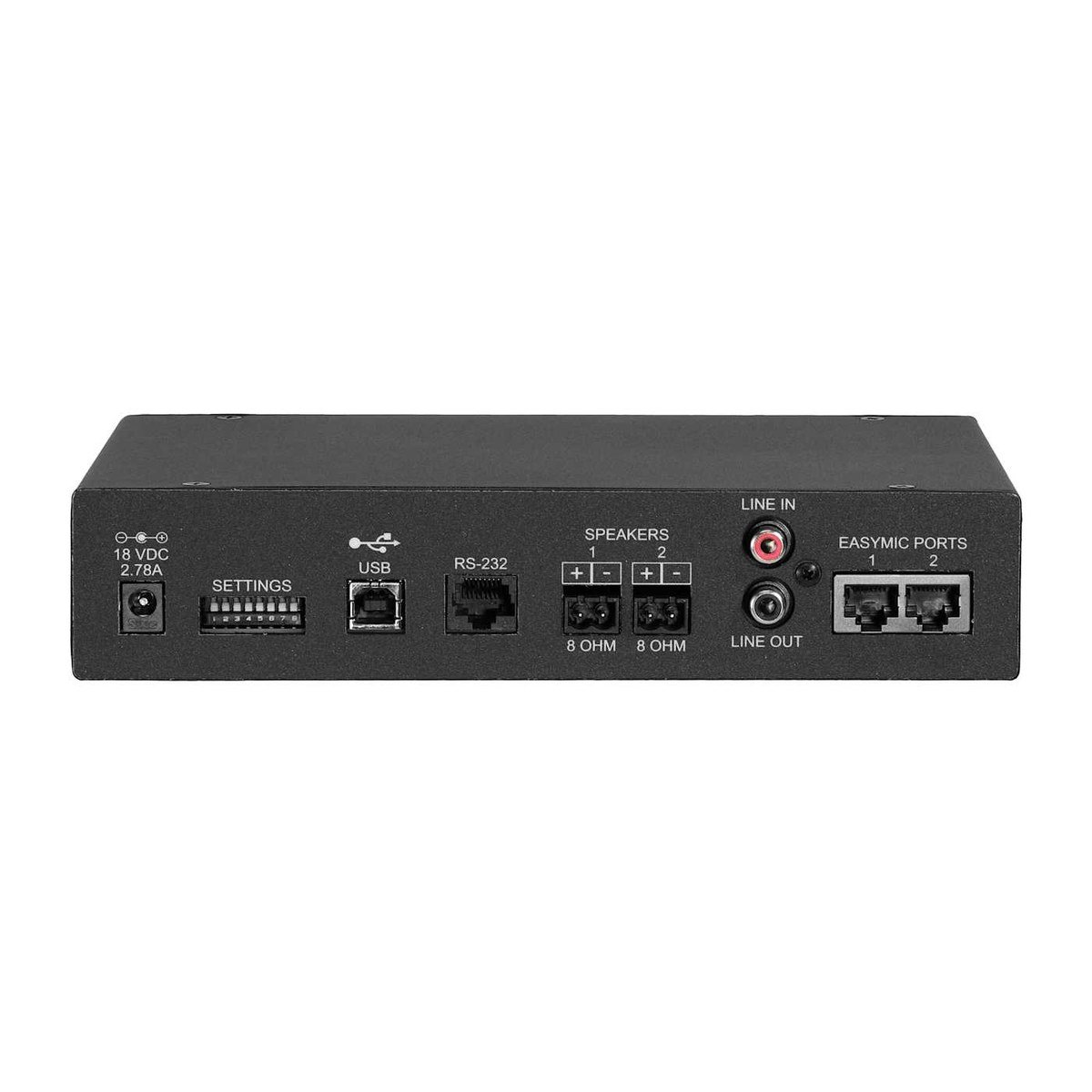

Vaddio EasyUSB Mixer/Amp Audio Mixer and Amplifier
The EasyUSB Mixer/Amp is the master audio device for a USB conferencing room with one or two microphones. It mixes the microphones, runs acoustic echo cancellation, drives the room speakers, and presents the whole thing to the computer as a single USB audio device using standard UAC drivers, so the PC finds it without a driver install and the conferencing application sees one microphone and one speaker instead of a rack of gear.
Line-level inputs and outputs let it sit alongside other AV equipment, including a videoconferencing codec, rather than replacing it. It works with Vaddio's EasyMic microphones, including CeilingMIC and TableMIC, and is not compatible with EasyIP products. An RS-232 port takes third-party control at 38400 or 9600 bps, 8 data bits, no parity, one stop bit, no flow control, selected by DIP switch. The chassis is 8.38 in wide and 1.72 in high.
| Type | USB conferencing audio mixer and speaker amplifier |
|---|---|
| Microphones | One or two Vaddio EasyMic microphones (CeilingMIC, TableMIC) |
| Compatibility | EasyMic products only; not compatible with EasyIP products |
| USB | Standard UAC drivers; presented as a single USB audio device |
| Processing | Acoustic echo cancellation, integrated mixer |
| Analog I/O | Line-level audio inputs and outputs for codecs and other AV equipment |
| Serial Control | RS-232, 38400 or 9600 bps by DIP switch, 8 data bits, no parity, 1 stop bit |
| Dimensions | 8.38 in (21.3 cm) wide, 1.72 in (4.4 cm) high |
