Vaddio AV Bridge Conference HD Encoder (999-8215-000)

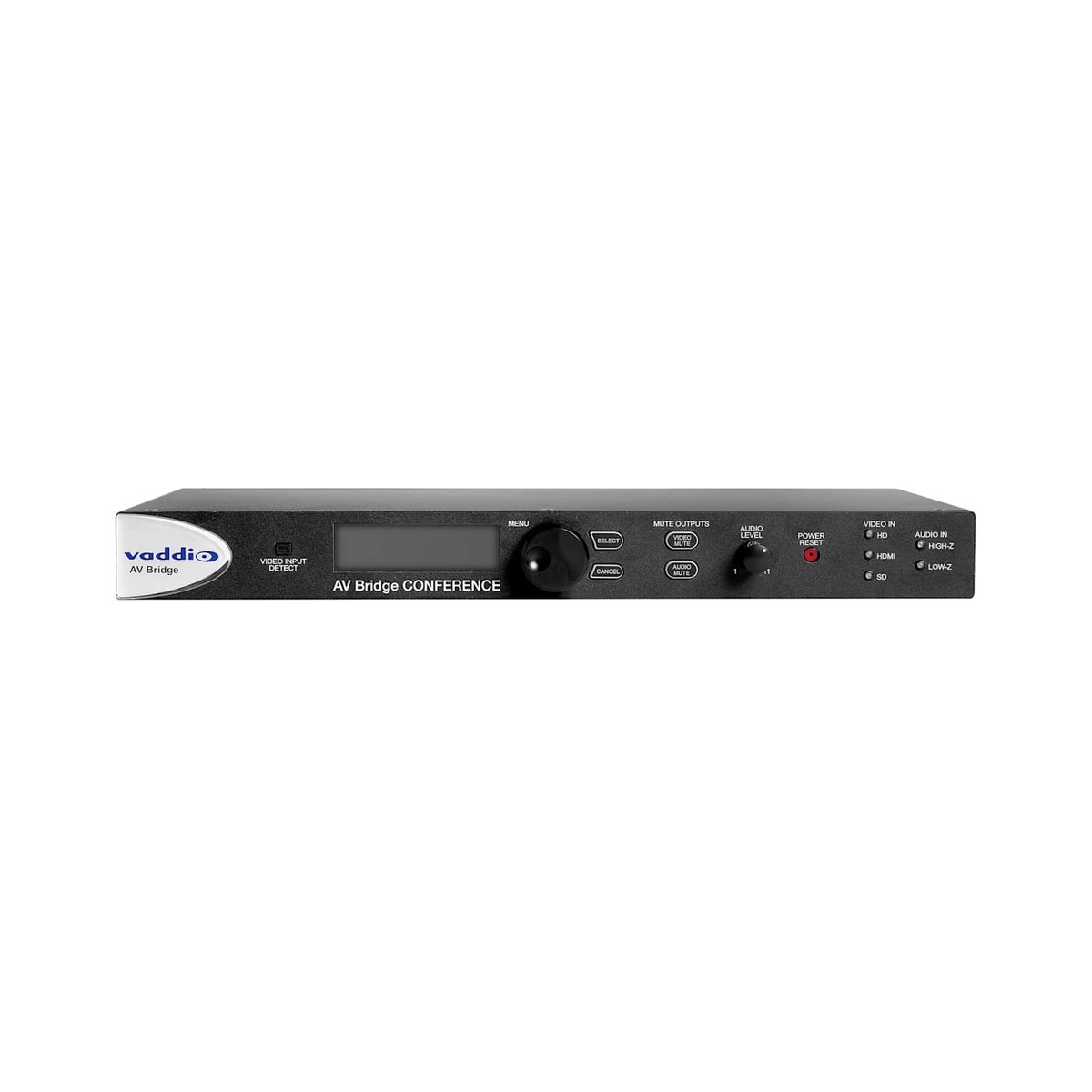

The AV Bridge CONFERENCE is a room-based HD media encoder that bridges a room's analog and digital audio and video into a computer for unified communications. It presents to a PC or Mac as a standard USB video and audio device, so a soft codec such as Zoom, Teams, or Webex sees the room's professional cameras and mixer with no custom drivers. Where it differs from a plain encoder is the audio path: it carries two-way analog audio with acoustic echo cancellation, sending near-end audio to the far side and returning far-end audio to the room's mixer clean.

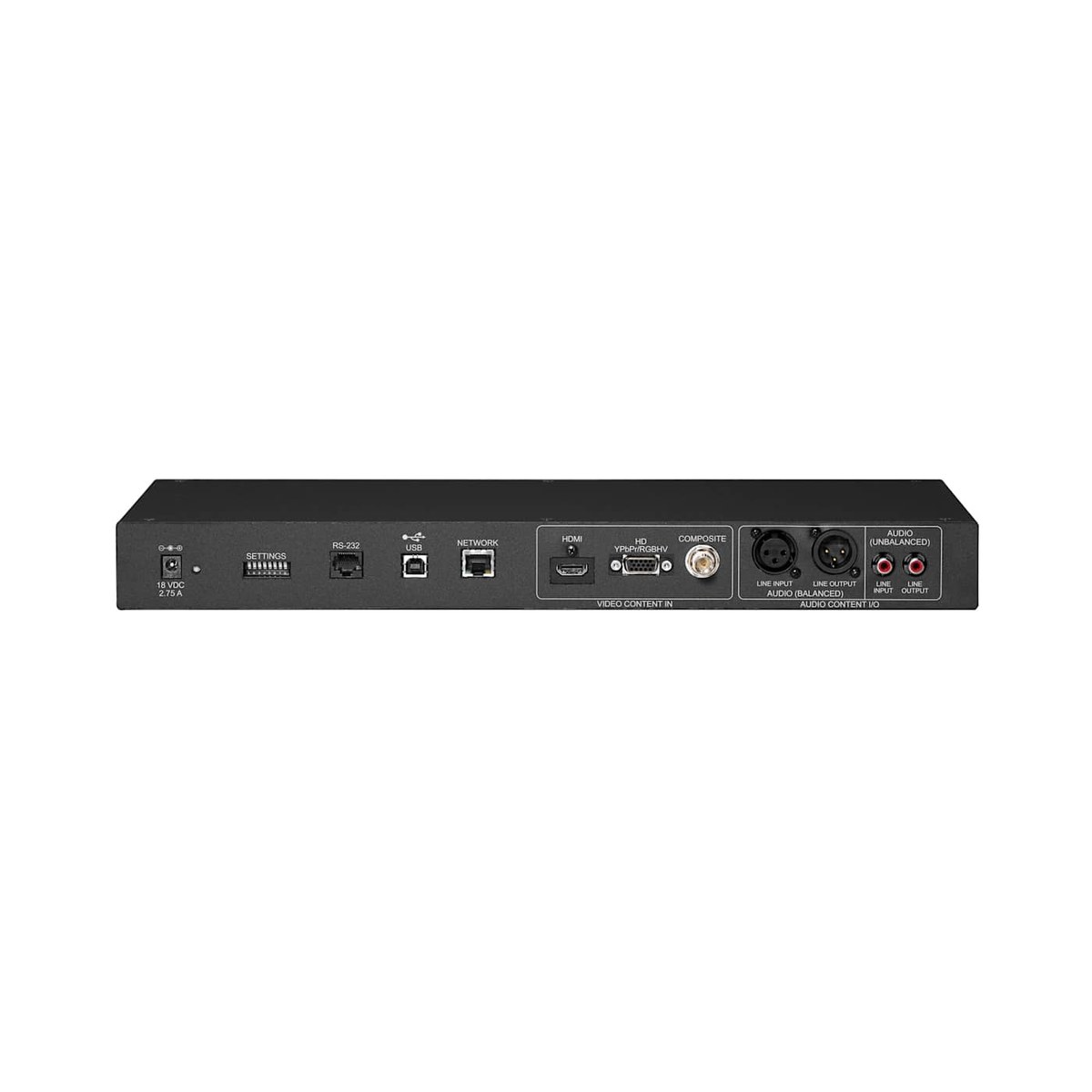

On the video side it accepts sources up to 1080p/60 over HDMI, YPbPr, RGBHV, and composite, then streams USB 2.0 (MJPEG with PCM audio) up to 720p/30 or IP (H.264 with AAC audio) up to 1080p/30. Rear connections include balanced and unbalanced audio in and out, an RS-232 control port on RJ-45, a USB 2.0 type-B port, and an RJ-45 network jack, and setup runs through an embedded web server with no extra software. This North America configuration ships with its power supply and cord set.
