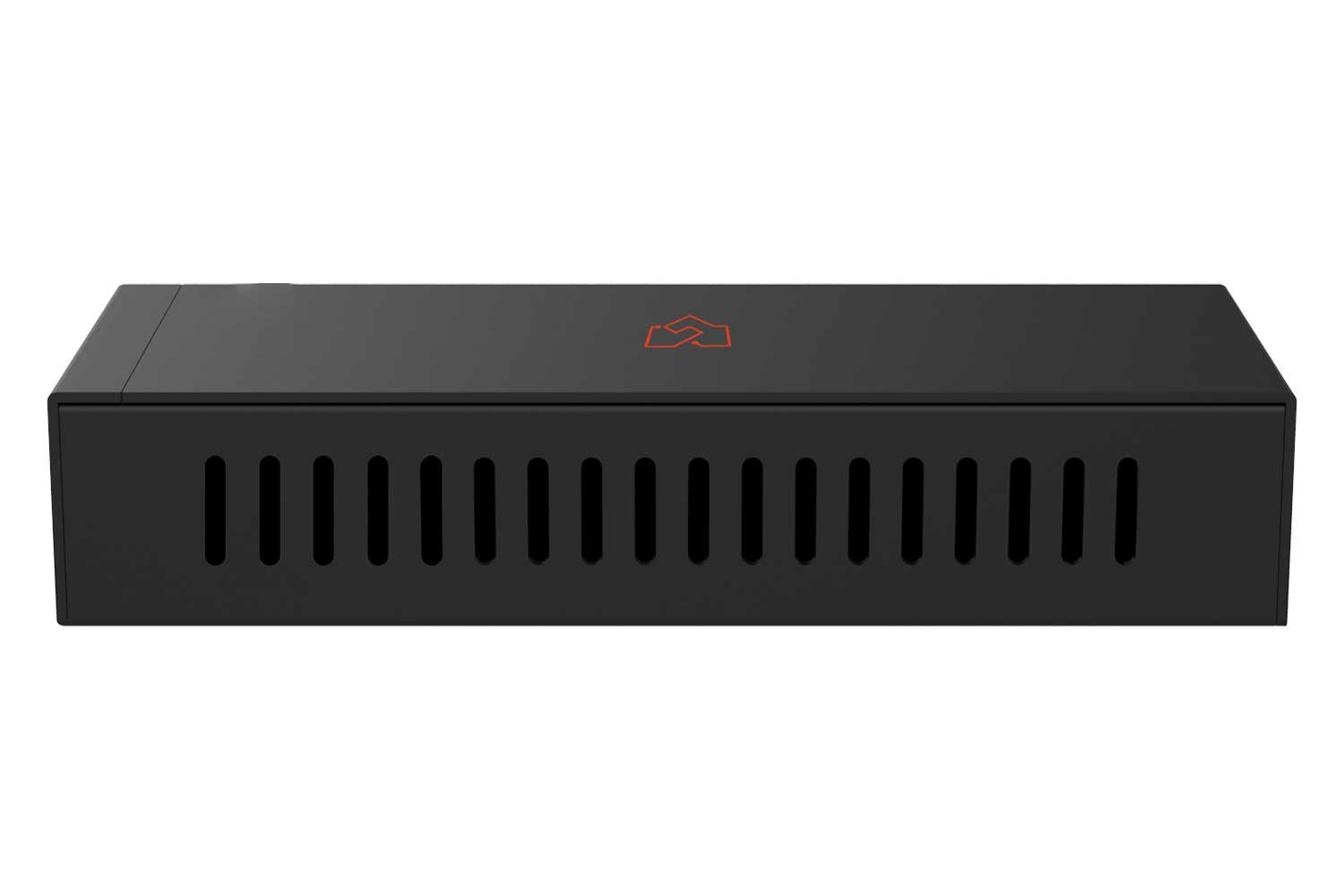

VigilLink VLDT-UA2-TR 2-Channel Dante USB Audio Encoder and Decoder
The VLDT-UA2-TR presents itself to a computer as a standard USB audio device and moves that audio in both directions across a Dante network. Program audio from the PC goes out onto the network, and a network source comes back as the PC's microphone input, which is exactly what a soft codec room needs.

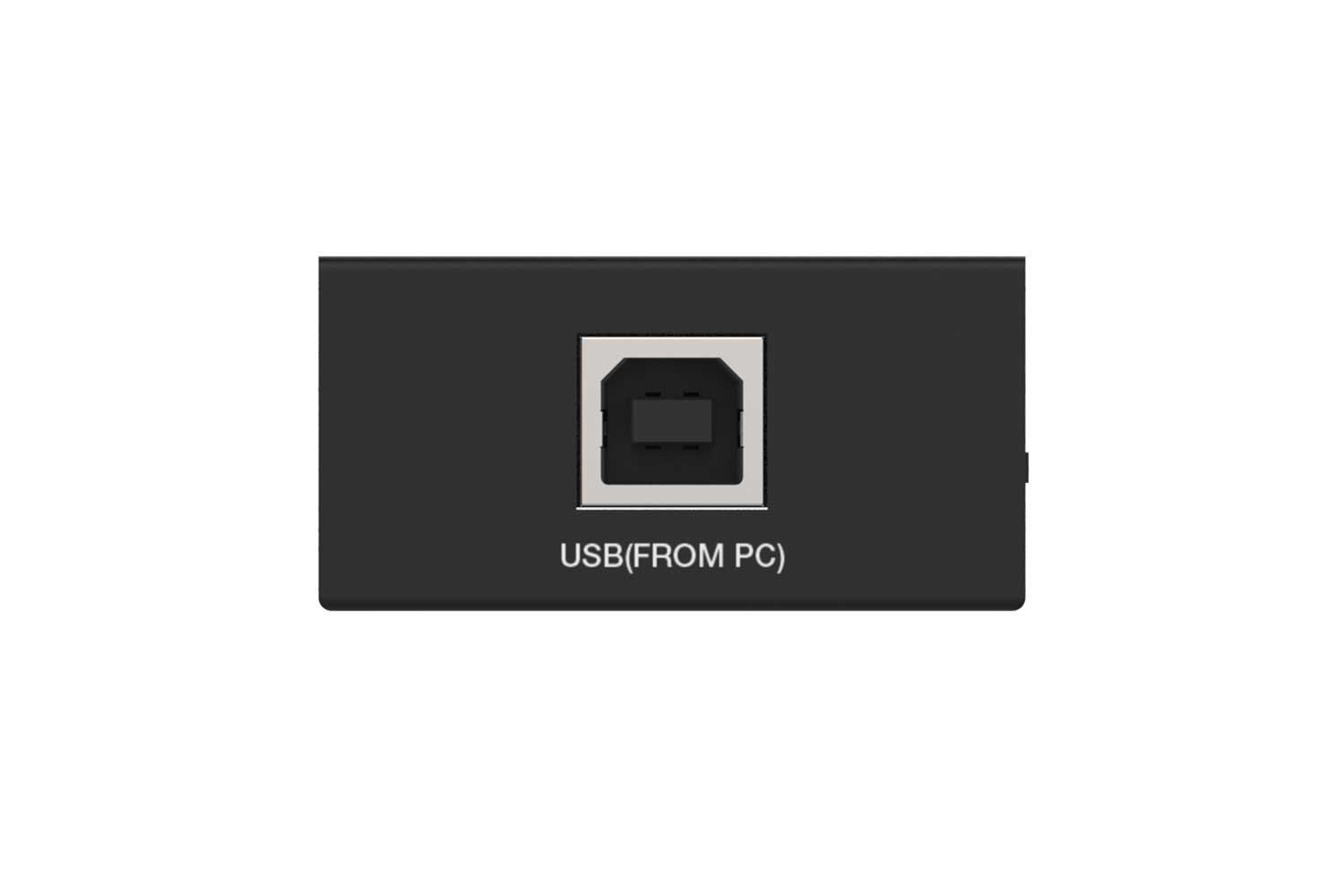

The USB-B connection is USB 2.0 Full Speed and USB Audio Device Class 1.0, so it is plug and play with no drivers on Windows, macOS, or Linux. Audio runs at 44.1, 48, or 96kHz at 24-bit with AES67 RTP transport, over up to 328 feet of Cat6/6A, powered from USB 5V or PoE (802.3af Class 0).
| Network Bandwidth | 100M |
|---|---|
| Transmission Distance | 100m (Cat 6/6A) |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Frequency Response | 20Hz to 20kHz |
| Control Method | Dante Controller |
| Housing | Metal Enclosure |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 188g |
