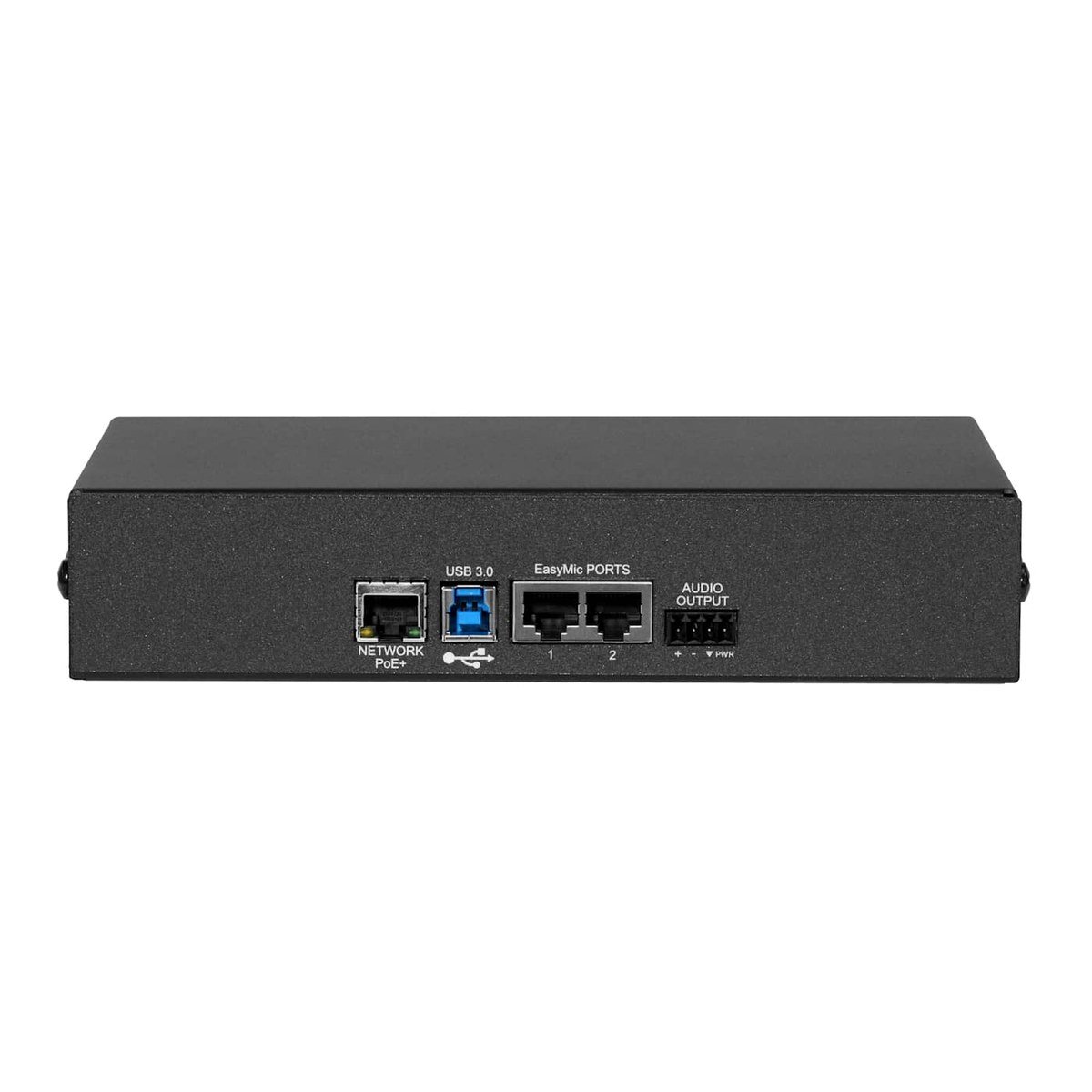

Vaddio EasyIP Decoder

The EasyIP Decoder is where an EasyIP room lands. It discovers and pairs with EasyIP cameras and sources on the network, handles up to four cameras and two Vaddio EasyMIC microphones, TableMIC or CeilingMIC, and presents the result to the room PC as a single USB 3.0 output at up to 1080p/60.

Because video reaches it over EasyIP rather than over a video cable, the camera positions are wherever the network reaches. Cameras can be driven with the soft client's own UVC controls, so an operator does not need a separate control surface for a normal meeting. The decoder is PoE+ powered and ships with a 3 ft cat-5e cable, a 6 ft USB 3.0 cable, a 4-position phoenix-style connector, a half-rack mounting kit for fitting it into a full rack space and a quick-start card.

Camera Capacity	Up to four EasyIP cameras
Microphone Capacity	Up to two Vaddio EasyMIC microphones (TableMIC or CeilingMIC)
Output	USB 3.0 up to 1080p/60
Discovery	Discovers and pairs with EasyIP cameras and sources
Control	Camera control through the soft client's UVC controls
Power	PoE+
Included	3 ft cat-5e cable, 6 ft USB 3.0 cable, 4-position phoenix connector, half-rack mounting kit, quick-start card
