Shure SCM268

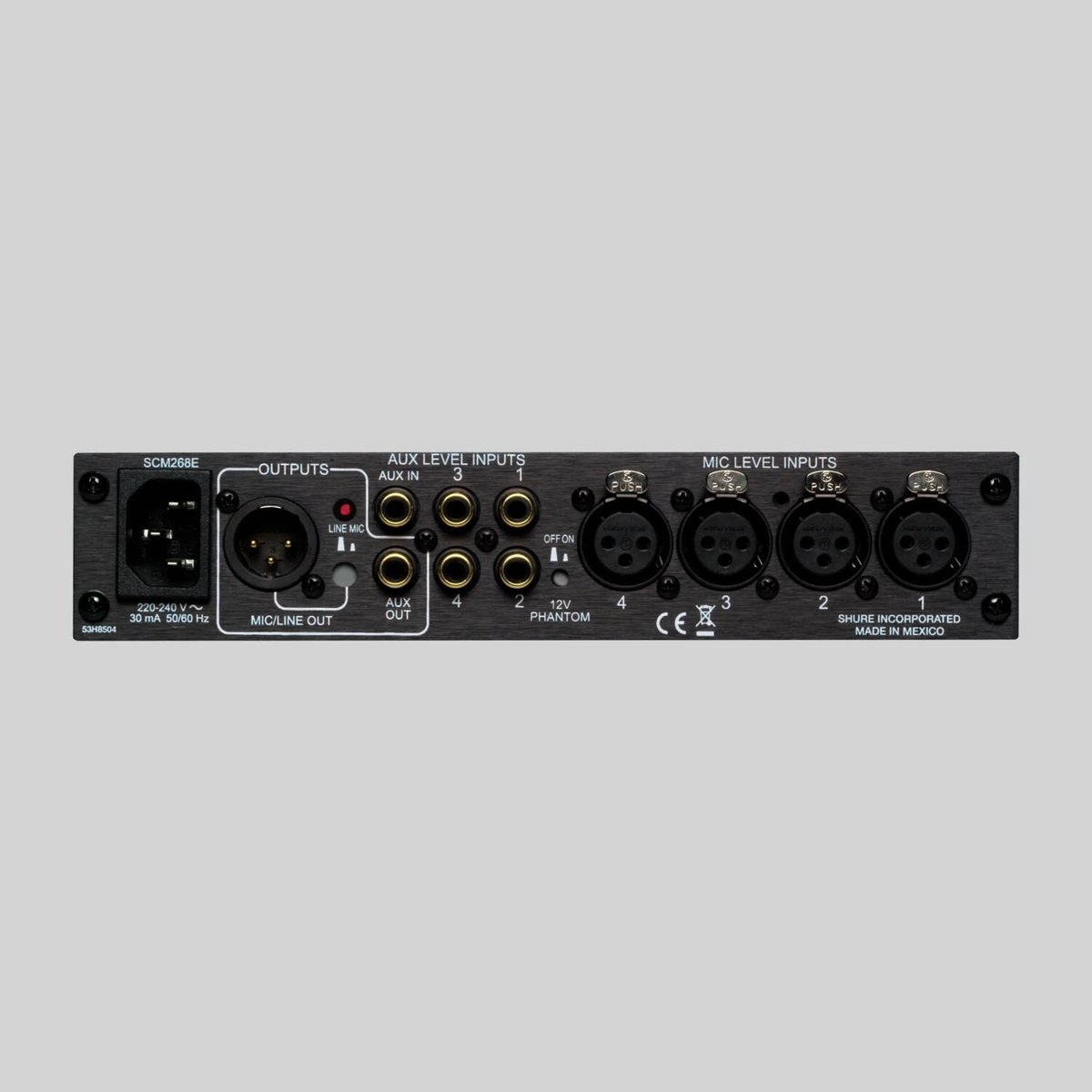

The SCM268 is a four-channel transformer-balanced microphone mixer built for the jobs that do not need a full console: meeting rooms, houses of worship, classrooms, restaurants, and health clubs. Four transformer-balanced XLR inputs take microphones, a switchable mic/line transformer-balanced XLR output feeds the next device, and RCA phono inputs plus an auxiliary channel bring in program audio from CD, media players, or a paging source. Built-in 12V phantom power runs condenser microphones, and a low-cut filter below 80 Hz trims rumble on every mic channel.

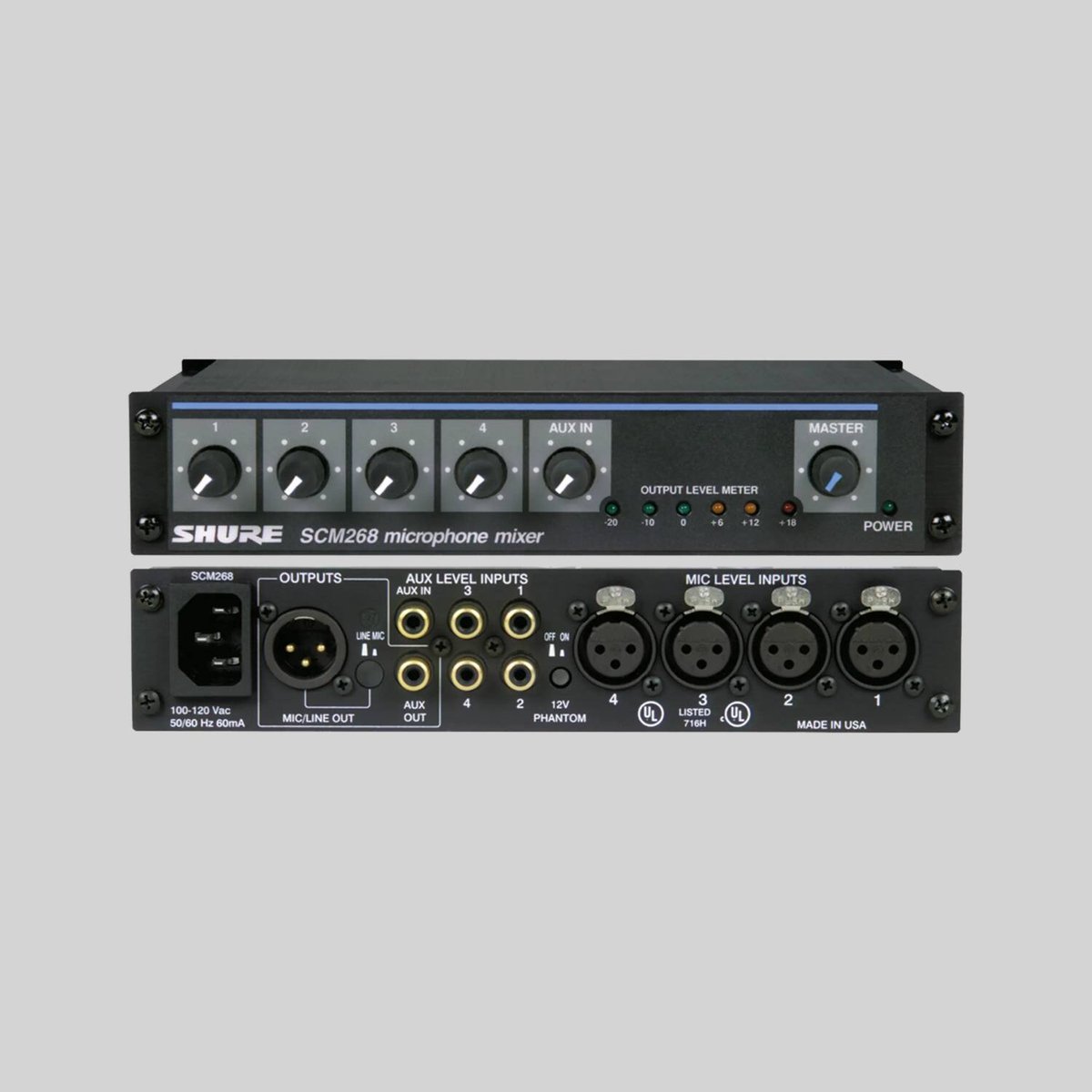

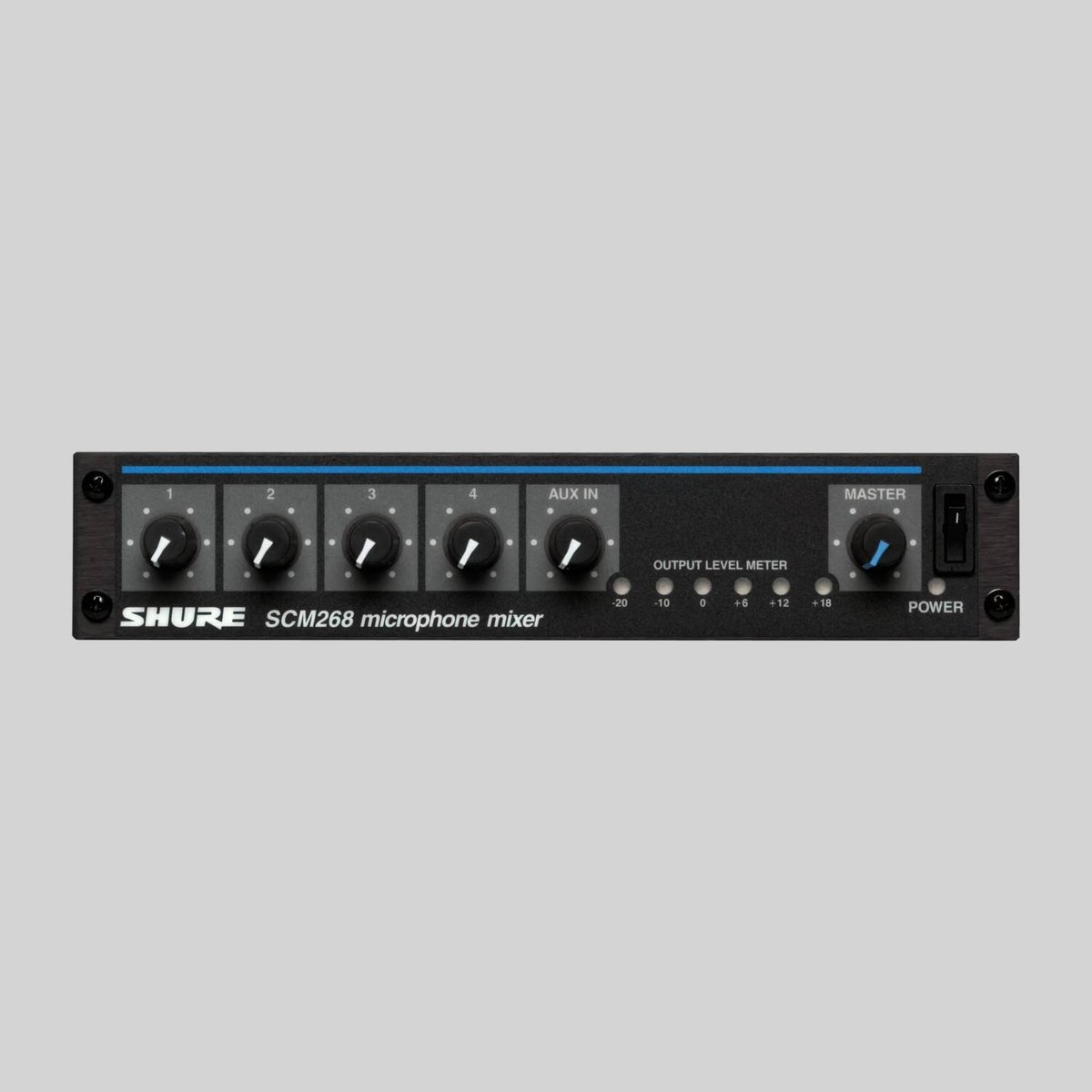

Six sealed rotary controls handle the four mic channels, the aux input, and the master, with a six-segment LED meter watching the output. The half-rack chassis mounts singly or in pairs with the supplied hardware, or fastens on or below a shelf or counter for a fixed install. It runs on internal AC power and can act as a primary mixer or as an add-on to expand an existing system.
| Channels | 4-channel transformer-balanced mic mixer |
|---|---|
| Inputs | Four XLR mic, five -10 dB RCA line, one aux |
| Output | XLR switchable mic/line, RCA aux out |
| Mic Frequency Response | 150 Hz to 20 kHz +2 dB |
| Low-Cut Filter | 3 dB down at 80 Hz, 6 dB/octave |
| Phantom Power | 12 Vdc |
| Metering | Six-segment LED output level meter |
| Dimensions | 44 mm H x 218 mm W x 162 mm D (1.72 x 8.60 x 6.37 in) |
| Weight | 1.20 kg (2 lb 10 oz) |
