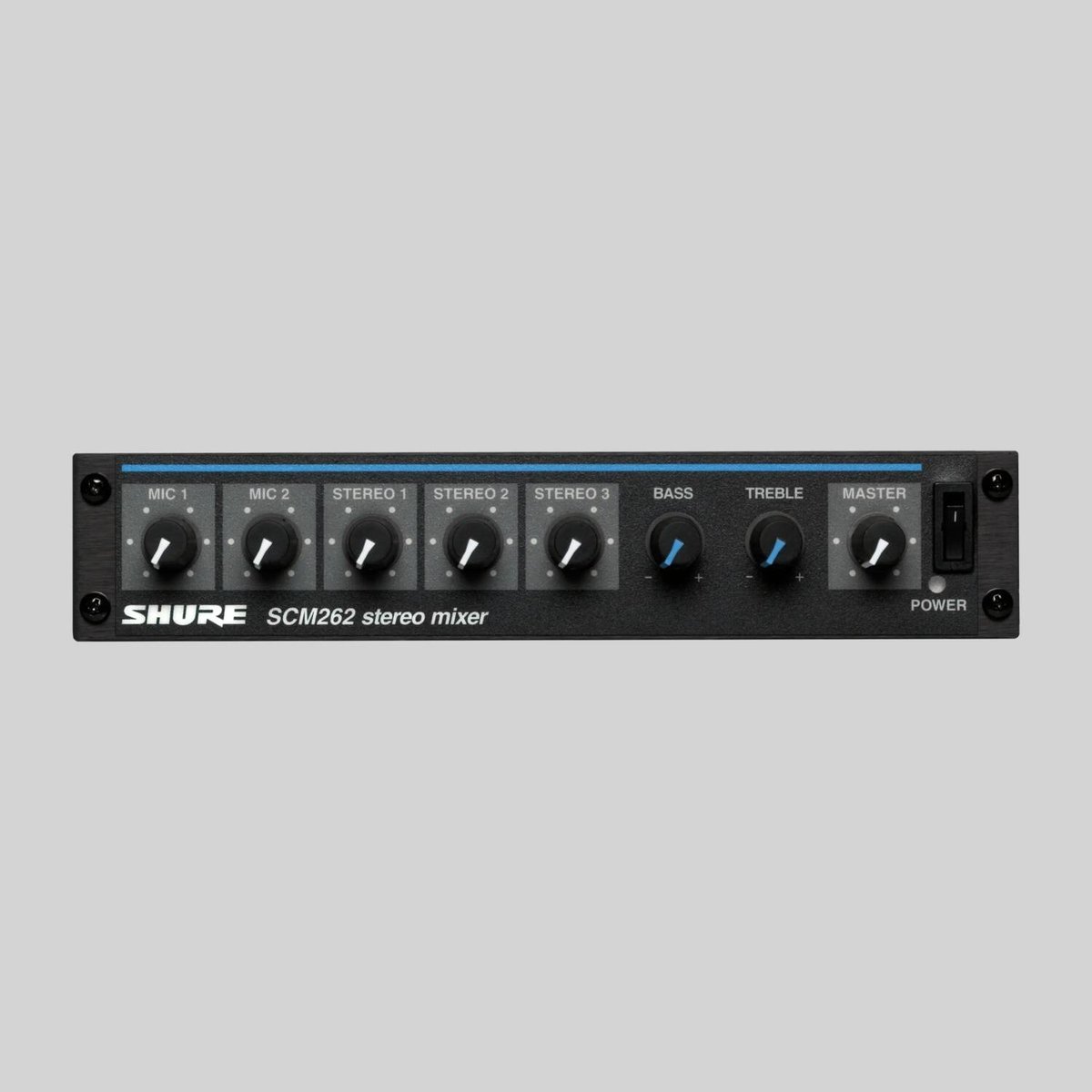

Shure SCM262

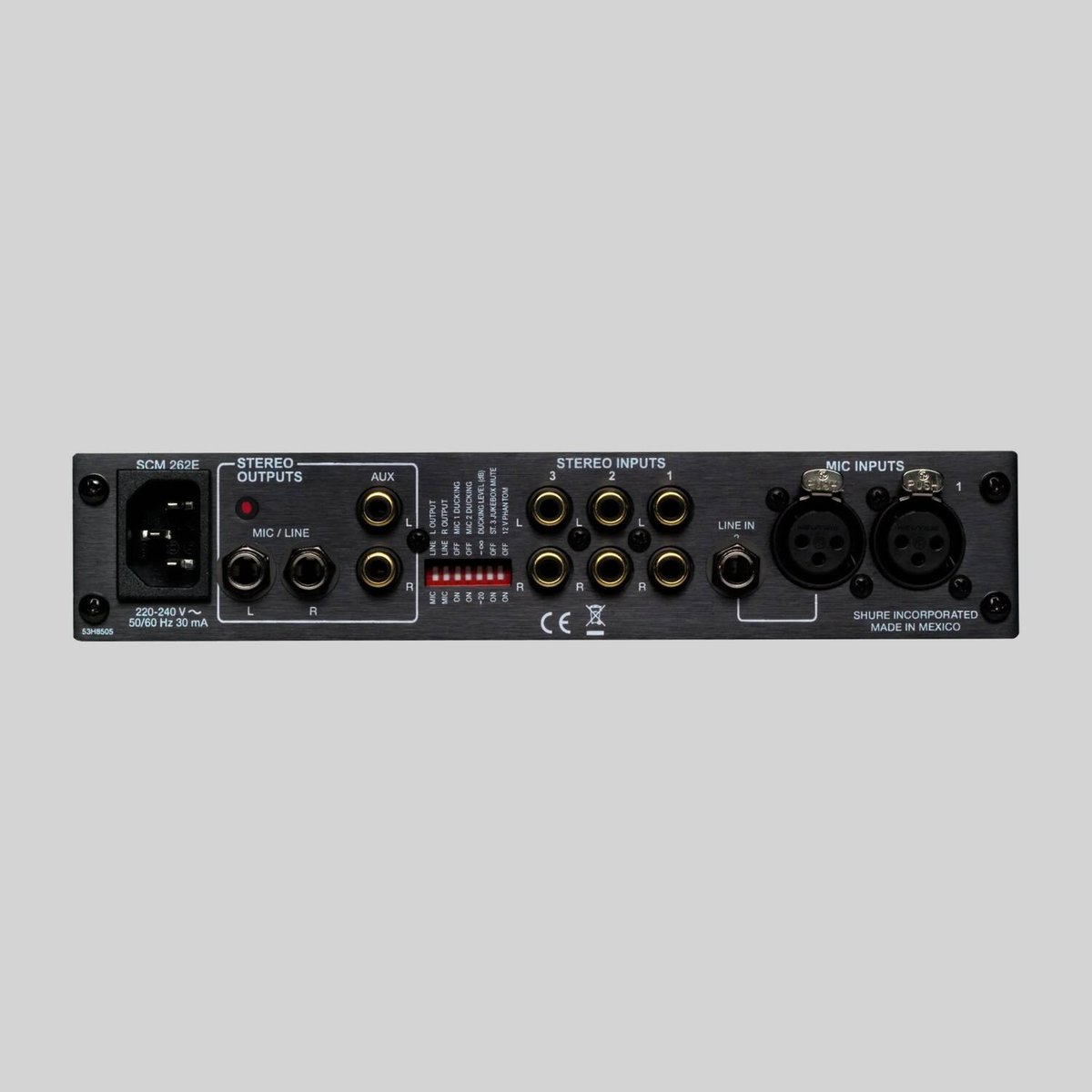

The SCM262 is a compact stereo microphone mixer built for small installed systems that need a couple of live mics blended against background music. It carries two active-balanced XLR microphone inputs, one of which doubles as a 1/4-inch TRS line input, plus three stereo aux inputs on RCA connectors for music sources. Outputs cover both worlds: an unbalanced RCA stereo pair for a consumer amp and a balanced mic/line pair on 1/4-inch TRS for professional gear.
Its signature trick is automatic ducking: the mixer can drop the music whenever someone speaks into a mic, then bring it back up, which is exactly what a restaurant, health club, or classroom paging setup wants. A jukebox-mute function and DIP-switch presets let an installer tailor the behavior, 12 V phantom power feeds condenser mics, and the whole thing fits a single half-rack space with an internal power supply.
| Type | Stereo microphone / line mixer |
|---|---|
| Mic Inputs | 2 active-balanced XLR (one shared with 1/4\" TRS line) |
| Aux Inputs | 3 stereo (RCA) |
| Outputs | Unbalanced RCA stereo; balanced stereo mic/line (2x 1/4\" TRS) |
| Phantom Power | 12 V |
| Features | Defeatable ducking, jukebox mute, tone controls |
| Power | 100 - 120 Vac, 50/60 Hz, 60 mA |
| Dimensions | 1.72 x 8.60 x 6.37 in (half-rack) |
