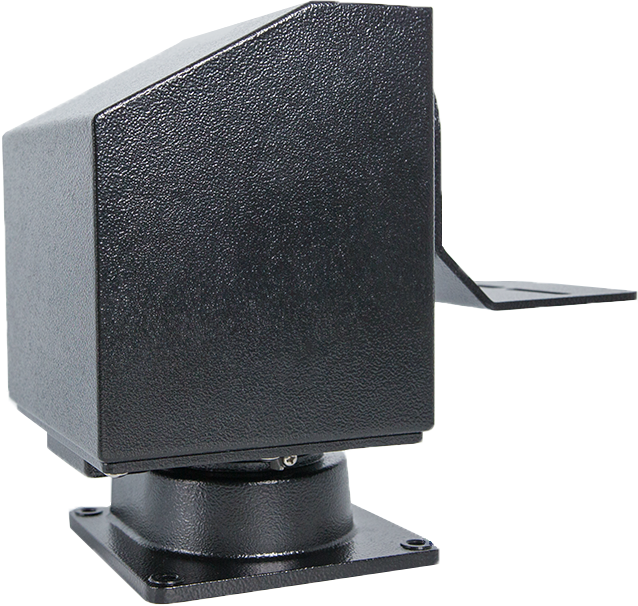

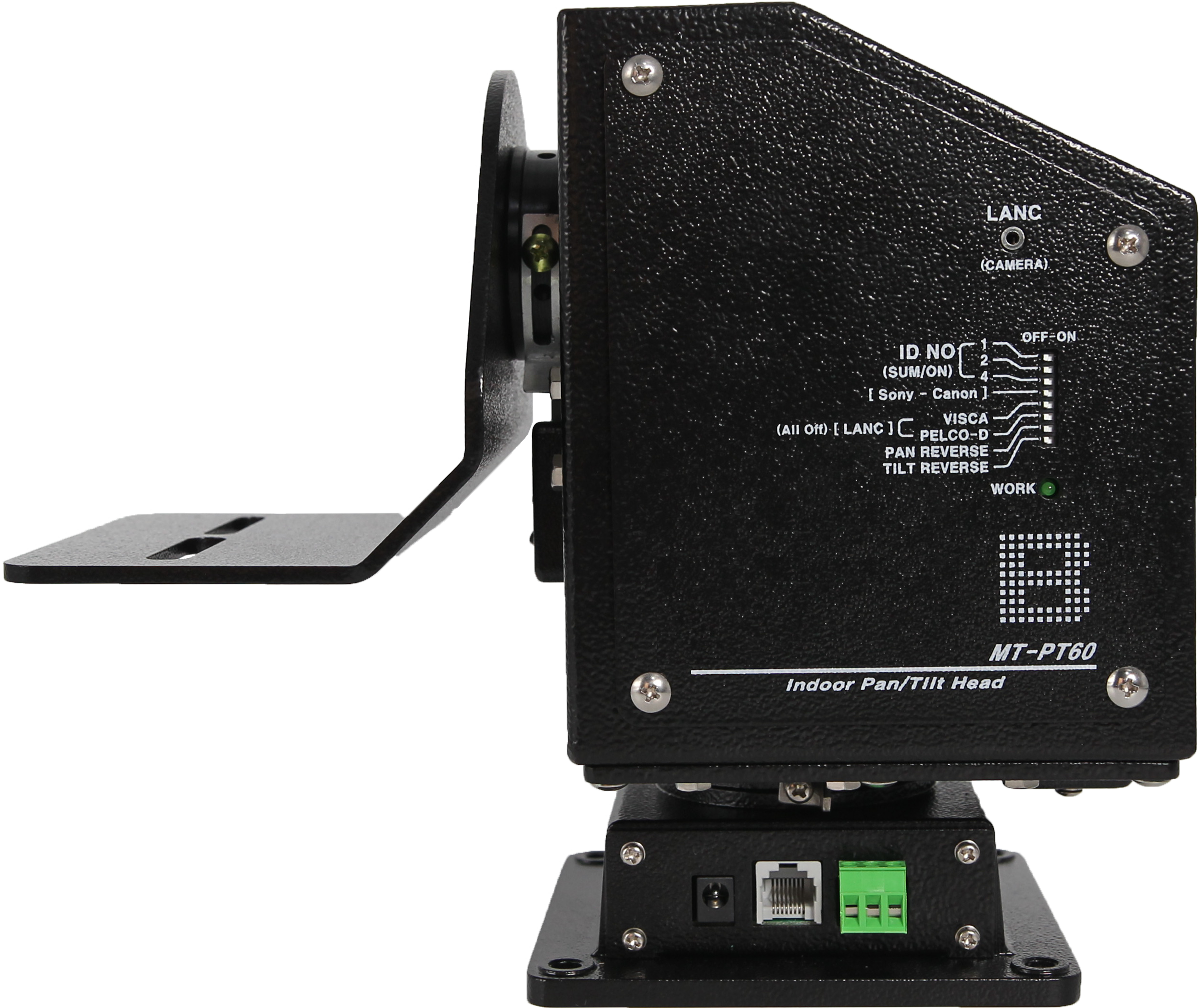

Salrayworks MT-PT60B Indoor Pan/Tilt Head A silent-operation pan/tilt head rated to 22 lb, mountable on a tripod

MT-PT60B is a robotic indoor pan/tilt head built for handheld cameras, supporting up to 22 lb (10 kg) on a tripod, wall, ceiling, or other fixed surface. Pan covers 0 to 350 degrees and tilt runs plus or minus 45 degrees, moving at three selectable speeds (slow, mid, fast) with anti-backlash precision gearing that keeps operation quiet.

Control runs over LANC for Sony, Canon, JVC, and Blackmagic Design cameras, or over RS-422 with Panasonic protocol, with VISCA and PELCO-D also supported. A single MT-TX85E or MT-TX90 controller can drive up to seven MT-PT60B heads, and remote range extends to roughly 1.3 miles for outdoor and campus installs.

Load CapacityUp to 22 lb (10 kg)
MountingTripod, wall, ceiling, or surface
Pan Range0 to 350 degrees
Tilt Range+/- 45 degrees
Speed3-step selectable (slow, mid, fast)
ControlLANC (Sony/Canon/JVC/Blackmagic), RS-422 Panasonic protocol, VISCA, PELCO-D
Multi-CameraUp to 7 heads per MT-TX85E/MT-TX90 controller
Remote RangeUp to 1.3 miles
Salrayworks MT-PT60B Robotic Pan/Tilt Head User's Guide
